Equipped With

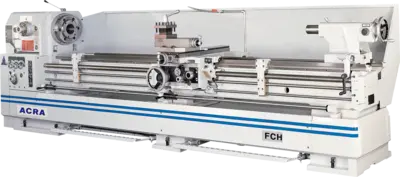

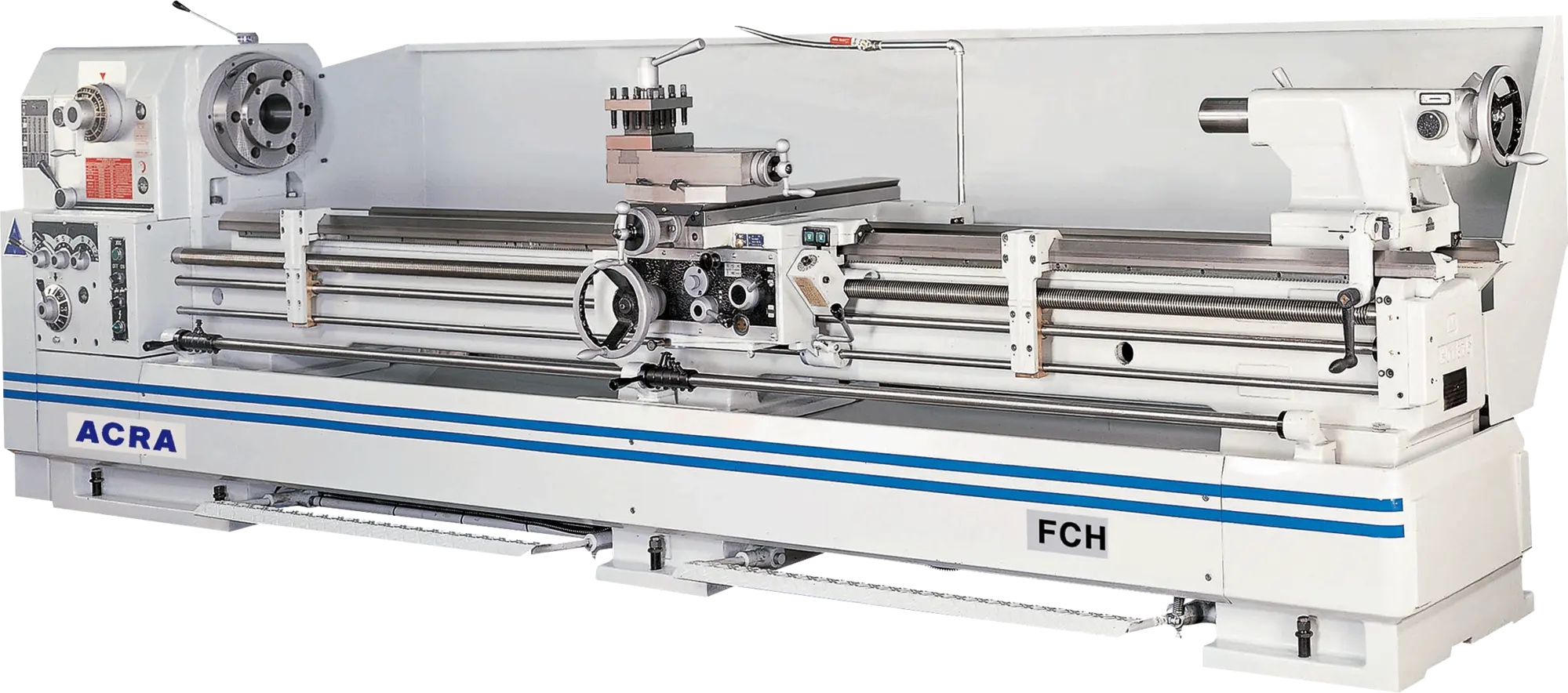

33" X 200" ACRA MODEL 33200FCH PRECISION GAP BED ENGINE LATHE
• Multi-Start threads indexing device.
• Forced lubrication system of Spindle is employed by a Pump.
• Drum type brake system for main motor connected to the pedal with a brake wire.
• Cross Slide is hardened and ground to prolong operational life.
• Spindle bore is 4-1/8″
• Spindle nose is D1-11
• Spindle is supported by three bearings.
• Rapid traverse for longitudinal
• Foot-operated braking system.
• Powerful and easy to operate Tailstock.
• Width bed is 560 mm (22.04”).
• Quill diameter is 100 mm(3.93”).
• Hardened and precisely ground.
• Tailstock body can easy to move by special design.
Specifications:
Capacity: 33″/46″ x 200″
Swing Over Bed: 33-7/8″
Swing Over Cross Slide: 24″
Swing In Gap: 46-1/16″
Distance Between Centers: 200″
Bed Width: 22″
Spindle Nose: D1-11
Spindle Bore: 4-1/8″
Taper of Spindle: MT NO.5
Spindle Speeds – Steps: 16
Spindle Speeds – Range: 12 ~ 1,200 RPM
Cross Slide Travel: 21-1/4″
Compound Slide Travel: 8.66″
Inch Threads: 2 ~ 28 TPI
Metric Threads: 1 ~ 14 mm
Longitudinal Feeds: 0.0024″~0.0337″
Cross Feeds: 1/2 Half of Longitudinal Feeds
Tailstock:
Quill Diameter: 3.9″
Quill Travel: 11″
Quill Taper: MT NO.6
Spindle Drive Motor: 20 HP x 4P
Voltage: 220V/440V AC /3 PH
Weight 19,254 lbs
Dimensions 283 × 60 × 55 in
Standard Equipment:
• Dead Center MT#6
• Rapid Traverse
• Coolant System
• Work Light
• Tool box and Service kits
• Leveling screws and Foundation pads
• Multi-position length stop
