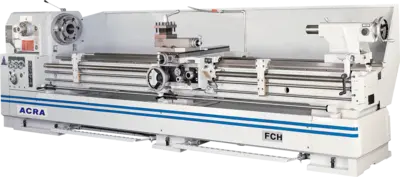

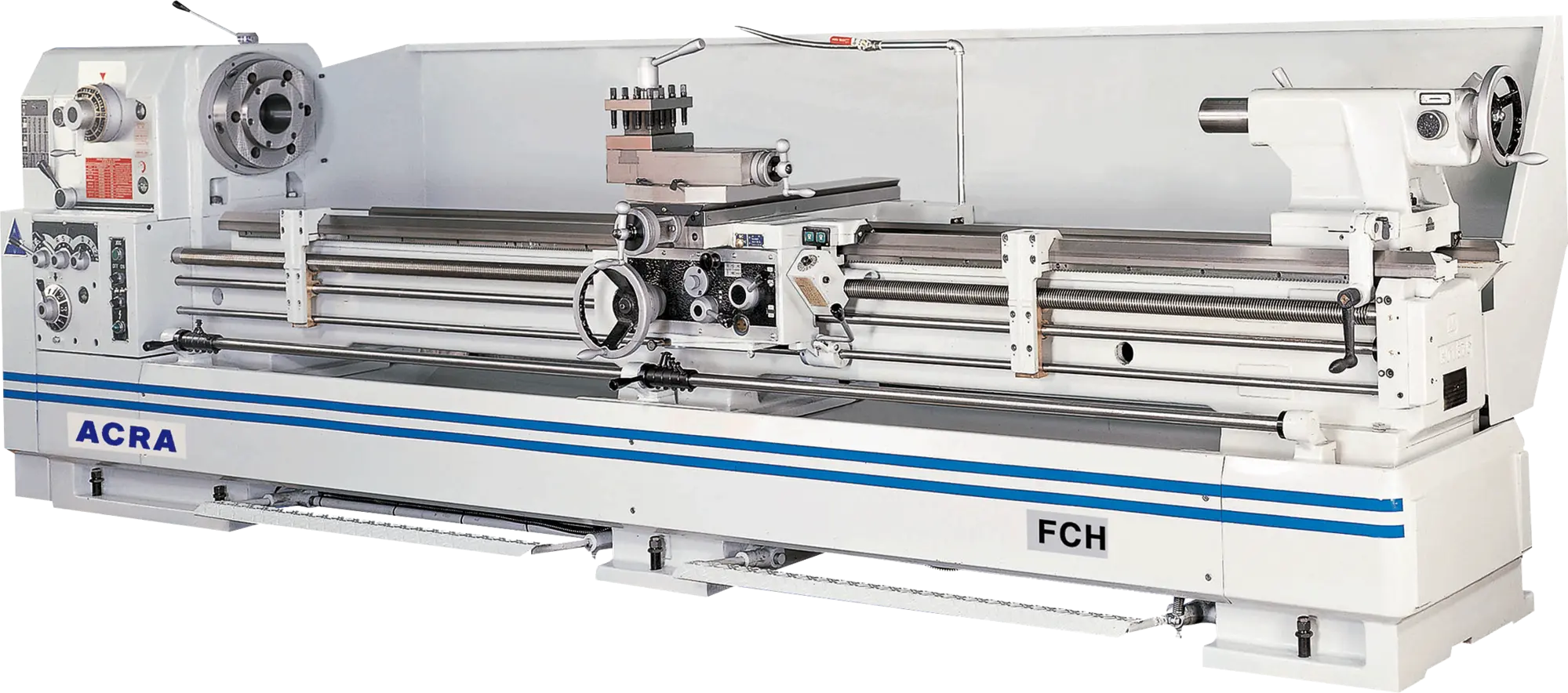

40" X 280" ACRA MODEL 40280FCH PRECISION GAP BED ENGINE LATHE
• Multi-Start threads indexing device.
• Forced lubrication system of Spindle is employed by a Pump.
• Drum type brake system for main motor connected to the pedal with a brake wire.
• Cross Slide is hardened and ground to prolong operational life.
• Spindle bore is 4-1/8″
• Spindle nose is D1-11
• Spindle is supported by three bearings.
• Rapid traverse for longitudinal
• Foot-operated braking system.
• Powerful and easy to operate Tailstock.
• Width bed is 560 mm (22.04”).
• Quill diameter is 100 mm(3.93”).
• Hardened and precisely ground.
• Tailstock body can easy to move by special design.
Specifications:
Capacity: 40″/52″ x 280″
Swing Over Bed: 40-3/16″
Swing Over Cross Slide: 30-15/16″
Swing In Gap: 52-3/8″
Distance Between Centers: 280″
Bed Width: 22″
Spindle Nose: D1-11
Spindle Bore: 4-1/8″
Taper of Spindle: MT NO.5
Spindle Speeds – Steps: 16
Spindle Speeds – Range: 12 ~ 1,200 RPM
Cross Slide Travel: 21-1/4″
Compound Slide Travel: 8-5/8″
Inch Threads: 2 ~ 28 TPI
Metric Threads: 1 ~ 14 mm
Longitudinal Feeds: 0.0024″~0.0337″
Cross Feeds: 1/2 Half of Longitudinal Feeds
Tailstock:
Quill Diameter: 3-13/16″
Quill Travel: 11″
Quill Taper: MT NO.6
Spindle Drive Motor: 20 HP x 4P
Voltage: 220V/440V AC /3 PH
Weight 27,210 lbs
Dimensions 362 × 60 × 55 in
Standard Equipment:
• Dead center MT#6
• Rapid traverse
• Coolant system
• Work light
• Tool box and Service kits
• Leveling screws and Foundation pads
• Multi-position length stop
