Equipped With

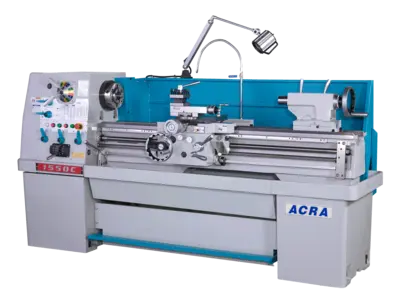

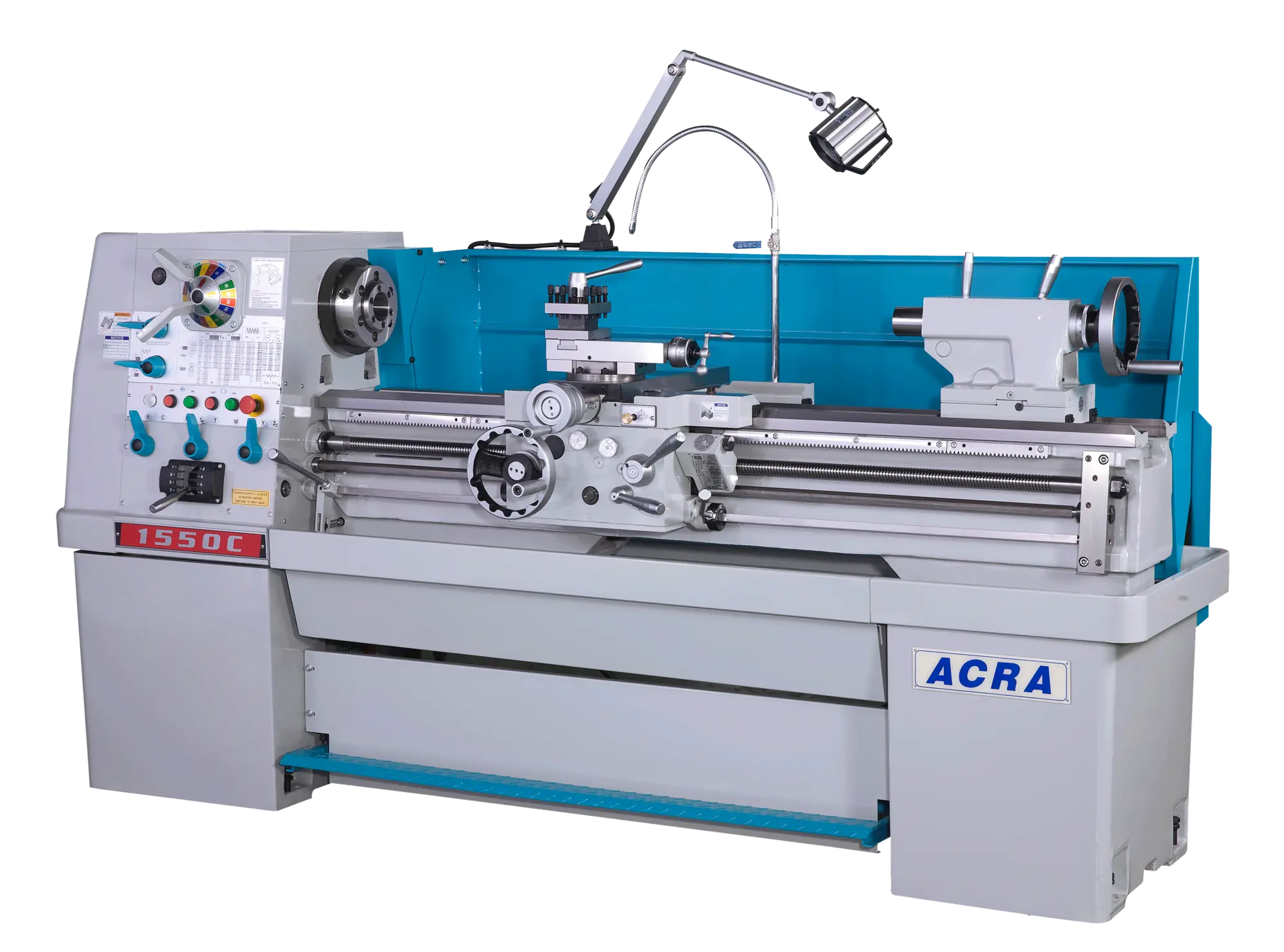

15" X 15" ACRA MODEL 1550C PRECISION GAP BED ENGINE LATHE WITH CLUTCH
Bed:
• BASE ONE PIECE CASTING.
• MEEHANTE CASTING, VIBRATION STRESS RELIEVED.
• INDUCTION HARDENED AND PRECISION GROUND BEDWAYS PRECISION HAND SCRAPED REMOVABLE GAP.
• FOOT BRAKE.
• TURCITE B COATING BETWEEN THE BED AND CARRIAGE.
Universal Gear Box:
• OIL BATH LUBRICATION.
• HEAT TREATED PRECISION GROUND GEARS.
• INCH, METRIC, MODULE AND DIAMETRICAL THREADS.
Apron and Saddle:
• AUTOMATIC FEED AND THREADING, FULLY INTERLOCKED.
• SADDLE AND TOP SLIDE LOCKING SYSTEM.
• FORWARD-OFF-REVERSE LEVER.
• 4 WAY TOOL POST.
• T-SLOT COMPOUND.
Spindle:
• SUPPORTED BY 2 PRECISION TAPER ROLLER BEARINGS AND ONE BALL BEARING.
• DYNAMICALLY BALANCED, HARDENED AND PRECISION GROUND.
Headstock:
• FORWARD REVERSING CLUTCH.
• ALL GEARS CHROMIUM MOLYBDENUM, HEAT TREATED AND PRECISION GROUND.
Specifications:
Capacity: 15″/24″ x 50″
Swing Over Bed: 15-1/4″
Swing Over Cross Slide: 9-3/8″
Swing In Gap: 24″
Distance Between Centers: 50″
Bed Width: 11″
Spindle Nose: D1-6
Spindle Bore: 2-3/16″
Taper of Spindle: MT NO.5
Spindle Speeds – Steps: 16 step
Spindle Speeds – Range: 25 ~ 2,000 RPM
Cross Slide Travel: 9-1/4″
Compound Slide Travel: 4-3/4″
Inch Threads: 2~72 TPI
Metric Threads: 0.2 ~ 14 mm
Longitudinal Feeds: 0.002 ~ 0.067″/rev
Cross Feeds: 0.001 ~ 0.0375″/rev
Tailstock:
Quill Diameter: 2-5/16″
Quill Travel: 5″
Quill Taper: MT NO.4
Spindle Drive Motor: 7-1/2 HP
Voltage: 230V/460V AC / 3 PH
Weight 3750 lbs
Dimensions 96 × 50 × 54 in
Standard Equipment:
8″ 3-Jaw Chuck
10″ 4-Jaw Chuck
Full Length Splash Guard
Steady Rest/Follow Rest
Coolant System
Foot Brake
Work Lamp
Gap Bed
4 position square tool post
Tool box with tools
