Equipped With

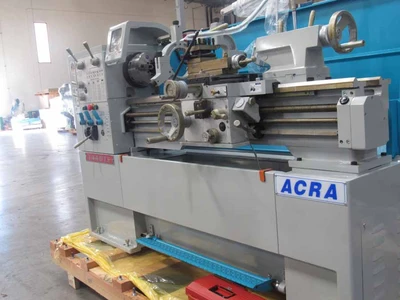

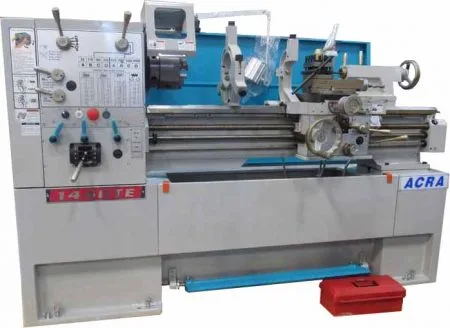

14" X 40" ACRA MODEL 1440TE PRECISION GAP BED ENGINE LATHE (8 SPEED)
Bed & Stand:
One Piece Cast Iron Floor Stand With Foot Brake
Front Removable Chip Tray Floor Stand Or Rear Chip Floor Stand Selected
Bed Width (10-1/4″), Bed Meehanite Casting, Vibration Stress Relieved
Induction hardened And Precision Ground Bed Ways
Precision Hand Scraped Removable Gap Bed

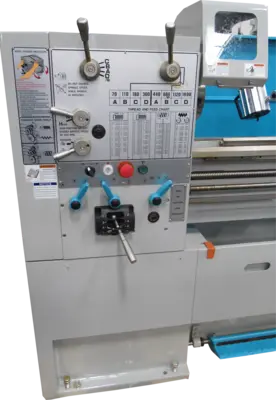

Headstock:
Dynamic Balanced Spindle
Spindle Is Supported By 3 Points Precision Bearings-2 Taper Roller And 1 Ball Bearing
Housing Are Properly Stabilized & Deflection Free
All Gears & Shafts Are Made By Chromium Molybdenum Steel With Segmentation And Precision Ground
EVS Models Forced Lubrication System
Nylon Safety Gears In End Train
Spindle:
Machined From Forged Alloy Steel, Hardened Ground & Dynamically Balance
Three Point Support By High Grade Precision Machine Tool Taper Roller & Ball Bearings
Universal Gear Box:
Induction Hardened And Ground Gears And Shafts
Wide Threads Cutting Capacity For Imperial, Metric, Module Pitch And Diametrical Pitch
Apron:
Right Hand Side Or Left-Hand Size Apron. Hand-Wheel Available As Requested
Integrated Automatic Device For Longitudinal & Cross Feeds, Forward And Reverse Feeds

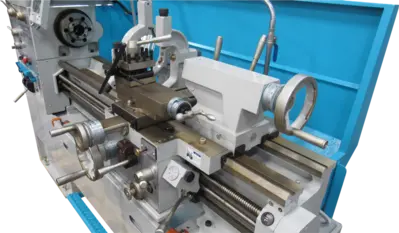

Carriage & Slide:
Anti-Float Design, Backlash Eliminator Fitted In Cross Slide Nut
Safety Clutches At Feed Shaft Lever
Dual Reading Dials
One Shot Lubrication For Carriage And Tops Slide
Specifications:
Capacity: 14″/21″ x 40″
Swing Over Bed: 14-3/16″
Swing Over Cross Slide: 8-3/8″
Swing In Gap: 21″
Distance Between Centers: 40”
Bed Width: 10-1/4″
Spindle Nose: D1-6
Spindle Bore: 2-1/16″
Taper of Spindle: MT NO.6
Spindle Speeds: (8 Speeds)
Spindle Speeds – Range: 70 ~ 1,800 RPM
Cross Slide Travel: 8-11/16″
Compound Slide Travel: 5-1/2″
Inch Threads: 2 ~ 72 TPI
Metric Threads: 0.2 ~ 14 mm
Longitudinal Feeds: 0.002 ~ 0.067″/rev
Cross Feeds: 0.001 ~ 0.034″/rev
Tailstock:
Quill Diameter: 2″
Quill Travel: 6″
Quill Taper: MT NO.4
Spindle Drive Motor: 5 HP
Voltage: 230/460V AC / 3 PH
Weight 3600 lbs
Dimensions 89 × 42 × 58 in
Standard Equipment:
8″ 3-Jaw Chuck
10″ 4-Jaw Chuck
Steady/Follow Rest
Halogen Light
Coolant System
4 Way Tool Post
Full Length Splash Guard
Chuck Guard
