Equipped With

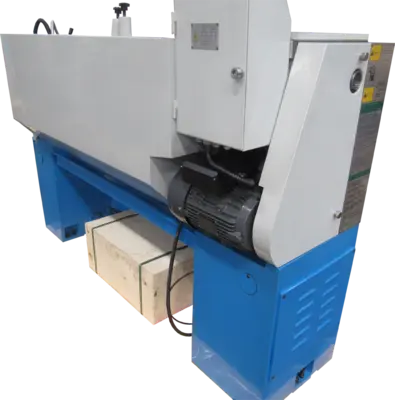

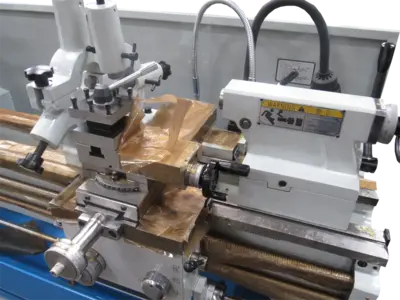

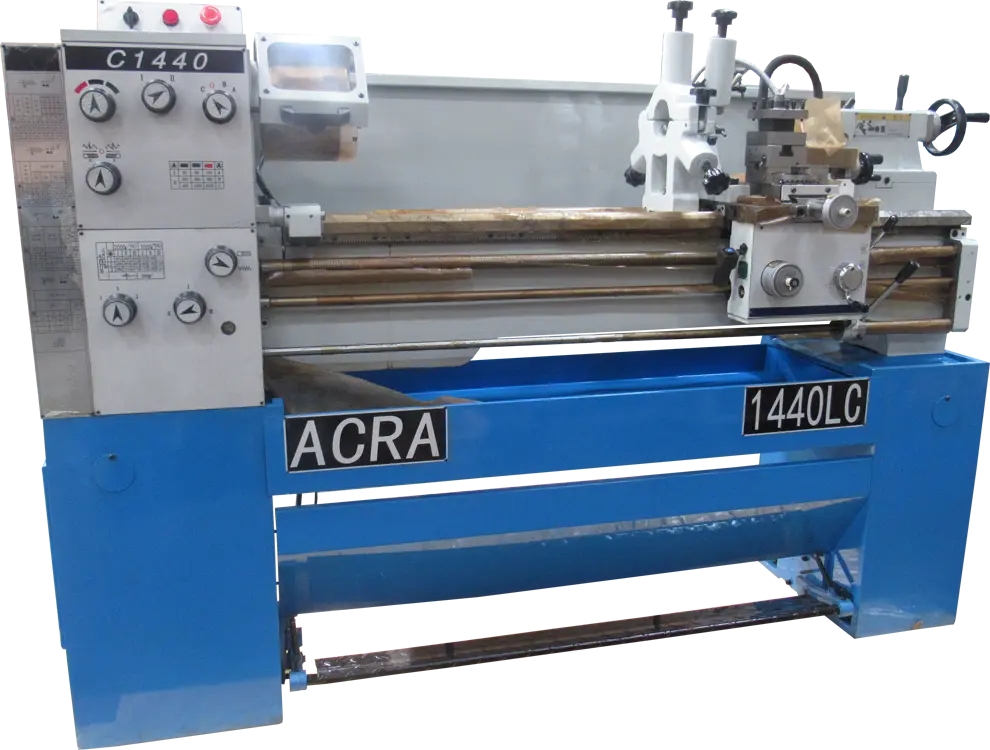

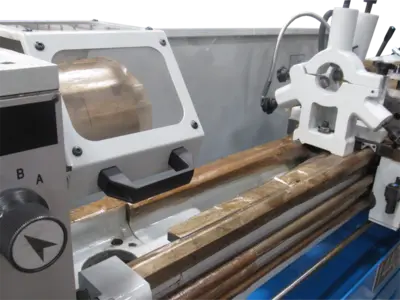

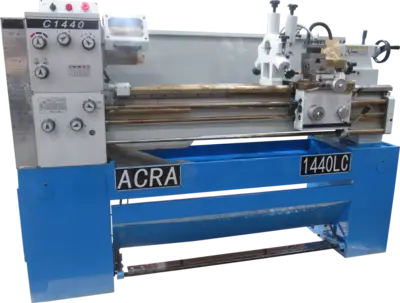

14" X 40" ACRA MODEL 1440LC PRECISION GAP BED ENGINE LATHE
• Electromagnetic Brake.
• Rigid and High Precision Spindle.
• Lubrication throughout the Spindle.
• 220V AC ~ 1 PH, 3 Horsepower
Specifications:
Overall Capacity: 14″/19″ x 40″
Swing Over Bed: 14″
Swing Over Cross Slide: 7-4/5″
Swing in Gap: 19″
Length of Saddle before Faceplate: 6-5/16″
Hole Thru Spindle: 1-1/2″
Spindle Nose: D1-5
Spindle Speeds and Steps: 60-2,000 RPM (9 Steps)
Metric Threads(20): 0.25 ~ 9mm
Inch Threads: 2~38mm (32)/ 74~4mm (33)
Module Thread Range: 0.5 ~ 9 (17)
Longitudinal Feed Range: 0.03-0.423 mm/r
Cross Feed Range: 0.015-0.21 mm/r
Horsepower: 3 HP
Voltage: 220V AC ~ 1 PH
Weight 1750 lbs
Dimensions 89 × 46 × 63 in
Standard Equipment
• 6″ 3-Jaw Chuck
• 8″ 4-Jaw Chuck
• Steady/Follow Rest
• Halogen Light
• Coolant System
• Chuck Guard
• 4 Way Tool Holder
• Full Length Splash Guard
• Foot Brake
