Equipped With

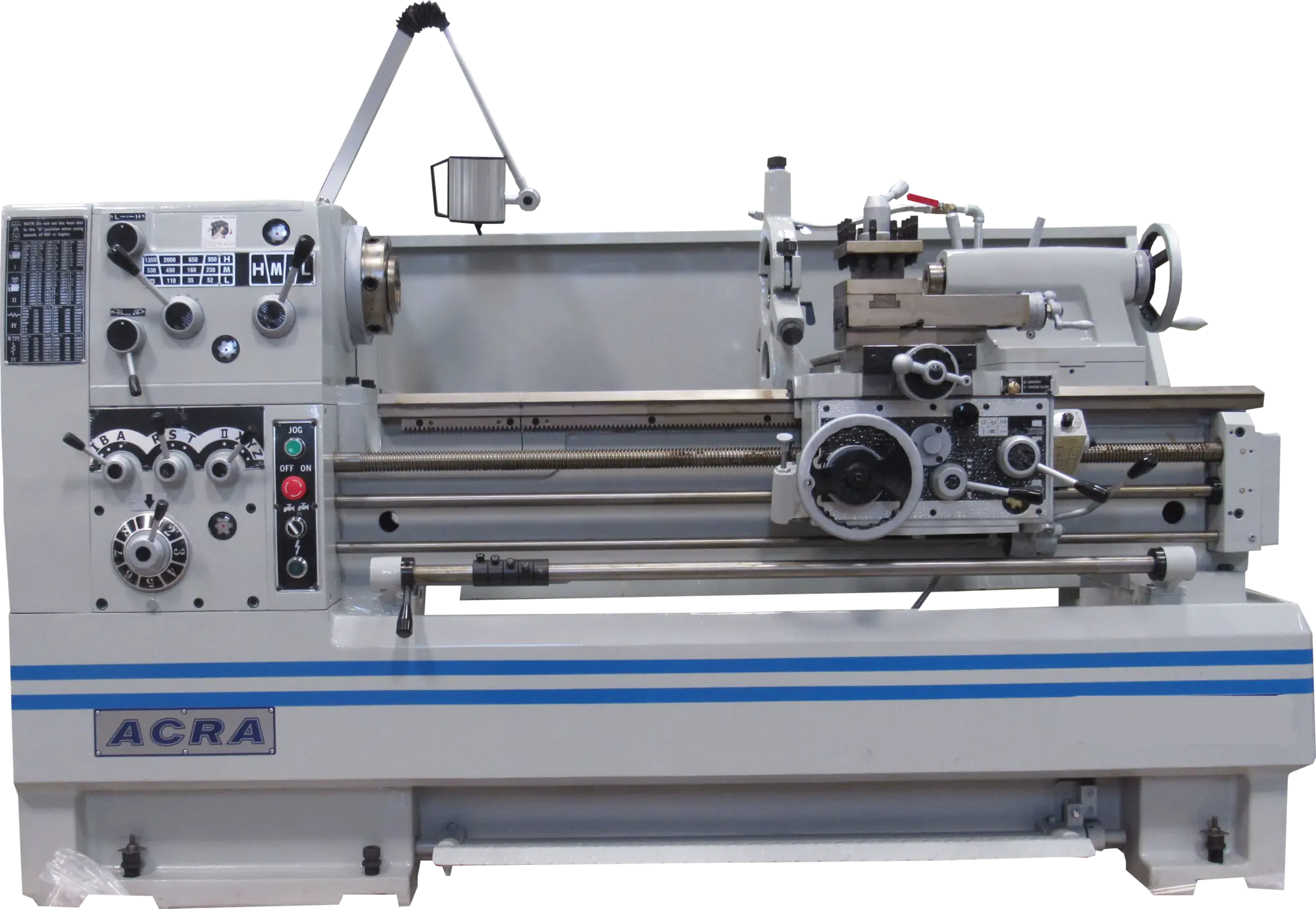

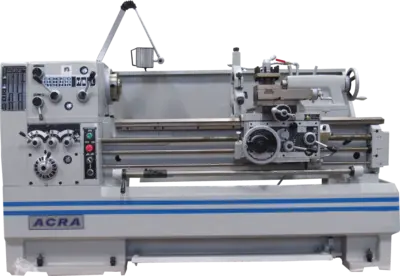

17" X 67" ACRA MODEL 1767ACH PRECISION GAP BED ENGINE LATHE:
Spindle:
• Supported By 3 Precision P-Grade Taper Roller Bearings
• Dynamically Balanced, Hardened, And Precision Ground
• D1-6 Spindle Nose
• Spindle Bore 2-1/4″
Universal Gear Box:
• Oil Bath Lubrication
• Heat-Treated Gears
• Inch/Metric/Module/Diametrical Threads
• Output Shaft Is Designed With Safety Pin
Head Stock:
• All Gears Made By Chromium Molybdenum Steel
and Segmentation Treated And Precision Ground
• Forced Lubrication System
Tailstock:
• Quill made By Chromium Molybdenum Steel
with Segmentation And Precision Ground
• Tailstock Spindle 2-3/8″ And Spindle Travel 6″
Specifications;
Capacity: 17″/24″ x 67″
Swing Over Bed: 17″
Swing Over Cross Slide: 10-1/2″
Swing In Gap: 24″
Distance Between Centers 67″
Bed Width: 12″
Spindle Nose: D1-6
Spindle Bore: 2-1/4″
Taper of Spindle: MT NO.5
Spindle Speeds – Steps: 12 step
Spindle Speeds – Range: 35 ~ 2,000 RPM
Cross Slide Travel: 6-1/2″
Compound Slide Travel: 4″

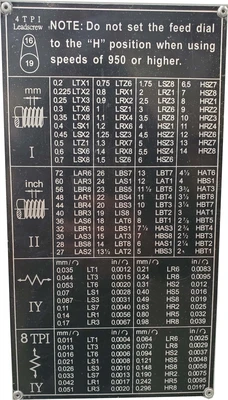

Inch Threads: 2~72 TPI
Metric Threads: 0.2 ~ 14 mm
Longitudinal Feeds: 0.0012 ~ 0.039″/rev
Cross Feeds: 0.0004 ~ 0.0117″/rev
Tailstock:
Quill Diameter: 2-3/8″
Quill Travel: 6″
Quill Taper: MT NO.4
Power:
Spindle Drive Motor: 7.5 HP
Voltage: 230/460V AC /3 PH
Weight 4750 lbs
Dimensions 115 × 42 × 54 in
Standard Equipment:
10″ 3-Jaw Chuck
12″ 4-Jaw Chuck
Steady Rest
Full Length Splash Guard
Coolant System
4 Way Tool Holder
Foot Brake
Halogen Work Lamp
