NEW ACRA FK-S12016

Equipped With

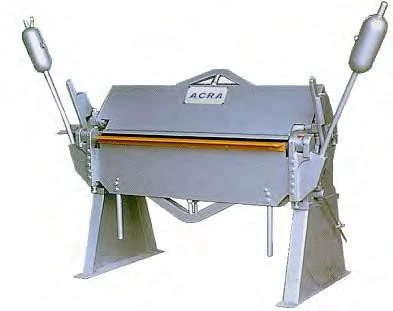

16 GA. X 120″ ACRA MODEL FK-S12016 HEAVY DUTY MANUAL (APRON LEAF) FLOOR TYPE BRAKE
• Built of Heavy all welded construction for maximum strength and minimum deflection.
• Built to be long lasting and for accurate bending and forming operations.
• The leveling screw and lock nuts on the pedestals, jack screw, shims, and upper leaf provides numerous adjustments.
• Removable Apron is supported by large pins in free floating bearings, and the Upper Leaf adjustment screws feature METALEX exclusive roller type bearings to prevent left creep.
• Cast steel handle, Heavy Counter Weights, and an apron stop rod compliment the many other features of this Heavy Duty Brake.
Specifications:
Capacity:                                16 Ga. X 120”
Mild Steel:                              16 Ga.
Stainless Steel:                        20 Ga.
Max. Bending Length:            120”
Max. Lift of Bend:                    2-1/4″
Max. Depth of Box:                 4-1/4″
Minimum Reverse Bend:         1/4″
Minimum Flange:                    2″
Weight                                    3432 lbs
Standard Equipment:
Removable Bottom Bar
Insert Bar
2 ea. Counter Weights
Stop Gauge
Adjustment Handle
Angle Bar
