NEW ACRA FK-S4812

Equipped With

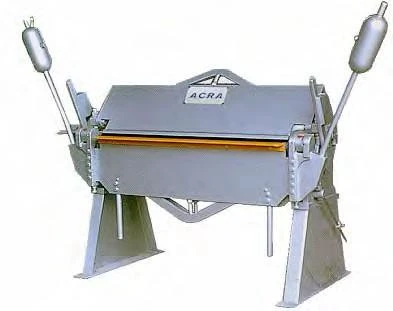

12 GA. X 48” ACRA MODEL FK-S4812 HEAVY DUTY MANUAL (APRON LEAF) FLOOR TYPE BRAKE
• Built of Heavy all welded construction for maximum strength and minimum deflection.
• Built to be long lasting and for accurate bending and forming operations.
• The leveling screw and lock nuts on the pedestals, jack screw, shims, and upper leaf provides numerous adjustments.
• Removable Apron is supported by large pins in free floating bearings, and the Upper Leaf adjustment screws feature METALEX exclusive roller type bearings to prevent left creep.
• Cast steel handle, Heavy Counter Weights, and an apron stop rod compliment the many other features of this Heavy Duty Brake.
Specifications:
Capacity:                                12 Ga. X 48”
Mild Steel :                             12 Ga.
Stainless Steel:                       16 Ga.
Max. Bending Length:            48”
Max. Lift of Bend:                   1-7/8″
Max. Depth of Box:                3-1/4″
Minimum Reverse Bend:        1/4″
Minimum Flange:                   1-1/2″
Weight                                   1484 lbs
Dimensions                             73 × 31 × 41 in
Standard Equipment:
Removable Bottom Bar
Insert Bar
2 ea. Counter Weights
Stop Gauge
Adjustment Handle
Angle Bar
