NEW ACRA FK-S9618

Equipped With

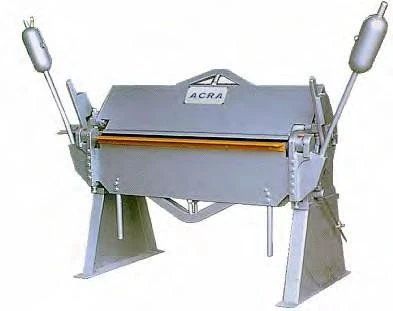

18 GA. X 96” ACRA MODEL FK-S9618 HEAVY DUTY MANUAL (APRON LEAF) FLOOR TYPE BRAKE
• Built of Heavy all welded construction for maximum strength and minimum deflection.
• Built to be long lasting and for accurate bending and forming operations.
• The leveling screw and lock nuts on the pedestals, jack screw, shims, and upper leaf provides numerous adjustments.
• Removable Apron is supported by large pins in free floating bearings, and the Upper Leaf adjustment screws feature METALEX exclusive roller type bearings to prevent left creep.
• Cast steel handle, Heavy Counter Weights, and an apron stop rod compliment the many other features of this Heavy Duty Brake.
Specifications:
Capacity:                              18 Ga. X 96”
Mild Steel :                           18 Ga.
Stainless Steel:                      22 Ga.
Max. Bending Length:          96”
Max. Lift of Bend:                 2-1/4″
Max. Depth of Box:              4-1/4″
Minimum Reverse Bend:      1/4″
Minimum Flange:                 2″
Weight                                 1870 lbs
Standard Equipment:
Removable Bottom Bar
Insert Bar
2 ea. Counter Weights
Stop Gauge
Adjustment Handle
Angle Bar
