Equipped With
FPK 4.2
FPK 6.2
Working Area
Table dimensions
15x33 in
20x37 in
Vertical table
10x35 in
12x49 in
Table load capacity (max.)
550 lbs
660 lbs
Slots (number/width/spacing)
0.2x0.55x2.48 in
0.28x0.55x2.48 in
T-slots, vertical table (number x width x spacing)
0.12x0.55x2.48 in
Travels
Travel X-axis
16.5 in
23.6 in
Travel Y-axis
9 in
20 in
Travel Z-axis
15 in
16 in
Vertical Milling Spindle
Travel pinole
4 in
Spindle center - column (min.)
11 in
6 in
Spindle center - column (max.)
19 in
26 in
Rapid Feed
Rapid Feed X-axis
23.62 in/min
Rapid Feed Y-axis
23.62 in/min
Rapid Feed Z-axis
23.62 in/min
Feed
Work feed X-axis
1 - 47 in/min
1 - 24 in/min
Work feed Y-axis
1 - 47 in/min
1 - 24 in/min
Work feed Z-axis
1 - 47 in/min
1 - 24 in/min
Horizontal Milling Spindle / Vertical Milling Spindle
Speed range
(12) 50 - 2,600 rpm
(18) 90 - 3,200 rpm
Spindle mount
ISO 40
Drive Capacity
Motor rating main drive
3 Hp
5 Hp
Motor rating coolant pump
0.1 Hp
Measures and Weights
Overall dimensions (length x width x height)
48x52x71 in
60x71x77 in
Weight
2,596 lbs
3,190 lbs
Machine column made of premium cast-iron, ensures maximum dynamic rigidity and constant precision

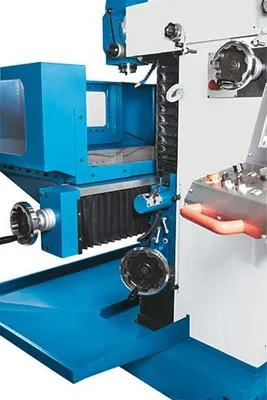

The FPK 6 features rigid box ways in the Z-axis, while X- and Y-axes are equipped with micro-adjustable dovetail guides
All guides are hardened and precision-ground
Precise preloaded ball screws on all axes

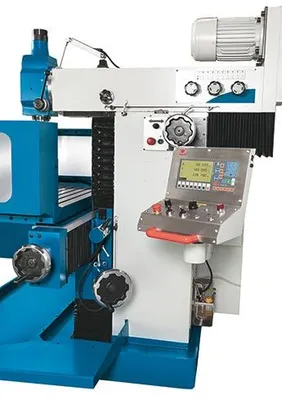

Ergonomically arranged controls and a swivelling control panel plus standard digital position indicator for maximum operator comfort
Both machines feature rigid outer arbor supports for horizontal milling
Large work tables and long travels of this compact machine allow a wide range of applications
Automatic feed on all axes, infinitely variable, with fast rapid feed
The vertical cutter head swivels, and the quill can be moved manually
The fine-tuned main spindle drive offers a wide speed range with high torque
An optional air-driven tool drawing system allows quick tool changes
Extensive accessory package included
Central lubrication system is standard equipment
The price includes a fully assembled 3-axis position indicator
3-axis position indicator, X.pos 3.1
Completely assembled, ready for operation and exact measurements
Lower error rate
Increased productivity
More accuracy
Resulting in valuable time savings
For increased productivity
Operator-specific features
Easy to read display
Resolution: 0.0004 / 0.0002"
Convenient keyboard layout
Axis position is maintained when display is turned off
Default coordinates
Hole circle pattern calculation
Calculator function
Radius / diameter toggle
Mm/inch conversion
Easy expansion and maintenance-free operation
Storage for 99 tools
3-axis position indicator
central lubrication
reducing sleeves MT1, MT2, MT3
adapter ISO 40 / MT 3
cutter arbor, long, 1.06 inch
preloaded ball screws
stainless steel guideway cover Z- axis
chip tray
coolant system
LED work lamp
pull rod (M16) for horizontal / vertical
Level pads and bolts
operating tools
operator manual
