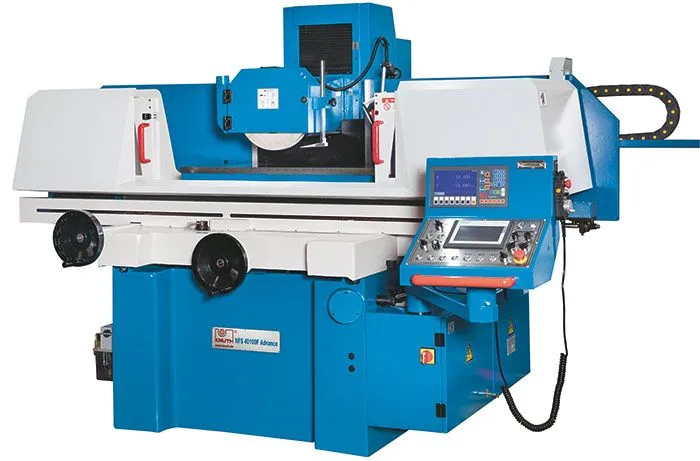

Equipped With
HFS 2550 F Advance
HFS 3063 F Advance
HFS 4080 F Advance
HFS 30100 F Advance
HFS 40100 F Advance
Working Area
Work piece weight (max.)
396 lbs
594 lbs
1,100 lbs
880 lbs
1,320 lbs
Spindle nose-to-table surface distance
18 in
23 in
23 in
23 in
23 in
Table dimensions
20x10 in
25x12 in
32x16 in
40x12 in
40x16 in
Dimensions Magnetic clamping plate
20x10 in
24x12 in
31x16 in
39x12 in
39x16 in
Scale ring division Y-axis
0.0002 in
Scale ring division Z-axis
0.00079 in
Auto. transverse feed Z-axis
0 - 0.31 in
Speed
2,850 rpm
1,450 rpm
1,450 rpm
1,450 rpm
1,450 rpm
Auto. vertical feed
0.0002 - 0.00197 in
Travels
Travel X-axis
22 in
30.1 in
35.8 in
44.5 in
44.5 in
Travel Y-axis
11 in
13 in
18 in
13 in
18 in
Feed
Hydr. feed X
22.89 - 75.21 fpm
Rapid feed Y-axis
19 in/min
Rapid feed Z-axis
39 in/min
Drive Capacity
Motor rating main drive
3 Hp
5.4 Hp
5.4 Hp
5.4 Hp
5.4 Hp
Motor rating hydraulic pump
3 Hp
Motor rating for Y-axis drive
0.7 Hp
Measures and Weights
Grinding wheels dimensions
8x1x1 in
14x2x5 in
14x2x5 in
14x2x5 in
14x2x5 in
Overall dimensions (length x width x height)
91x63x67 in
115x87x75 in
142x95x75 in
174x87x75 in
174x95x75 in
Weight
3,960 lbs
6,160 lbs
7,480 lbs
7,040 lbs
8,140 lbs

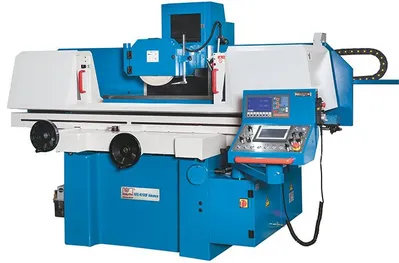

The cast-iron machine frame features superior rigidity and torsional strength, precision guideways and excellent machining quality
All guideways are lubricated reliably via a central lubrication system
The workspace is protected by an easily accessible enclosure
A powerful coolant pump is combined with a vacuum exhaust unit to clear grinding dust and aerosol during machining operations
Grinding spindle
Large grinding spindle, dynamically balanced, completely sealed with permanent lubrication
Preloaded precision-bearings ensure maximum grinding performance and high reliability over many production hours

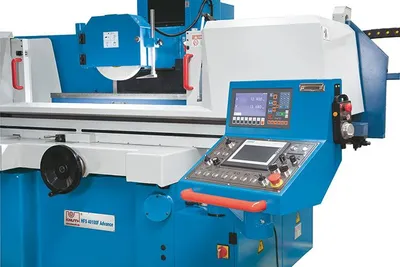

Programming
The high-quality preloaded ball screw and a powerful servo-motor ensure high precision and repeatability of positioning in the Y axis
The machine features an electronic hand-wheel for configuration tasks and manual movement of the grinding spindle
If set to Auto mode, the user-defined roughing and finishing parameters, number of spark-out strokes, and return to zero are automatically processed
Hydraulics
Superior quiet operation and low heat build-up ensure optimum work results
in continuous operations
Hydraulically operated linear table movement, infinitely variable, high consistency, and soft reversal of direction
The external hydraulics unit with oil cooler ensures perfect temperature stability
Magnetic clamping plate
Large magnetic chuck allows for torsion-free clamping and is included in standard equipment
The control unit is integrated into the electric system to simplify operation, allowing quick clamping and degaussing for maximum production efficiency
3-axis position indicator
electronic hand-wheel
grinding wheel flange
automatic central lubrication
workspace enclosure
coolant system and vacuum system
grinding wheel dresser
balancing station
balancing shaft
LED work lamp
magnetic clamping plate
adjustment screws
operating tools
degausser
siemens PLC with touchscreen
operator manual
