Equipped With
AHK H 15060 CNC
AHK H 20080 CNC
AHK H 26100 CNC
AHK H 30100 CNC
AHK H 30135 CNC

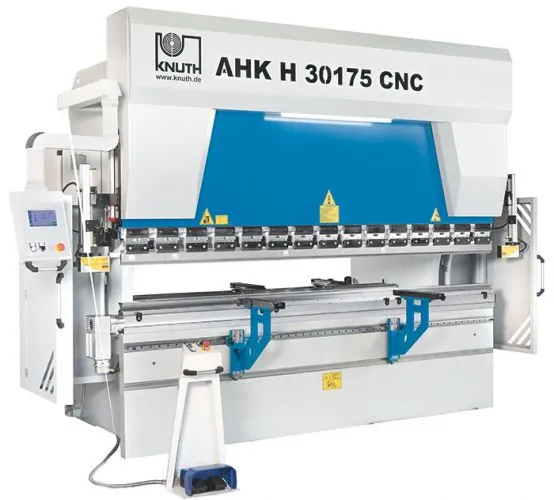

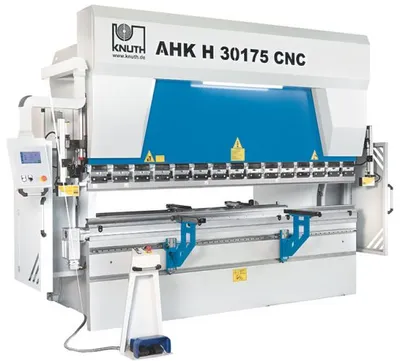

AHK H 30175 CNC
AHK H 30220 CNC
AHK H 30320 CNC
AHK H 37220 CNC
AHK H 40175 CNC
AHK H 40220 CNC
AHK H 40320 CNC
AHK H 40400 CNC
AHK H 60320 CNC
AHK H 30270 CNC
AHK H 40270 CNC
AHK H 60400 CNC
Working Area
Pressure force
66 t
88 t
110 t
110 t
148.5 t
192.5 t
242 t
352 t
242 t
192.5 t
242 t
352 t
440 t
352 t
297 t
297 t
440 t
Brake length
51 in
67 in
87 in
102 in
102 in
102 in
102 in
102 in
126 in
142 in
142 in
142 in
134 in
201 in
102 in
142 in
201 in
Throat
16 in
16 in
16 in
16 in
16 in
16 in
16 in
20 in
16 in
16 in
16 in
20 in
20 in
20 in
16 in
16 in
20 in
Stroke
10.4 in
10.4 in
10.4 in
10.4 in
10.4 in
10.4 in
10.4 in
14.4 in
10.4 in
10.4 in
10.4 in
14.4 in
14.4 in
14.4 in
10.4 in
10.4 in
14.4 in
Clear opening
19.09 in
19.09 in
19.09 in
19.09 in
19.09 in
19.09 in
19.09 in
23.03 in
19.09 in
19.09 in
19.09 in
23.03 in
23.82 in
23.03 in
19.09 in
19.09 in
23.82 in
Table width
4 in
4 in
4 in
4 in
4 in
4 in
4 in
6 in
4 in
4 in
4 in
6 in
6 in
6 in
4 in
4 in
6 in
Travels
Travel in X-axis
20 in
20 in
20 in
28 in
28 in
28 in
28 in
28 in
28 in
28 in
28 in
28 in
28 in
28 in
28 in
28 in
28 in
Feed
Bending speed
0.35 in/s
0.35 in/s
0.39 in/s
0.39 in/s
0.35 in/s
0.39 in/s
0.39 in/s
0.28 in/s
0.39 in/s
0.39 in/s
0.35 in/s
0.28 in/s
0.31 in/s
0.31 in/s
0.35 in/s
0.35 in/s
0.33 in/s
Rapid feed
4 in/s
4 in/s
4 in/s
4 in/s
4 in/s
5 in/s
4 in/s
4 in/s
4 in/s
5 in/s
4 in/s
4 in/s
3 in/s
4 in/s
5 in/s
5 in/s
3 in/s
Return speed
4.33 in/s
4.53 in/s
4.33 in/s
4.33 in/s
3.74 in/s
4.72 in/s
4.33 in/s
3.74 in/s
4.33 in/s
4.72 in/s
4.33 in/s
3.74 in/s
3.35 in/s
3.15 in/s
3.74 in/s
3.74 in/s
2.56 in/s
Drive Capacity
Motor rating main drive
10.1 Hp
10.1 Hp
14.8 Hp
14.8 Hp
20.1 Hp
24.8 Hp
29.5 Hp
40.2 Hp
29.5 Hp
24.8 Hp
29.5 Hp
40.2 Hp
49.6 Hp
40.2 Hp
29.5 Hp
29.5 Hp
49.6 Hp
Measures and Weights
Hydraulic tank volume
26 gal
26 gal
26 gal
26 gal
66 gal
66 gal
66 gal
92 gal
66 gal
66 gal
66 gal
92 gal
92 gal
92 gal
92 gal
92 gal
132 gal
Overall dimensions (length x width x height)
95x69x101 in
121x71x106 in
136x75x107 in
156x75x109 in
156x77x111 in
156x78x113 in
158x79x115 in
160x83x121 in
180x79x119 in
195x79x117 in
195x79x119 in
197x89x128 in
197x89x136 in
276x89x140 in
158x79x117 in
195x79x119 in
278x89x147 in
Weight
9,460 lbs
12,540 lbs
14,740 lbs
17,600 lbs
19,800 lbs
24,200 lbs
26,840 lbs
35,200 lbs
30,580 lbs
28,600 lbs
33,000 lbs
45,100 lbs
54,340 lbs
61,600 lbs
28,600 lbs
38,500 lbs
77,000 lbs
Machine Frame and Male Die
The machine frame is made of a high-precision, stress-relieved steel weldment
The machine frame has been machined on a state-of-the-art 5-axis milling machine in one single setup to ensure more precise bending and maximum reliability
All components subject to tensile loads have been carefully constructed and designed with large radii to eliminate the risk of welding cracks
Male die and table have been optimized to reduce deformations to the lowest minimum possible
The male die has been designed for optimum vertical load absorption by the guides, piston bearings and seals
All components were treated in a modern paint and drying system and feature two coats of paint, each coat with a minimum thickness of 60 micron
Work Area
A large throat, long stroke, and narrow table ensure plenty of free space to accommodate complex bending sequences
Crowning
All machines include a manual crowning system inside the table; a motorized crowning version is available as an option
The crowning provides a uniform distribution of bending forces to ensure precise bending angles across the full workpiece length
Hydraulics
Polished, hard chrome-plated pistons on both hydraulic cylinders feature superior 2 micron surface grades, ensuring a long seal life.
Cylinder bodies are forged from solid SAE 1040 material
Perfectly matched hydraulic components and measuring systems ensure exact synchronization of work cylinders
Back Gauge
The back gauge of a press brake is the most important factor for machining precision
The entire back gauge system is very robust and perfectly suited for rough production environments
Linear guides and large preloaded ball screws are mounted in a protective enclosure to ensure smooth operation even under the most difficult environmental conditions
Exact adjustment of back gauge finger height
Positioning of back gauge fingers on dual, smooth-running linear guides
Front Support Arms
Rigid linear guide and ball bearings for boom ensure maximum stability and easy positioning
Each support arm can be adjusted in height, is easy to handle and extremely sturdy
Bending Tools
Promecam (European) tool mounts accommodate an extensive selection of bending tools
All tools are hardened and ground, and allow precise setup
manual quick-action clamping system for tool mount shortens tool changing times
Safety and Productivity
Safety concept based on the latest CE standards
The manual AKAS Laser Safety System is known for excellent reliability and functionality without the limitations that are typical for light curtains
Weitere Maschinengrš§en sind auf Anfrage lieferbar.
Cybelec Touch 8 2D Steuerung fŸr 3 Achsen
X-axis back gauge with servo motor
manual lower table crowning
manual akas laser safety LC II M FMSC safety system
light barrier
2 front support arms
foot pedal with E-stop button
operator instructions
european type male die H = 3 inch
european type female die 4V H: 2 x 2 inch
2 height-adjustable back-gauge fingers
european tool mount
