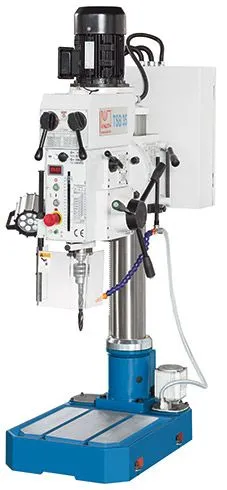

NEW KNUTH TSB

Equipped With

TSB 25
TSB 35
Working Area
Drilling capacity
0.98 in
1.38 in
Tapping capacity, steel
M 16
M 22
Foot set up area (length x width)
12x13 in
15x14 in
Vertical head travel
19 in
20 in
Spindle nose-to-foot distance
26 in
25 in
Throat
9 in
13 in
Column diameter
4 in
5 in
Headstock
Spindle speed
(6) 125 - 2,825 rpm
(12) 125 - 3,030 rpm
Spindle mount
3 MT
4 MT
Quill stroke
4 in
6 in
Drive Capacity
Motor rating main drive
1 Hp
1.6 Hp
Measures and Weights
Overall dimensions (length x width x height)
28x17x62 in
32x20x66 in
Weight
484 lbs
748 lbs
Feed
Quill feeds
(3) 0,1; 0,2; 0,3 in/R
High Power at a Low Price
Drilling capacity 1.4"
Throat 13"
Spindle nose-to-foot distance 25"
Spindle speed (12) 125-3030 rpm
Spindle mount MT 4
Rigid cast-iron construction
Height-adjustable machine head
6 or 12 speed levels
Rectangular table with T-slots and circumferential coolant groove
Automatic quill feed
Digital speed (rpm) display
Coolant system
Head swivels ± 45¡
Tapping feature
base
protective shield
tapping unit
LED work lamp
coolant system
drill chuck
operating tools
operator manual
