Equipped With
TubeTurn 200
TubeTurn 135
TubeTurn 225
Working Area
Workpiece length (max.)
51 in
Turning diameter over bed
25 in
Turning-¯ over support
14 in
14 in
15 in
Travels
Travel X-axis
13.4 in
Travel Z-axis
51 in
Headstock
Speed range
24 - 300 rpm
14 - 496 rpm
24 - 300 rpm
Spindle Torque (max.)
18,143 ft.lb.
16,992 ft.lb.
16,992 ft.lb.
Lathe chuck diameter
20 in
16 in
20 in
Spindle bore
8 in
5 in
9 in
Spindle bore in chuck
7.9 in
5.1 in
8.9 in
Rapid Feed
Rapid Feed X-axis
118.11 in/min
Rapid Feed Z-axis
157.48 in/min
Tool Head
Number of tool stations
4 positions
Tool shank dimensions
1.3x1.3 in
Tailstock
Tailstock taper
MT 5
Tailstock quill diameter
4 in
Tailstock quill stroke
9 in
8 in
9 in
Drive Capacity
Motor rating main drive
10.1 Hp
Measures and Weights
Overall dimensions (length x width x height)
145x58x55 in
145x58x55 in
145x58x56 in
Weight
9,218 lbs
9,020 lbs
9,381 lbs

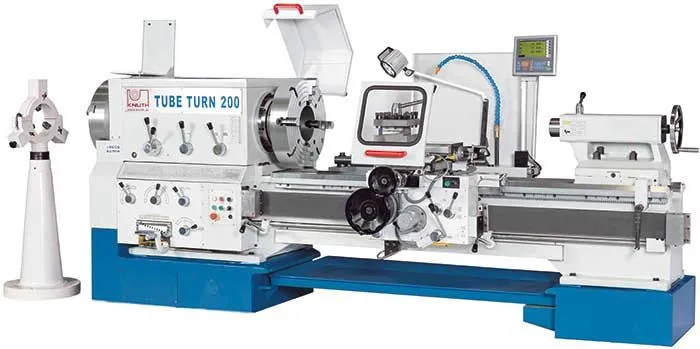

Heavy machine bed made of premium cast-iron with hardened and ground guideways

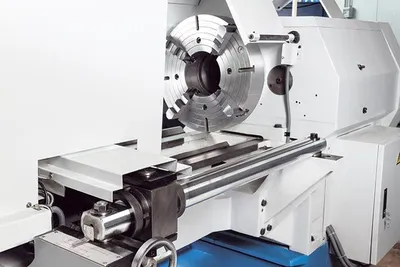

Massive headstock with high-precision spindle running in tapered roller bearings, and 2 lathe chuck mounts on both sides
Gears are hardened and ground
High torque at the working spindle ensures high chip removal rates when machining parts with large diameters
Powerful main drive motor with 10 hp power
Central, practical controls for feeds and thread leads
Wide spectrum of inch and metric threads
Heavy-duty 4-station tool holder
Coolant system is included
Taper turning unit with 20 in turning length
3-axis position indicator
More accuracy
Lower error rate
Increased productivity
Resulting in valuable time savings
For increased productivity
Easy to read display
Operator-specific features
Convenient keyboard layout
Resolution: 0.0004 / 0.0002"
Default coordinates
Axis position is maintained when display is turned off
Hole circle pattern calculation
Calculator function
Storage for 10 tools
Radius / diameter toggle
Mm/inch conversion
Easy expansion and maintenance-free operation
Display for top (Z0) and box way slide (Z1) both separate and in differential / cumulative mode for lathes
3-axis position indicator
4-station tool holder

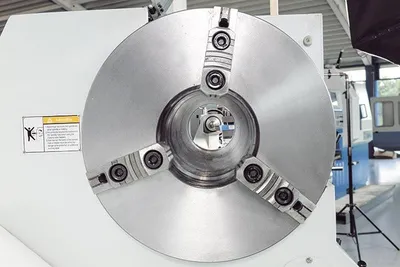

3-jaw chuck ¯ 19.5"
4-jaw face plate chuck ¯ 205Ó
taper turning unit
coolant system
operator manual
