Equipped With
KB 20 S
KB 32 SF
KB 20 SV
KB 32 SFV
Working Area
Drilling capacity
0.79 in
1.26 in
0.79 in
1.26 in
Tapping capacity (max.)
M 20
M 24
M 16
M 24
Table set up area
10x10 in
13x13 in
10x10 in
15x16 in
Spindle nose-to-table surface distance
14 in
32 in
14 in
32 in
Spindle nose-to-foot distance
27 in
49 in
27 in
49 in
Throat
9 in
10 in
9 in
10 in
Column diameter
3 in
4 in
3 in
4 in
Quill stroke
5 in
6 in
5 in
6 in
Headstock
Speed range
(5) 320 - 1,820 rpm
(8) 320 - 1,820 rpm
205 - 2,045 rpm
(2) 140 - 2,250 rpm
Spindle mount
MT 2
MT 3
MK2
MK3
Drive Capacity
Motor rating main drive
1.5 Hp
2 Hp
1.5 Hp
2 Hp
Measures and Weights
Overall dimensions (length x width x height)
38x20x55 in
40x24x83 in
40x23x56 in
36x24x75 in
Weight
374 lbs
759 lbs
394 lbs
682 lbs
Modern design, high-quality cast-iron, and excellent workmanship combined with superior rigidity, function and appearance
Heavy, precision-ground work table with diagonal T-slots
Very smooth height adjustment of drill table, even under high loads
Large base plate with ground setup area and parallel T-slots
Forward and reverse, plus automatic reversal of direction for thread cutting
Spindle shank and spindle are hardened and ground
Robust belt drive and quiet, powerful motor
Integrated LED work lamp is standard
Infinitely variable speed adjustment via potentiometer

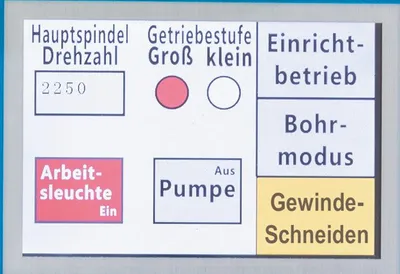

Touchscreen with comfortable selection of functions, like drilling, thread-cutting, and setup operations
The control unit allows querying of all limit switches and shows all functionalities, like coolant system, rpm and work lamp
LED work lamp
coolant system
drill chuck
tool-holder bits
drill press vice
tapping unit
operating tools
operator manual
