Equipped With

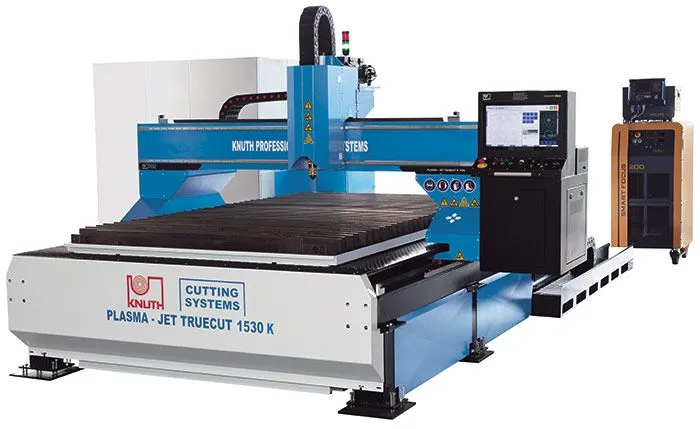

Plasma-Jet TrueCut 1530 H
Plasma-Jet TrueCut 2040 H
Plasma-Jet TrueCut 3060 H
Working Area
Cutting Width
59 in
79 in
118 in
Cutting length
118 in
157 in
236 in
Table height
28 in
Table load capacity
106 lbs/ft?
Rapid feed
709 in/min
Weight (without plasma source)
6,820 lbs
9,020 lbs
20,900 lbs
Stand-alone cutter table features rigid steel construction for high load capacity
Stand-alone table eliminates thermal and mechanical influences on the plasma cutter system
Dual-drive bridge
High-quality linear guides on all axes
Dynamic AC servo drives on all axes with maintenance-free, zero-backlash planetary gears
Low-wear and low-maintenance helical gears are designed for continuous operation
Automatic torch height control
quick-coupling for cutter head allows quick head exchanges for reduced tooling time
available with 5-axis cutter head, tube cutter, and many more options
Optimum bed speed even for fine contours and tight radii
Use the existing cutting parameters stored in the control to find the optimum cut
table is prepared for filter system (automatic closure control)
panasonic servo-motors and drives
automatic torch height control with Hypertherm THC sensor
cutter torch with magnetic coupling and crash sensor
hypertherm Edge Connect CNC Unit
19Ó Touchscreen von ELO
ethercat-E
laser pointer
Libellula.WIZARD PRO
libellula.CAD 2D
