Equipped With

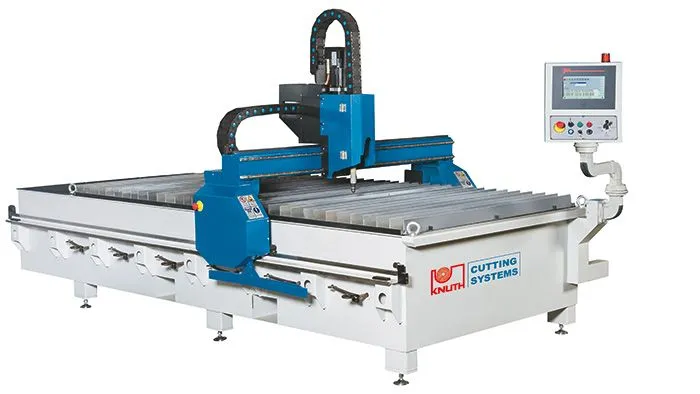

Plasma-Jet Air Pro 1530 H
Working Area
Cutting Width
61 in
Cutting length
120 in
Table height
24 in
Table load capacity
71 lbs/ft?
Rapid feed
591 in/min
Weight (without plasma source)
3,740 lbs
Compact design with guides integrated into the table frame
Plasma cutting system for personal use providing high value at a lost cost
Careful selection of the optimum components ensures that the same cutting functionality is available as in large plasma cutting systems
Machine can be moved and transported in its fully assembled state
The drives on both sides of the machine bridge and the drive of the X-slide along the machine bridge are carried out in a permanently precise manner by helical rack and pinion.
The machine has a segment-wise suction of the working surface, whereby the respective suction flap is opened mechanically by the machine bridge passing.
The distance between plasma cutting nozzle and plate surface is maintained by the Z axis height control; height control is regulated by an electric arc
Plasma cutter head with collision guard
Table is prepared for filter system (mechan. closure control)
Panasonic servo-motors and drives
Automatic torch height control with Hypertherm THC sensor
Cutter torch with magnetic coupling and crash sensor
Hypertherm Edge Connect CNC Unit
19 ÓTouchscreen von ELO
Ethercat-E
Laser pointer
Libellula Wizard PRO
Libellula.CAD 2D
