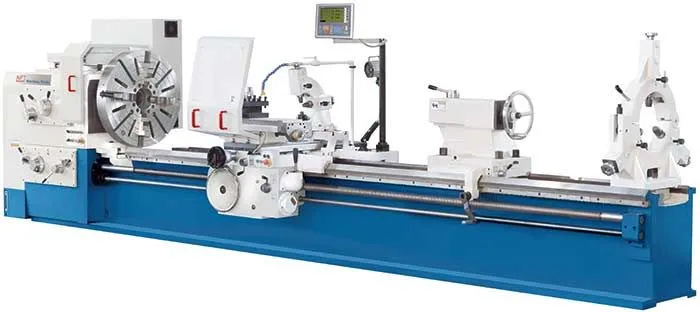

NEW KNUTH DL S

Equipped With

DL S 425/1500
DL S 425/3000
DL S 425/4000
DL S 425/5000
DL S 515/1500
DL S 515/3000
DL S 515/4000
DL S 515/5000
Working Area
Workpiece length (max.)
59 in
118 in
157 in
197 in
59 in
118 in
157 in
197 in
Turning diameter over bed
33 in
33 in
33 in
33 in
39 in
39 in
39 in
39 in
Turning-¯ over support
20 in
20 in
20 in
20 in
28 in
28 in
28 in
28 in
Turning diameter over gap bridge
45 in
45 in
45 in
45 in
53 in
53 in
53 in
53 in
Work piece weight (max.)
8,800 lbs
Gap bridge length
19 in
Bed width
24 in
Travels
Travel X-axis
21.7 in
Travel Z-axis
54 in
110 in
150 in
189 in
54 in
110 in
150 in
189 in
Travel Z1-axis
10 in
Swing range of top slide
90¡
Headstock
Spindle speed
5 - 630 rpm
Spindle bore
4 in
Spindle mount
A2-11
Rapid Feed
Rapid Feed X-axis
70.87 in/min
Rapid Feed Z-axis
143.31 in/min
Feed
Feed speed X-axis
(64) 0 - 0 in/min
Feed speed Z-axis
(64) 0 - 0 in/min
Feed speed Z1-axis
(64) 0 - 0 in/min
Tool Head
Tool shank dimensions
1.3x1.3 in
Tapping
Tapping, metric
(56) 1-120 mm / (56) 0.04Ó - 5Ó mm
Tapping - inch
(56) 30 - 1/4
Tapping, diametric
(56) 60-0,5 DP
Tapping, module
(56) 0.02 - 2.36 in
Tailstock
Tailstock quill diameter
5 in
Tailstock taper
MT 6
Tailstock quill stroke
10 in
Drive Capacity
Motor rating main drive
20.1 Hp
20.1 Hp
20.1 Hp
20.1 Hp
24.8 Hp
24.8 Hp
24.8 Hp
24.8 Hp
Motor rating coolant pump
0.2 Hp
0.2 Hp
0.2 Hp
0.2 Hp
0.2 Hp
0.2 Hp
0.2 Hp
1.5 Hp
Motor rating feed
1.5 Hp
1.5 Hp
1.5 Hp
1.5 Hp
1.5 Hp
1.5 Hp
1.5 Hp
0.2 Hp
Measures and Weights
Overall dimensions (length x width x height)
144x60x60 in
203x60x60 in
243x60x60 in
282x60x60 in
144x60x63 in
203x60x63 in
243x60x63 in
282x60x63 in
Weight
12,320 lbs
12,980 lbs
14,960 lbs
18,260 lbs
12,320 lbs
14,960 lbs
18,480 lbs
20,900 lbs
Extra heavy, wide machine bed with heavy ribbing and one-piece mono-block construction
Induction-hardened and ground guide slots ensure long-term accuracy and minimum wear

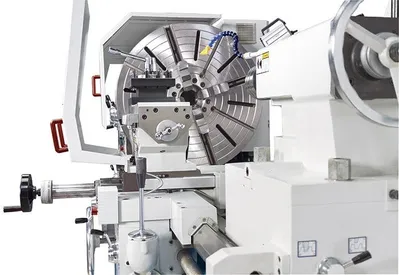

Massive headstock with high-precision main spindle on a tapered roller bearing with 4 inch spindle bore for excellent stability under heavy loads
Very quiet operation at maximum spindle speed

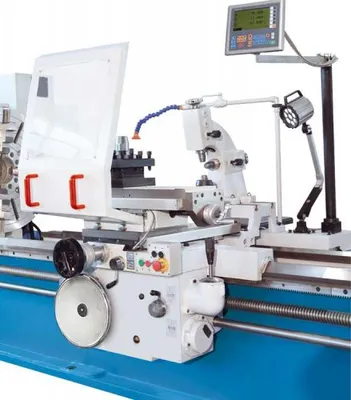

Joystick control for X and Z feeds is mounted directly to support
Manually shifted 4-step gearbox with hiqh-quality frequency control combined with
a powerful main spindle motor with up to 25 Hp power allow exact tuning of rpm and high torque to provide maximum power even under heaviest loads
For quick positioning and reduced down-time, the support is equipped with a rapid feed on X and Z-axes
Adjustable overload clutch in apron protects the feed mechanics from damages and failures
Central, practical controls for feeds and thread leads
The auxiliary gearbox features a wide spectrum of diametric, inch, module, and metric threads
Support and top slide are designed for high cutting forces
More accuracy
Lower error rate
Increased productivity
Resulting in valuable time savings
For increased productivity
Easy to read display
Operator-specific features
Convenient keyboard layout
Resolution: 0.0004 / 0.0002"
Default coordinates
Axis position is maintained when display is turned off
Hole circle pattern calculation
Calculator function
Storage for 10 tools
Radius / diameter toggle
Mm/inch conversion
Easy expansion and maintenance-free operation
Display for top (Z0) and box way slide (Z1) both separate and in differential / cumulative mode for lathes
3-axis position indicator
4-jaw face plate chuck ¯ 40"
4-station tool holder
steady rest 1.5"-14"
Follow rest 1.2Ó-4.7Ó
dead centers
reducing sleeve
chuck guard
protective shield for support
coolant system
foundation bolts
work lamp
operating tools
operator manual
