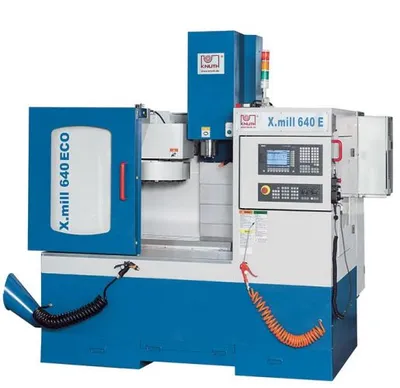

NEW KNUTH X.MILL 640 ECO SI

Equipped With
Working Area
Table dimensions
30x14 in
Table load capacity
1,100 lbs
Number of T-slots
3 positions
T-slots, width
0.7 in
T-slots, spacing
3.9 in
Spindle nose-to-table surface distance
2 - 22 in
Travels
Travel X-axis
25.2 in
Travel Y-axis
16 in
Travel Z-axis
20 in
Headstock
Spindle speed
10,000 rpm
Spindle throat
17 in
Spindle mount
BT 40
Rapid Feed
Rapid Feed X-axis
1,417.32 in/min
Rapid Feed Y-axis
1,417.32 in/min
Rapid Feed Z-axis
944.88 in/min
Feed
Work feed X-axis
0 - 197 in/min
Work feed Y-axis
0 - 197 in/min
Work feed Z-axis
0 - 197 in/min
Tool Head
Number of tool stations
12 positions
Tool ¯
2 (4) inch in
Tool length (max.)
8 in
Tool weight max.
11 lbs
Tool-changing time chip/chip
9 sec
Tool-change time tool/tool
7 sec
Accuracies
Positioning accuracies
± 0.0001 inch in
Repeatabilities
± 0,00008 inch in
Drive Capacity
Motor rating main drive
14.8 Hp
Main drive, continuous load
10.06 Hp
Measures and Weights
Overall dimensions (length x width x height)
91x71x91 in
Weight
9,240 lbs
Part No.
181287
Reliable, compact machining center with extensive equipment for streamlined, cost-effective series productions
Premium linear guides and powerful servo drives on all axes
Solid cast-iron machine body serves as foundation for high precision at high travel speeds, and powerful chip removal
Totally enclosed work space with side doors ensures maximum safety and flexibility
Siemens 808D Advanced TTL control:
cost-effective, easy to handle, superior reliability backed by worldwide service, including software for external programming
Standard electronic hand-wheel
Automatic central lubrication system
Compact and User-friendly solution for milling applications
Highlights
Easy to use, dialog-guided user interface
Comprehensive bandwidth of technology cycles
High performance and precision
The CNC SINUMERIK 808D Milling comes preconfigured and is perfectly suited for standard milling machine applications. The SINUMERIK 808D Milling features the Advanced Surface smart motion control from the SINUMERIK MDynamics technology suite. Also included is the Look Ahead function, which allows optimum speed control to ensure superior surface quality.
SINUMERIK Operate BASIC
Easy, intuitive user interface with dialog-guided user support. The menu structure of the completely updated Sinumerik Operate Basic has been closely adapted to the larger Sinumerik Operate system's menu
SINUMERIK programGUIDE BASIC
The "programGuide Basic" simplifies programming by adding graphically supported cycle masks and a practical contour calculator
SINUMERIK MDynamics
Includes the new Advanced Surface functionality for smart motion control - ensures perfect workpiece surfaces combined with significantly reduced machining times
What makes the Siemens 808D so great?
Self-explanatory use and powerful CNC functions ensure highest workpiece precision and short machining times
Allows re-using of part programs from other controls that support ISO code
DIN and ISO programming code can be alternated within one program
The USB port at the front panel provides a connector for USB memory sticks for easy transfer of parts programs and tool data during everyday operation
Just as the high/end Siemens CNCs, this series features ergonomically designed rotary override switches
Microswitch keys of the membrane keyboard ensure excellent tactility
Precision and Productivity
Calculations are performed with 80-Bit NanoFP accuracy without any internal rounding errors
The 808D comes with the intelligent MDynamics motion control, including smart "Look-Ahead" function for optimized speed guidance - allowing increased productivity and perfect surface quality
The 808 series features powerful computing capacity and advanced technology cycles for superior performance

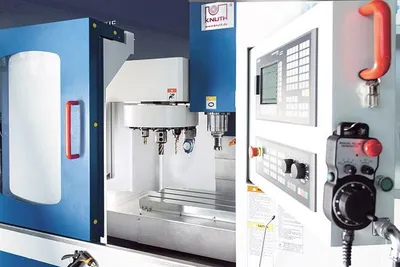

Siemens 808D control
electronic hand-wheel
spiral chip conveyor
servo drive for all 3 axes
12-station tool changer
control cabinet with heat-exchanger
totally enclosed work space
work lamp
tilted chip tray
automatic central lubrication
operating tools
operator instructions
