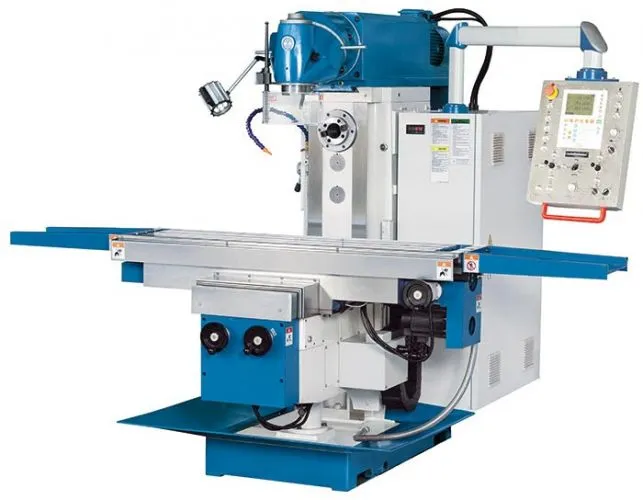

NEW KNUTH SERVOMILL UWF 5

Equipped With
Working Area
Table dimensions
63x13 in
Table load capacity
660 lbs
Number of T-slots
3 positions
T-slots, width
0.7 in
T-slots, spacing
3.1 in
Travels
Travel X-axis
51.2 in
Travel Y-axis
11 in
Travel Z-axis
18 in
Milling Head
Speed range (2)
60-360 / 360-1800 rpm
Spindle mount
ISO 50
Swivel angle
360¡
Upper beam travel
22 in
Spindle center-to-table distance
7 - 25 in
Rapid Feed
Rapid Feed X-axis
196.85 in/min
Rapid Feed Y-axis
118.11 in/min
Rapid Feed Z-axis
59.06 in/min
Horizontal Milling Spindle
Speed range (2)
60-360 / 360-1800 rpm
Spindle mount (horizontal)
50
Spindle center-to-table distance
0 - 18 in
Feed
Feed speed X-axis
0 - 39 in/min
Feed speed Y-axis
0 - 39 in/min
Feed speed Z-axis
0 - 39 in/min
Drive Capacity
Motor rating main drive
10.1 Hp
Measures and Weights
Overall dimensions (length x width x height)
100x83x79 in
Weight
6,160 lbs
Part No.
301254
Conventional milling, now easier, more precise and more efficient due to integrated electronics
The Servomill represents a new generation of advanced milling machines that are operated like a conventional machine
This machine features a user-friendly design, significantly higher precision and increased machining capacity
Very high reliability and long service life of all components ensure drastically reduced maintenance and increased reliability
Extremely rigid machine bed made of high-strength HT-200 cast-iron with heavy ribbing
Precision-ground guideways with hardened surfaces for long term accuracy and wear resistance
Precision spindle gears feature hardened and ground gears, and quiet operation
Powerful 10 HP horizontal spindle, heavy top beam, and outer arbor ensure excellent machining results when using long cutter arbors
Servo-conventional drives on all axes, infinitely variable with fast rapid feeds
Preloaded ball screws on all axes ensure increased precision and lasting wear-resistance
Servomill - Highlights
Control developed and built in Germany
Positioning control for traveling pre-selected paths on all axes
Zero-backlash preloaded ball screws
Servo motors on all axes, infinitely variable feed, rapid feed, and speed control
Electronic spindle load indicator
Electronic hand-wheels on all axes
X, Y and Z axes can be controlled via joystick
Integrated position indicator with glass scale
Your Advantages:
Easy to use: intuitive operation - practical layout of control elements and streamlined function
Automatic feed on all axes and infinitely variable rapid feed
With speeds up to 197 in/min
Set limit stops on any axis with the push of a button - 3 stop positions per axis can be stored
More precise: operated via electronic hand-wheels - axes are powered by high-quality servo drives that translate your hand movements with the precision and dynamics of modern CNC machines
More reliable: drives, spindles, and measuring systems are totally enclosed or mounted in protective enclosures and virtually maintenance-free

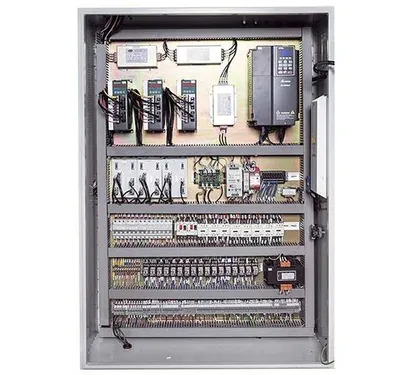

Electronics - made in Germany
More capacity: this machine only uses premium drive components that are designed for continuous operation
Maintenance-free: no regular maintenance needed for the entire feed drive
Advanced Feed Technology:
Axes are powered by high-quality servo drives that translate your hand movements with the precision and dynamics of modern CNC machines
Reliable, maintenance-free mass production technology
High rapid feed rate for reduced machine down-times
Ball screw drive on all axes:
Considerably less errors due to loseness (backlash), resulting in significantly higher precision
Significantly reduced friction, no stick-slip effect, reduced heat buildup, minimal wear
Electronic hand-wheels:
Micro-control via electronic hand-wheels offering the same handling and postioning as with a conventional machine, just smoother and more precise
Joystick control:
Maximum operator comfort for axis movements
Easy handling during sequential processing
Electronically controlled fixed stops:
Set 2 limit stops at 3 positions on each axis by the push of a button - these buttons are grouped around the feed switch for intuitive control
This ensures high repeatability during coordinate drilling or pocket cutting, and siginificantly more positions can be set up than on conventional machines
Electronic spindle load indicator:
Assists the operator in the most efficient utilization of machine and tool capacities
Reliable indicator helps avoid damages caused by overloads

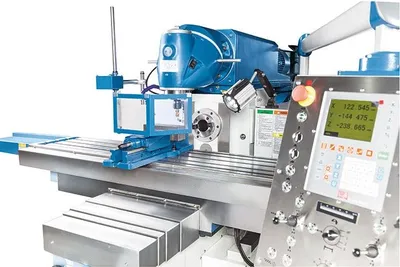

X.pos Plus - You will gain productivity,
quality and comfort
Default coordinates
Hole circle pattern calculation
Vibration filter feature
Mm/inch conversion
8 display languages
Calculator function
high-resolution display with excellent legibility
state-of-the art electronics and a very robust, completely sealed enclosure ensure maximum safety and optimum production conditions
a major focus during the development and selection of electronic components was the achievement of maximum resistance against external interferences and maintaining low temperature levels
background colors of the display can be changed as required or desired
the keyboard membrane is highly resistant and yet very comfortable to touch
the display also provides a key to toggle between radius and diameter
the axis position is maintained when the display is turned off
graphical support with residual path display and sketch drawing
linear and non-linear length correction is possible
easy mounting, easy electric connection, and maintenance-free operation
3-axis position indicator
electronic hand-wheels
reducing sleeve (ISO 50 / MT4)
milling arbors (1 in, 1.23 in)
ISO 50 collet chucks incl. collets up to 0.6 inch (8 pieces)
coolant system
work lamp
chip tray
draw bar
operating tools
operator manual
