Equipped With
Working Area
Table dimensions
24x12 in
Table load capacity
330 lbs
Number of T-slots
3 positions
T-slots, width
0.6 in
T-slots, spacing
3.9 in
Spindle nose-to-table surface distance
4 - 23 in
Travels
Travel X-axis
15.7 in
Travel Y-axis
9 in
Travel Z-axis
18 in
Headstock
Spindle speed
8,000 rpm
Spindle mount
BT 40
Feed
Rapid feed X-axis
472 in/min
Rapid feed Y-axis
472 in/min
Rapid feed Z-axis
394 in/min
Work feed X-axis
0 - 394 in/min
Work feed Y-axis
0 - 394 in/min
Work feed Z-axis
0 - 394 in/min
Tool Head
Number of tool stations
12 positions
Tool ¯
2.16 (4.72) in
Tool length (max.)
8 in
Tool weight max.
7 lbs
Tool-change time tool/tool
7 sec
Accuracies
Positioning accuracies
0.0008 in
Repeatabilities
0.0004 in
Drive Capacity
Motor rating main drive
5 Hp
Motor rating for X-axis drive
1 Hp
Motor rating for Y-axis drive
1 Hp
Motor rating for Z-axis drive
1.3 Hp
Measures and Weights
Overall dimensions (length x width x height)
83x75x97 in
Weight
4,840 lbs
Part No.
181359

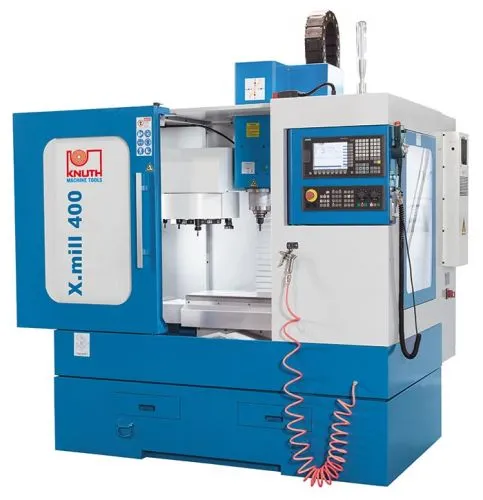

Reliable, compact machining center with extensive equipment for streamlined, cost-effective series productions
Massive cast-iron machine body integrates many years of experience and state-of-the-art technology
All axes move on premium, fully enclosed linear guideways and precision ball screws and are driven by dynamic servo-motors
The premium spindle unit features a large tool mount and a spindle oil cooler, which are of great advantage in continuous operations
Fast rapid feeds and rugged horizontal tool changer allow for efficient machining with minimum downtime
The totally enclosed work space features a large door and side doors for easy access, safety and cleanliness

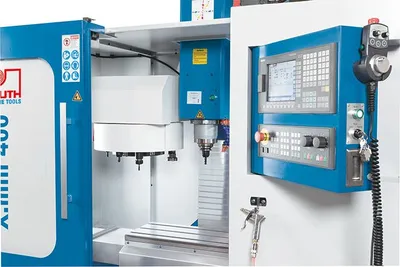

Siemens 808D control: cost-effective, easy to handle, superior reliability backed by worldwide service
Electronic hand-wheel simplifies machine set-up
The automatic central lubrication system ensures proper lubrication of all lube points
SINUMERIK 808D ADVANCE -- the perfect solution for modern standard machines
CNC and drive communicate via a high-speed bus to ensure efficient positioning control plus high precision and optimum cutting performance
This is topped by a guaranteed superior price/performance ratio
This globally leading CNC technology provides high performance and power for the control of standard lathes
In combination with a new generation of spindle and axis drives, the SINUMERIK 808D ADVANCE with 8.4" LCD provides an innovative ready-to-use digital CNC solution for modern standard machines
Advantages - Digital solution provides higher precision:
Increased overload capacity supports a faster acceleration and deceleration of machine tools
Constant cutting speeds result in an increased surface quality of the workpiece
Increased ruggedness:
During heavy machining operations, an automatic spindle torque adjustment will help protect machining tools and spindle systems.
The SINAMICS features a wide voltage range to prevent machine shut-downs during poor voltage supply conditions. This will significantly reduce machine down-times.
Increased operator comfort:
A fast Ethernet connection facilitates easy start-up and diagnostics of machine tools and simplifies NC program use
Siemens 808D Advance control
12-station automatic tool changer
electronic hand-wheel
coolant system
operational health status indicator
automatic central lubrication
enclosure
Level pads and bolts
work lamp
compressed air gun
operating tools
operator manual
