Equipped With
HFS 50100 F NC
HFS 50160 F NC
HFS 60160 F NC
HFS 60200 F NC
HFS 80160 F NC
HFS 80220 F NC
HFS 80300 F NC
Working Area
Table dimensions
20x39 in
20x63 in
24x63 in
24x87 in
31x63 in
31x87 in
31x118 in
Spindle center-table surface distance
24 in
24 in
24 in
24 in
36 in
35 in
35 in
Table load capacity (max.)
1,540 lbs
1,980 lbs
2,860 lbs
3,718 lbs
4,400 lbs
5,280 lbs
7,700 lbs
Magnetic chuck height
4 in
Travels
Travel X-axis
39.4 in
63 in
63 in
86.6 in
63 in
86.6 in
118.1 in
Travel Y-axis
20 in
20 in
25 in
25 in
32 in
32 in
32 in
Feed
Hydr. feed X
16.35 - 81.75 fpm
Feed Y-axis
2 - 20 in/min
2 - 20 in/min
2 - 20 in/min
2 - 20 in/min
2 - 79 in/min
2 - 79 in/min
2 - 79 in/min
Feed depth, Y axis
0.000197 - 0.001969 in
Feed Z-axis
2 - 24 in/min
2 - 24 in/min
2 - 24 in/min
2 - 24 in/min
2 - 79 in/min
2 - 79 in/min
2 - 79 in/min
Automatic Z axis feed
0 - 1 in/min
Grinding wheel
Grinding wheels dimensions
14x2x5 in
14x2x5 in
14x2x5 in
14x2x5 in
20x3x12 in
20x3x12 in
20x3x12 in
Speed
1,450 rpm
1,450 rpm
1,450 rpm
1,450 rpm
960 rpm
960 rpm
960 rpm
Drive Capacity
Motor rating main drive
10.1 Hp
10.1 Hp
10.1 Hp
10.1 Hp
24.8 Hp
24.8 Hp
24.8 Hp
Hydraulic motor rating
4 Hp
4 Hp
7.4 Hp
7.4 Hp
10.1 Hp
10.1 Hp
10.1 Hp
Y axis servo motor
1 Hp
1 Hp
1 Hp
1 Hp
4 Hp
4 Hp
4 Hp
Z axis servo motor
3 Hp
3 Hp
3 Hp
3 Hp
4 Hp
4 Hp
4 Hp
Measures and Weights
Overall dimensions (length x width x height)
178x105x107 in
281x99x107 in
217x109x107 in
256x109x107 in
189x158x103 in
237x158x103 in
323x158x103 in
Weight
12,100 lbs
13,200 lbs
15,400 lbs
17,600 lbs
23,100 lbs
27,500 lbs
30,800 lbs

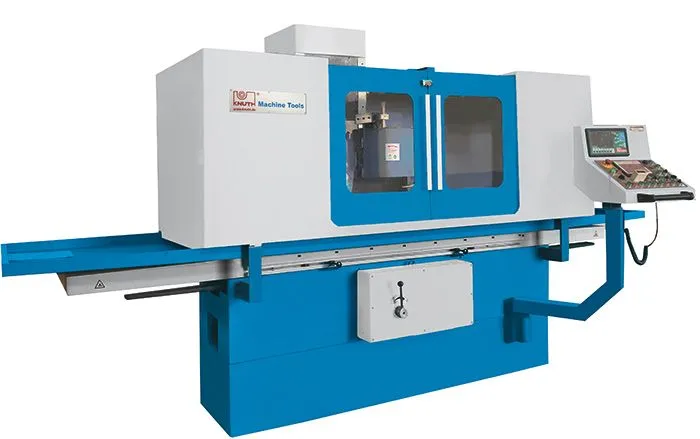

The massive, heavily ribbed cross-bed machine frame with traversing column and horizontal spindle is extremely rigid even under heaviest workpiece loads
The large work area allows machining of single workpieces with large surface areas or maching of several workpieces in one setup
The workspace is protected by an easily accessible enclosure
A high-performance cooling system is included in the standard equipment of this series
Control
Grinding cycles for automatic face and groove grinding are accessible and editable via touchscreen
Preloaded ball screws and powerful servo-motors in Y and X ensure high precision and repeatability during grinding wheel feeds
An electronic hand-wheel for Y and X axis simplifies setup and manual positioning of the grinding spindle
If set to Auto mode, the user-defined roughing and finishing parameters, number of spark-out strokes, and return to zero are automatically processed
Grinding spindle
Large grinding spindle, dynamically balanced, completely sealed with permanent lubrication
Preloaded precision-bearings ensure maximum grinding performance and high reliability over many production hours
Hydraulics
Superior quiet operation and low heat build-up ensure optimum work results
in continuous operations
The hydraulic linear table feed is infinitely variable, maintains a constant speed with smooth travel direction reversals
The external hydraulics unit with oil cooler ensures perfect temperature stability
Magnetic clamping plate
Large magnetic chucks for torsion-free clamping across the entire work surface are included in the standard equipment
The modern control also ensures reliable operation with firm holding forces and high-grade degaussing
2-axis position indicator
electronic hand-wheel Y/Z axis
grinding wheel flange
workspace enclosure
coolant system
grinding wheel dresser (without dressing diamond)
balancing station
balancing shaft
LED work lamp
magnetic clamping plate
adjustment screws
operating tools
operator manual
siemens PLC with touchscreen
grinding wheel
