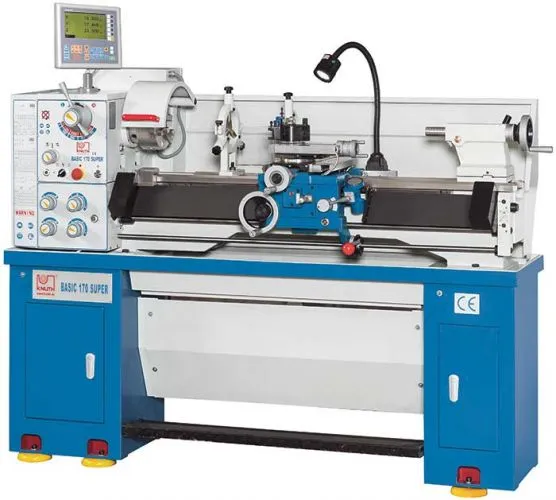

Equipped With
Working Area
Center width
39.37 in
Turning diameter over bed
13 in
Turning-¯ over support
8 in
Turning diameter over gap bridge
19 in
Gap bridge length
8 in
Bed width
7 in
Travels
Travel X-axis
6.7 in
Travel Z1-axis
4 in
Swing range of top slide
± 360¡

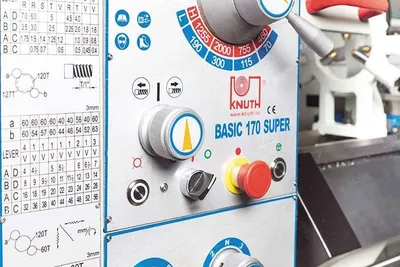

Headstock
Spindle speed
(8) 70 - 2,000 rpm
Spindle bore
1 in
Spindle mount
Camlock D1-4
Spindle taper
MT 5
Feed
Feed X-axis
0.00055 - 0.01496 in/R
Feed Z-axis
0.00205 - 0.0548 in/R
Tapping
Tapping, metric
(26) 0.02-0.3 mm
Tapping, withworth
(34) 4-56 TPI
Tailstock
Tailstock quill diameter
1 in
Tailstock taper
MT 3
Tailstock quill stroke
4 in
Tailstock traverse adjustment
± 0.5 in
Drive Capacity
Motor rating main drive
2 Hp
Measures and Weights
Overall dimensions (length x width x height)
73x27x52 in
Weight
1,144 lbs
Part No.
300815

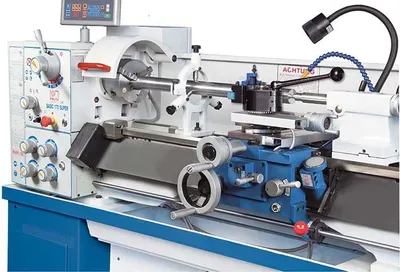

Hardened and ground headstocks gears
Gap bridge
Max. spindle speed 2000 rpm
Adjustable headstock bearing
Cast-iron bed, double v-guide, hardened and ground
Interlocking feature prevents simultaneous advance of lead screw and feed shaft
Oil-bath lubricated main drive and feed gear
Double-walled apron box with oil-bath lubrication
All guide ways are adjustable
3-axis position indicator
More accuracy
Lower error rate
Increased productivity
Resulting in valuable time savings
For increased productivity
Easy to read display
Operator-specific features
Convenient keyboard layout
Resolution: 0.0004 / 0.0002"
Default coordinates
Axis position is maintained when display is turned off
Hole circle pattern calculation
Calculator function
Storage for 10 tools
Radius / diameter toggle
Mm/inch conversion
Easy expansion and maintenance-free operation
Display for top (Z0) and box way slide (Z1) both separate and in differential / cumulative mode for lathes
3-axis position indicator
3-jaw chuck ¯ 6"
4-jaw face plate chuck ¯ 8" (not for Basic 180 V)
face plate ¯ 11"
quick change tool holder head WE
quick change tool holder WED 20100
steady and follow rests
fixed splash guard (wall)
chuck guard
foot brake pedal
base
work lamp
dead center
operating tools
operator instructions
