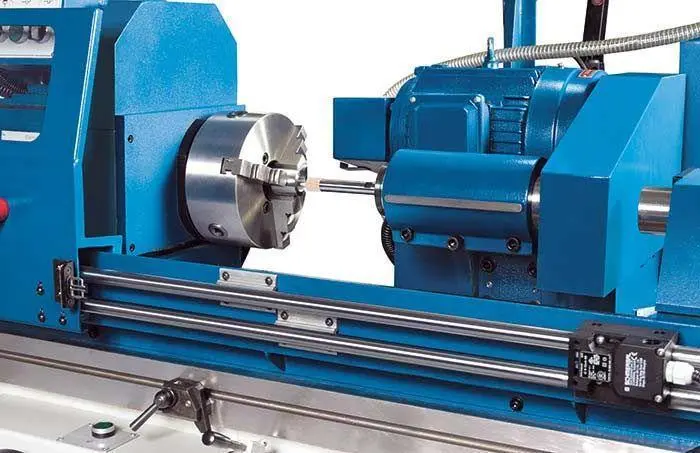

NEW KNUTH RSM 500 A - RSM 800

Equipped With

RSM 500 A
RSM 800
Working Area
Center height
5 in
Workpiece length (max.)
26 in
37 in
Grinding length
20 in
31 in
Grinding diameter
0.3 - 7.9 in
Inside grinding diameter without rest
0.4 - 3.9 in
0.5 - 3.9 in
Work piece weight between centers (max.)
110 lbs
Inside grinding depth
4.9 in
Table swivel range (max.)
-3¡ / +9¡ R / L
-3¡ / +8¡ R / L
Wheel speeds
1,482 in/s
Feed
Table feed, infinitely variable
0.33 - 13.08 fpm
Feed per scale division X-axis
0.000197 in
Headstock
Work spindle speeds
25 - 220 rpm
Working headstock swivel range
0-45¡
Spindle taper
MT 4
Grinding headstock
Inside grinding spindle speed
16,000 rpm
Grinding headstock swivel range (r+l)
± 30¡
Tailstock
Tailstock taper
MT 4
Drive Capacity
Total power consumption
5.63
Measures and Weights
Grinding wheels dimensions
16x2x8 in
Grindstone dimensions, inside grinding (max.)
2x1x0.5 in
Grindstone dimensions, inside grinding (min.)
0.7x0.8x0.2 in
Overall dimensions (length x width x height)
99x63x60 in
119x63x60 in
Weight
5,500 lbs
6,600 lbs
Proven and extremely rigid machine frame made of premium cast-iron - this machine's high intrinsic weight, diligent design and production create optimum conditions for excellent grinding and sanding results
Infinitely variable hydraulic linear feed
High-precision guideways of linear and transverse movement consisting of combined V-guides and box ways
Hydraulic adjustment of the grinding headstock simplifies set-up, workpiece exchanges and reduces downtimes
Grinding spindle with segmented high-precision bearing, adjustable and low maintenance
Work spindle speeds are infinitely variable and can be easily adjusted and optimized during the machining process
Machine table swivels for taper grinding
Hydraulic tailstock with foot switch
2-axis position indicator

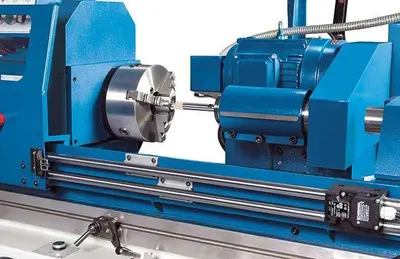

internal grinding equipment
3-jaw chuck, ¯ 7.87"
chuck flange
balancing station
balancing mandrel
truing feature
center point
grinding wheel flange
coolant system
open rest
closed rest
drivers
work lamp
operating tools
operator instructions
