Equipped With
Servoturn¨ 560/2000
Servoturn¨ 560/3000
Working Area
Workpiece length (max.)
87 in
118 in
Turning diameter over bed
22 in
Turning-¯ over support
14 in
Bed width
14 in
Travels
Travel X-axis
12.4 in
Travel Z-axis
79 in
110 in
Travel Z1-axis
4 in
Headstock
Spindle speed
25 - 1,600 rpm
Spindle bore
3 in
Spindle mount
D1-8
Spindle taper
MT 7
Feed
Feed X-axis
0.00039 - 0.07874 in/R
Feed Z-axis
0.00039 - 0.07874 in/R
Tapping
Tapping, metric
(24) 0.01 - 0.55 in
Tapping, withworth
(24) 4-48 TPI
Tailstock
Tailstock quill diameter
3 in
Tailstock taper
MT 5
Tailstock quill stroke
7 in
Drive Capacity
Motor rating main drive
10.1 Hp
Motor rating X-axis
1.3 Hp
Motor rating Z-axis
3.08 Hp
Measures and Weights
Overall dimensions (length x width x height)
146x50x71 in
178x50x71 in
Weight
9,460 lbs
11,000 lbs

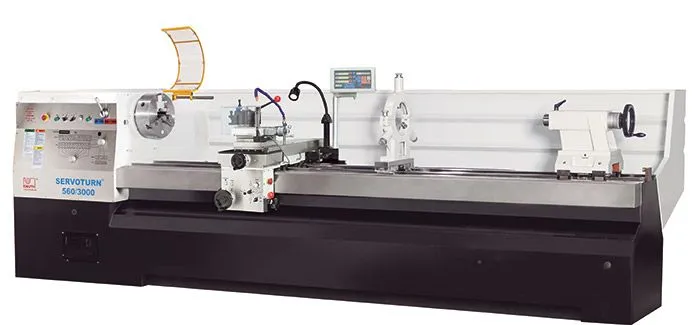

Setting new standards with conventional lathes featuring large center widths:
Feed and thread leads can be selected via rotary switch - what a brilliant concept.
Heavy, large machine beds made of high-strength mineral-casting
SERVOTURN¨ integrates many years of experience and superior construction properties, allowing uninterrupted cuts with high grade surface quality even under highest loads
Stops can be set electronically with the press of a button
Feeds are infinitely variable between 50 and 100% via override potentiometer - finally available on a conventional lathe
Long turning length can be machined with highest precision due to the superior thermal stability and damping properties of this machine
Micro-control via electronic hand-wheels - but handling and postioning just as with a conventional machine
Axes are powered by high-quality servo drives that translate your hand movements with the precision and dynamics of modern CNC machines
Infinitely variable speed adjustment and constant cutting speed of headstock
The definition of a new standard for conventional lathes had to be perfect - therefore, we complemented the Servoturn¨ with the following features:
The extensive Servoturn¨ series offers the same performance and features as servo-conventional precision machines
All major controls are located for optimum accessibility or are intuitively linked to their respective functions
A powerful main spindle drive with infinitely variable speed allows machining with constant cutting speed

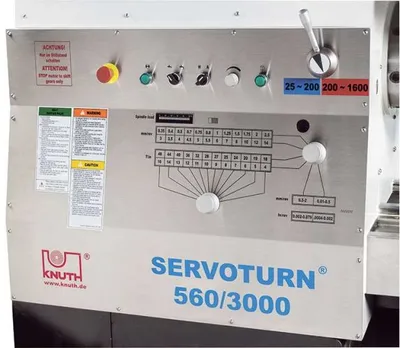

Feed and thread leads are selected electronically via a rotary switch, and executed by servo-motors featuring maximum precision and dynamics
Quick-action tool holder included
Mineral-Casting Machine Frame
Mineral-casting reduces vibration 6 times faster than cast-iron (GG25) and up to 10 times faster than steel - this ensures excellent surface quality that could not be achieved with conventional machines.
Excellent thermal stability
Modern manufacturing process with excellent energy footprint

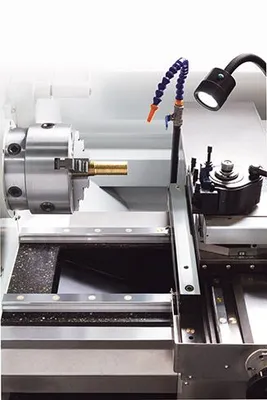

Linear Profile Guide Rails
Maximum reliability and performance
Excellent rigidity, strength and accuracy is achieved by optimum load distribution, designed for accepting high loads and torques
No stick-slip effect
Long life and minimum maintenance
Replaceable parts
Recirculating Ball Screw
Considerably less errors due to loseness (backlash), resulting in significantly higher precision
Significantly reduced friction
No stick-slip effect
Reduced heat development
Less wear for even less maintenance requirements
3-axis position indicator
More accuracy
Lower error rate
Increased productivity
Resulting in valuable time savings
For increased productivity
Easy to read display
Operator-specific features
Convenient keyboard layout
Resolution: 0.0004 / 0.0002"
Default coordinates
Axis position is maintained when display is turned off
Storage for 10 tools
Radius / diameter toggle
Mm/inch conversion
Display for top (Z0) and box way slide (Z1) both separate and in differential / cumulative mode for lathes
3-axis position indicator
3-jaw turning chuck
quick change tool holder WCD 32150
quick tool changer head WC
steady rest 0.74" - 6.5"
follow rest 0.6" - 3.7"
coolant system
fixed splash guard (wall)
protective shield for support
work lamp
operator instructions
