Equipped With
Portalo B 1810
Portalo B 2516
Portalo B 3016
Portalo B 4025
Portalo B 6025
Portalo B 8025
Working Area
Table dimensions
75x39 in
98x63 in
118x63 in
157x83 in
236x83 in
315x83 in
Table load capacity (max.)
19,800 lbs
33,000 lbs
44,000 lbs
66,000 lbs
88,000 lbs
132,000 lbs
T-slots, width
0.7 in
0.9 in
0.9 in
1.1 in
1.1 in
1.1 in
Number of T-slots
5 positions
7 positions
7 positions
9 positions
9 positions
9 positions
Spindle nose-to-table surface distance
9 - 31 in
8 - 39 in
8 - 39 in
14 - 61 in
14 - 61 in
14 - 61 in
Travels
Travel X-axis
41.3 in
63 in
63 in
98.4 in
98.4 in
98.4 in
Travel Y-axis
79 in
98 in
126 in
165 in
244 in
323 in
Travel Z-axis
22 in
31 in
31 in
47 in
47 in
47 in
Headstock
Spindle speed
8,000 rpm
8,000 rpm
8,000 rpm
6,000 rpm
6,000 rpm
6,000 rpm
Spindle mount
BT 50
Rapid Feed
Rapid feed
1,181 in/min
787 in/min
787 in/min
591 in/min
591 in/min
591 in/min
Feed
Work feed
0 - 591 in/min
Torque
1,017.75 - 1,522.2 ft.lb.
1,433.7 - 2,150.55 ft.lb.
1,433.7 - 2,150.55 ft.lb.
2,367.38 - 3,548.85 ft.lb.
2,367.38 - 3,548.85 ft.lb.
2,367.38 - 3,548.85 ft.lb.
Tool Head
Number of tool stations
20 positions
Tool size ¯ x L (max.)
5.91x9.84 in
5.91x9.84 in
5.91x9.84 in
5.91x11.02 in
5.91x11.02 in
5.91x11.02 in
Max. workpiece width x height
51x29 in
79x30 in
79x37 in
113x59 in
113x59 in
113x59 in
Tool weight max.
33 lbs
Tool-change time
6 sec
Accuracies
Positioning accuracy
0.00039 in
Repeatability
0.0002 in
Drive Capacity
Motor rating main drive
24.1 - 24.1 Hp
33.5 - 33.5 Hp
33.5 - 33.5 Hp
56.3 - 56.3 Hp
56.3 - 56.3 Hp
56.3 Hp
Main drive, continuous load
16.09 Hp
22.8 Hp
22.8 Hp
37.55 Hp
37.55 Hp
37.55 Hp
Motor rating X-axis
2.8 Hp
5.8 Hp
5.8 Hp
10.3 Hp
10.3 Hp
10.3 Hp
Motor rating Y
2.8 Hp
5.8 Hp
5.8 Hp
10.3 Hp
10.3 Hp
10.3 Hp
Motor rating Z axis (brakes)
5.8 Hp
7 Hp
7 Hp
10.3 Hp
10.3 Hp
10.3 Hp
Measures and Weights
Overall dimensions (length x width x height)
189x125x111 in
217x138x134 in
256x138x134 in
296x241x158 in
375x241x158 in
453x260x158 in
Weight
44,000 lbs
68,200 lbs
72,600 lbs
96,800 lbs
121,000 lbs
154,000 lbs

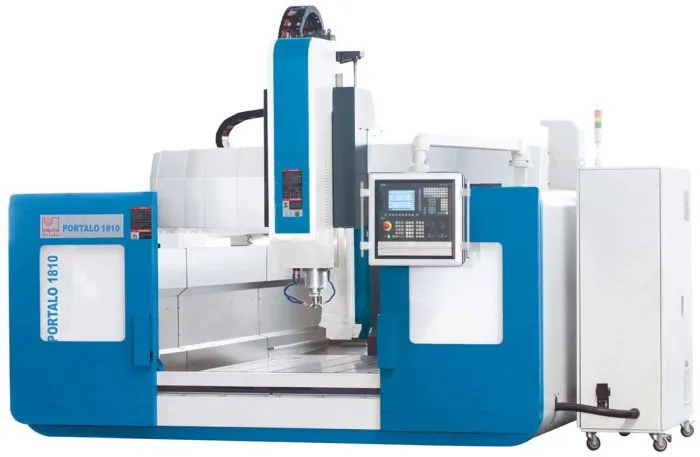

Cast-iron frame with high gantry design for maximum rigidity, small foot print for efficient and economical operation
In smaller models with up to 62" wide tables the machine frame is a one-piece construction, while larger models feature separate table and column constructions
Rigid traverses with drives on both sides - perfect synchronization of drives and dynamics
Large linear guides in X / Y axis and 4 linear roller guides on Z axis ensure lasting precision
A fixed table allows machining of extra-heavy workpieces
Precision preloaded ball screws and proven Siemens servo-motors provide dynamic feed and rapid feed on all axes
A powerful coolant system combined with the included chip conveyor ensures excellent chip disposal and optimum machining conditions
Optional universal and angle cutter heads allow angular or lateral machining of workpieces
Plus free 1-day training in Wasbek
Compact, rugged and maintenance-free operator-panel CNC with dedicated system software for turning, milling and grinding technologies
High-quality, rugged, magnesium die-cast operator panels with degree of protection IP65
Maintenance-free operator panel front, e.g. no fan, battery or hard disk
Highest machining precision with 80-bit NANOFPaccuracy
New user interface SINUMERIK Operate Ð same look and feel as SINUMERIK 840D sl
ShopTurn/ShopMill (option): Very fast programming time in the production of individual parts and small batches
Advanced Surface: Innovative, high-performance CNC functions provide top quality of workpiece surface with minimum machining times
Technology package SINUMERIK MDynamics with the new function Advanced Surface: Perfect workpiece surfaces and very fast machining times in molded part production
programGUIDE: fastest machining time and maximum flexibility for large series productions
Unique spectrum of technology cycles Ð ranging from the machining of any turning and milling contour with residual material detection to in-process measurements
G-Tech is a grinding package with an extensive scope of CNC functions ranging from the low-cost entry-level model up to highly productive machines
Animated Elements: Unique operating and programming support with moving picture sequences
modern data transfer options via USB stick, CF card and network (Ethernet)
SINUMERIK Integrate for production Access MyMachine /Ethernet permits remote diagnostics from anywhere in the world
Easy Message: Integrated mobile radio modem for optimum process monitoring and maximum machine availability via text messages (SMS)
Easy Extend: Flexible handling of machine units, e.g. an A axis/parts machine
Maintenance scheduler: Signaling of pending maintenance tasks in accordance with specified maintenance intervals
Functions
Operator panel variants for horizontal or vertical operator panel housings
Proximity/clearance sensor for smart display control
Integrated QWERTY full CNC keyboard with short-stroke keys
Additional Ethernet interface at the rear of the CNC for connection to factory network
Additional USB interface at the rear of the CNC for machine control panel
Integrated PLC based on the SIMATIC S7-200 command set with ladder logic programming
I/O interface based on PROFINET for the connection of PLC I/O devices and a machine control panel
Up to 5 axes/spindles
1 analog spindle
1 machining channel/mode group
Integrated tool management with tool life monitoring
Configurable user screens with SINUMERIK Integrate for engineering Run MyScreens (Easy Screen)
SINUMERIK Integrate for engineering Run MyRobot /EasyConnect for simple interfacing of robots and handling systems
Integrated data archiving procedure for simple data updates
Siemens 828 D Basic control
Electronic hand-wheel for X and Z axis
separate control panel
compressed air gun
automatic central lubrication
coolant system
LED work lamp
2 spiral chip conveyors
CE

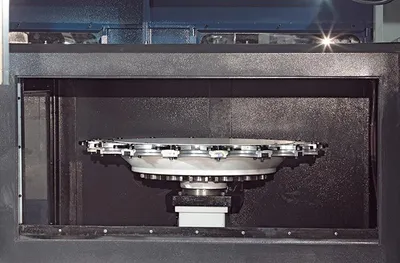

20-station tool changer
operating tools
operating manual and programming instructions
