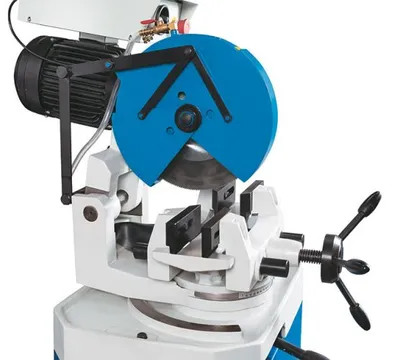

NEW KNUTH KKS T

Equipped With

KKS 315 T
KKS 250 T
KKS 275 T
KKS 350 T
Working Area
Max. saw blade diameter
12 in
10 in
11 in
14 in
Shaft diameter
1.6 in
1.3 in
1.3 in
1.3 in
Speed
18/36 rpm
42 rpm
42 rpm
18/36 rpm
Width of vise
6 in
4 in
4 in
6 in
Working height
38 in
Cutting Capacities
Cutting capacity 90¡ round
4 in
2 in
3 in
5 in
Cutting capacity 90¡ - square
4 in
2 in
3 in
4 in
Cutting capacity 90¡ - flat
6x4 in
3x2 in
4x2 in
6x4 in
Cutting capacity 45¡ (round) L
4 in
2 in
3 in
4 in
Cutting capacity 45¡ (square) L
4 in
2 in
2 in
4 in
Cutting capacity 45¡ (flat) L
4x4 in
2x2 in
3x2 in
4x4 in
Cutting capacity 45¡ (round) R
4 in
2 in
3 in
4 in
Cutting capacity 45¡ (square) R
4 in
2 in
2 in
4 in
Cutting capacity 45¡ (flat) R
4x4 in
2x2 in
3x2 in
4x4 in
Drive Capacity
Main motor rating
0,75 / 1,3 Hp
1,1 Hp
1,1 Hp
1 / 1,7 Hp
Measures and Weights
Overall dimensions (length x width x height)
37x23x71 in
37x19x68 in
37x19x71 in
39x23x73 in
Weight
499 lbs
315 lbs
326 lbs
519 lbs
Easy operation, rugged design, and precise angular cuts make this circular cold saw a Òmust-haveÓ basic for any workshop
The entire series is ideally suited for cutting solid materials, tubes, and sections of steel, iron, and light metals
The operator guides the cut via a hand-lever, where the ON/OFF switch is integrated ergonomically into the hand grip
The models KKS 250 and 275 T provide a rigid vise with quick-action clamping feature and are ideal for small batch productions

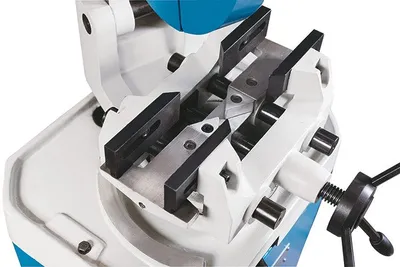

KKS 315 T / KKS 350 T feature a self-centering dual vise that hold the workpiece firmly on both sides of the saw blade
The miter can be adjusted up to +/- 45 degrees by rotating the gear head
The selected angle adjustment is fixated via a central clamping lever that is integrated into the machine frame
All models have high-torque motors, and the KKS 315 and 350 T also have reversible poles and 2 speeds
A large idler gear runs in an oil bath for low maintenance and minimal wear
The rugged machine base allows a space-saving machine setup
An integrated coolant system is part of the standard equipment on all models
Self-centering vise
base
coolant system
1 saw blade
linear stop
