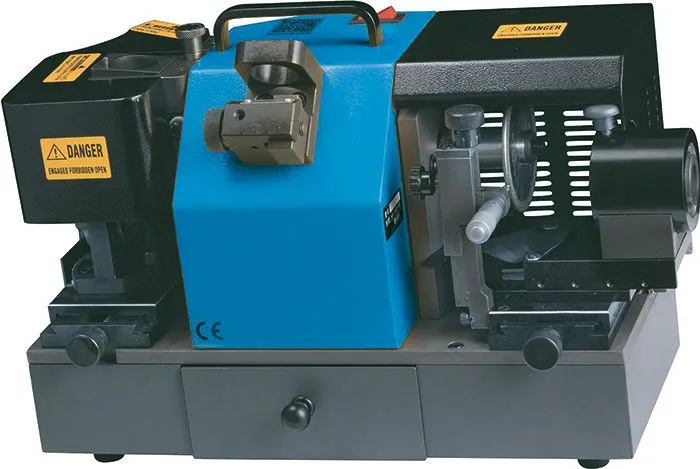

NEW KNUTH FSM 14 S

Equipped With
Working Area
Grinding diameter
0.2 - 0.6 in
Grinding wheel material
CBN
Drive Capacity
Motor rating main drive
0.2 Hp
Measures and Weights
Overall dimensions (length x width x height)
25x10x12 in
Weight
48 lbs
Part No.
112805
For grinding of HSS and carbide cutters with diameters from 0.12 to 0.55 inch
Cutters with 2, 3 and 4 blades can be machined; cutters with 6 blades can be machined, if their diameter is at least 0.5 inch
Easy grinding of circumferential spiral blades
Rapid tooling - quick setup of cutters at the machine
2 grinding wheels are included
6 collets with the common diameters of 0.1 , 0.2 , 0.3 , 0.4 , 0.5 , 0.55 inch
