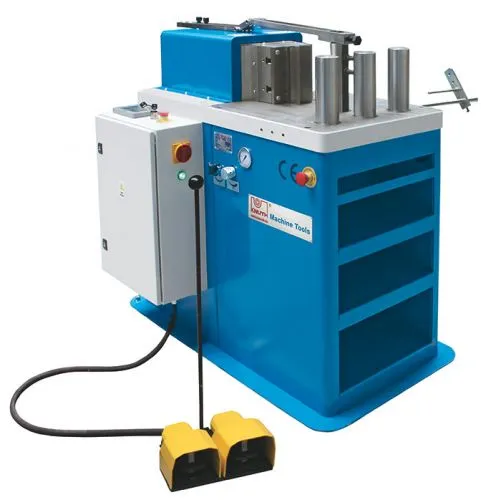

NEW KNUTH KHP 28 NC

Equipped With
Working Area
Pressure force
61,600 lbs
hydraulic pressure max.
2,900 psi
Y-axis stroke
7 in
piston diam.
5 in
Bending speed
0.1 - 0.4 in/s
Return speed
0.79 in/s
Table size
12x22 in
fastening holes in working table
4 positions
diameter fastening holes
3 in
Drive Capacity
Motor rating main drive
5.4 Hp
Measures and Weights
Overall dimensions (length x width x height)
46x30x44 in
Weight
1,430 lbs
Part No.
131547
The horizontal bending and straightening press features a stamp and a 4-channel die for machining up to 8 inch wide material
The work table can be set up for a wide range of applications, depending on the type of tools placed on the table and installed in the tool mounts
The work table features an angle scale that simplifies alignment of the bending process
The hydraulic system can be regulated via pressure and flow valves, allowing the user to control the pressing force and work speed according to requirements
The integrated pressure gauge provides an exact indication of the current bending force
Practically arranged control panel, and easy to read LED display showing the work cylinder positions
The operator can choose between manual or automatic control, and up to 4 different programs can be stored
The hydraulic press is controlled via a safety foot switch
stamps and dies
material stop
operator manual
