Equipped With
SBS E 2020/2,0
SBS E 2540/1,5
SBS E 3020/1,2
Working Area
Working length
80 in
100 in
119 in
Plate thickness (max.)
0.08 in
0.06 in
0.05 in
Working height
36 in
Male Die
Stroke
4.7 in
Bending Die
Bending angle (max.)
135 deg
Adjustment range for A axis
1 in
Measures and Weights
Overall dimensions (length x width x height)
111x34x52 in
131x29x60 in
150x29x60 in
Weight
2,255 lbs
2,750 lbs
3,047 lbs

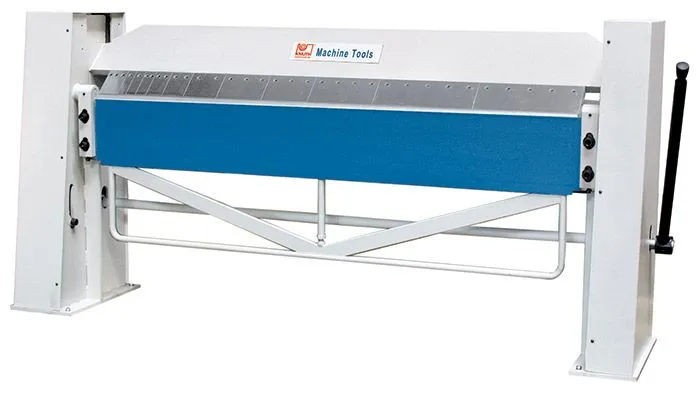

The series has a rugged, very robust design and is impressively easy to handle while delivering maximum accuracy.
All models of this series have a hardened, segmented male die.
Segments can be removed individually, so all sides of the basin can be bent
Adjustable angular stop for the production of angular small batches
A manually adjustable rear gauge is available as an option
