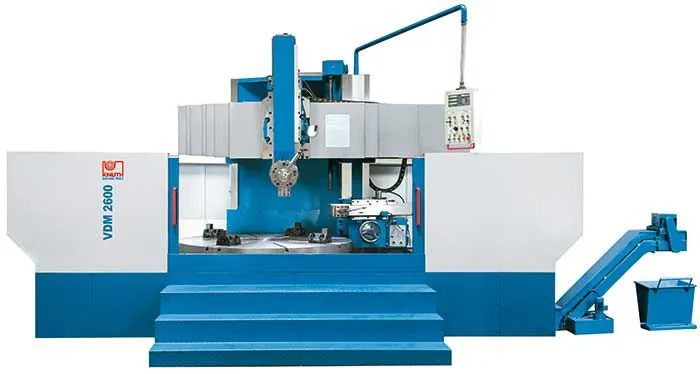

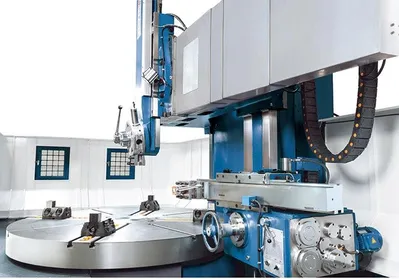

NEW KNUTH VDM S

Equipped With

VDM 800 S
VDM 1000 S
VDM 1250 S
VDM 1600 S
VDM 2300 S
VDM 2600 S
Working Area
Rotating diameter (max.)
31 in
39 in
49 in
63 in
91 in
102 in
Turning diameter of upper tool holder
31 in
39 in
49 in
63 in
91 in
102 in
Turning diameter of side tool holder
28 in
35 in
39 in
55 in
79 in
91 in
Machining height (max.)
31 in
31 in
39 in
39 in
53 in
59 in
Swivel range of upper tool holder
± 30¡
Workpiece length (max.)
31 in
31 in
39 in
39 in
53 in
59 in
Work piece weight (max.)
2,640 lbs
4,400 lbs
7,040 lbs
11,000 lbs
17,600 lbs
22,000 lbs
Travels
Travel X1 axis, upper support
22 in
26 in
28 in
36 in
45 in
51 in
Travel Z1 axis , upper support
24 in
24 in
26 in
31 in
39 in
39 in
Travel W-axis, traverse
23 in
23 in
26 in
26 in
39 in
43 in
Travel X2 axis , side support
20 in
20 in
25 in
25 in
25 in
29 in
Travel Z2 axis , side support
31 in
31 in
35 in
35 in
39 in
46 in
Headstock
Speed range
(16) 10 - 315 rpm
(16) 8 - 250 rpm
(16) 6.3 - 200 rpm
(16) 5 - 160 rpm
(16) 3.2 - 100 rpm
(16) 1.4 - 45 rpm
Spindle Torque (max.)
88,500 ft.lb.
110,625 ft.lb.
154,875 ft.lb.
221,250 ft.lb.
283,200 ft.lb.
283,200 ft.lb.
Rotary table diameter
28 in
35 in
39 in
55 in
79 in
91 in
Rapid Feed
Rapid feed of upper support
71 in/min
Rapid feed of side support
71 in/min
Feed
Feed speed X-axis
0 - 3 in/min
Feed speed Z-axis
0 - 3 in/min
Feed speed W-axis
17 in/min
Tool Head
Tool holder
1.2x1.6 in
Tool weight max.
110 lbs
Drive Capacity
Motor rating main drive
29.5 Hp
29.5 Hp
29.5 Hp
40.2 Hp
49.6 Hp
49.6 Hp
Motor rating X-axis
1.7 Hp
Motor rating Z-axis
2.41 Hp
Measures and Weights
Overall dimensions (length x width x height)
193x138x164 in
193x142x164 in
209x150x166 in
256x166x174 in
300x197x213 in
312x209x213 in
Weight
14,300 lbs
15,620 lbs
19,800 lbs
27,500 lbs
41,800 lbs
60,500 lbs
Infinitely variable feed control via servo-motor
Optimum tooling and easy access for cranes and forklift trucks
Heavy-duty column with wide, hardened guideways
Hydraulic clamping of cross traverse
Rigid guide construction ensures maximum rigidity and accuracy of the vertical boom
Spindle runs in a high-precision two-row roller bearing and is adjustable
Reduction gear drive ensures high torque and a speed range of 10 - 315 rpm
Servo motor technology ensures powerful, infinitely variable feed of the vertical boom
3-axis position indicator
fully enclosed housing
chip conveyor
tool holder vertical
tool holder horizontal
automatic central lubrication
work lamp
anchor bolts
operating tools
operator manual
