Equipped With
HB 380 L
HB 460 L
HB 560 L
HB 810 L
HB 1020 L
Cutting Capacities
Cutting capacity 90¡ round
15 in
18 in
22 in
32 in
40 in
Cutting capacity 90¡ - square
15 in
18 in
22 in
32 in
40 in
Cutting capacity 90¡ - flat
20x15 in
26x18 in
30x22 in
32x33 in
40x40 in
Cutting capacity 45¡ - round
12 in
15 in
16 in
32 in
27 in
Cutting capacity 45¡ - square
12 in
15 in
16 in
32 in
27 in
Cutting capacity 45¡ - flat
12x15 in
15x18 in
16x22 in
19x33 in
27x40 in
Cutting speed
65.4 - 327 fpm
Drive Capacity
Motor rating main drive
4 Hp
5.4 Hp
5.4 Hp
5.4 Hp
10.1 Hp
Motor rating hydraulic pump
0.7 Hp
0.7 Hp
1.5 Hp
2 Hp
3 Hp
Motor rating coolant pump
0.2 Hp
Measures and Weights
Blade dimensions
188.98x1.34x0.04 in
204.72x1.61x0.05 in
236.22x1.61x0.05 in
322.83x1.61x0.05 in
374.02x2.13x0.06 in
Overall dimensions (length x width x height)
113x66x37 in
123x71x40 in
126x40x81 in
154x48x93 in
178x67x109 in
Weight
2,530 lbs
3,102 lbs
3,850 lbs
5,060 lbs
12,892 lbs

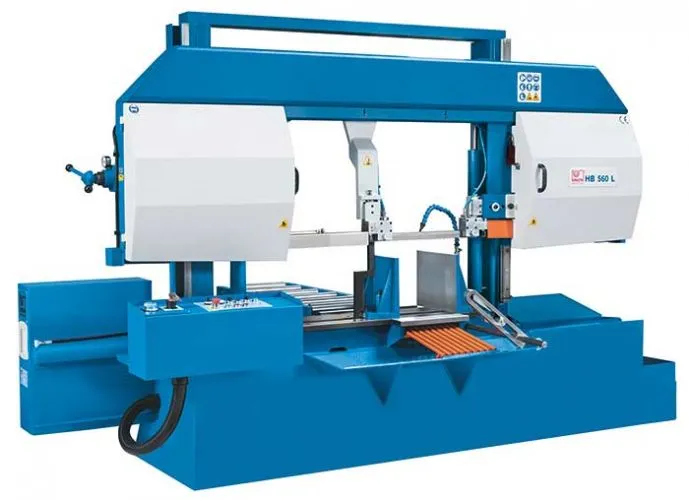

Torsion-proof steel construction with dual-column guide Ð rigid and vibration absorbing
The saw frame features a mono-frame design for travel across large linear guides
Advanced hydraulic saw frame feed with new pressure regulating system (PAS) allows optimum adjustment for every sawing task: infinitely variable feed speed and cutting power control provide a wide spectrum of machining possibilities with just one saw blade type
The control valve features identifications and labeling for sheets, solid materials and various other material types to provide maximum user-friendly handling
Optical registration of the workpiece height allows fully automated empty runs in rapid feed mode for a timely optimum change-over to work feed as well as limiting the vertical saw frame travel and keeping down-times to a minimum
Every model of this series provides infinitely variable cutting speeds from 66 to 328 ft/min
Powerful, low-maintenance motors for high reliability
Hydraulic workpiece clamping is now standard equipment on all models
Pressure gauge ensures correct saw blade tension for increased blade life and lower cost

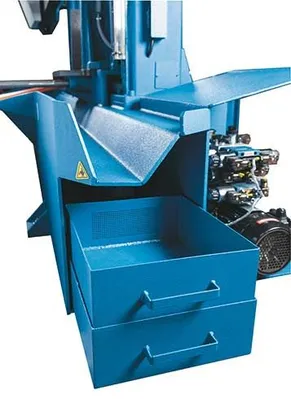

Removable coolant reservoir for simplified maintenance
Hydraulic saw blade tensioning (HB 810 L and 1020 L)
bimetallic band saw blade
hydraulic part clamping
hydraulic workpiece clamping
input / output rollers
automatic stroke height adjustment
automatic stroke height adjustment
coolant system
infinitely variable cutting speed
operator instructions
