Equipped With
KP 70
KP 100
KP 150
KP 200
Working Area
Pressure force
77 t
110 t
165 t
220 t
Stroke
19.7 in
Stroke speed
0.08 in/s
Rapid Feed
Rapid feed
43 in/min
52 in/min
47 in/min
47 in/min
Drive Capacity
Motor rating hydraulic pump
2 Hp
5.4 Hp
4.3 Hp
10.1 Hp
Measures and Weights
Weight
2,420 lbs
3,520 lbs
6,600 lbs
9,460 lbs
Overall dimensions (length x width x height)
67x28x89 in
75x34x91 in
91x60x103 in
91x60x107 in

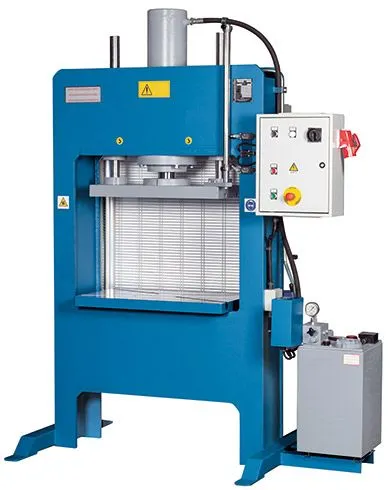

Strong hydraulic cylinder and two circular guides ensure uniform and precise feeding during press operation
Also suitable as try-out press

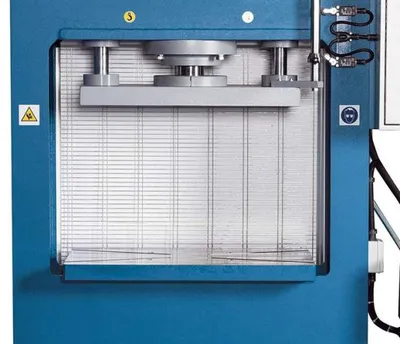

Ram plate and large work table with T-slots for tool clamping
Firmly bolted work table
Adjustable end stop
