Equipped With
ABS 460 L
ABS 380 L
ABS 325 L
ABS 560 L
Cutting Capacities
Cutting capacity 90¡ - flat
19x18 in
17x15 in
14x13 in
22x22 in
Cutting capacity 90¡ round
18 in
15 in
13 in
22 in
Cutting capacity 90¡ - square
18 in
15 in
13 in
22 in
Cutting speed infinitely variable
65 - 327 fpm
Stop length
20 in
Accuracy of the feeding
0.02 in
Drive Capacity
Motor rating main drive
5.4 Hp
4 Hp
3 Hp
5.4 Hp
Motor rating hydraulic pump
0.7 Hp
0.7 Hp
0.7 Hp
1.5 Hp
Motor rating feed
0.3 Hp
0.3 Hp
0.3 Hp
0.7 Hp
Measures and Weights
Overall dimensions (length x width x height)
123x40x71 in
115x38x66 in
97x36x60 in
138x42x81 in
Weight
3,300 lbs
2,750 lbs
1,936 lbs
4,620 lbs
Blade dimensions
204.72x1.61x0.05 in
188.98x1.34x0.04 in
163.78x1.34x0.04 in
236.22x1.61x0.05 in

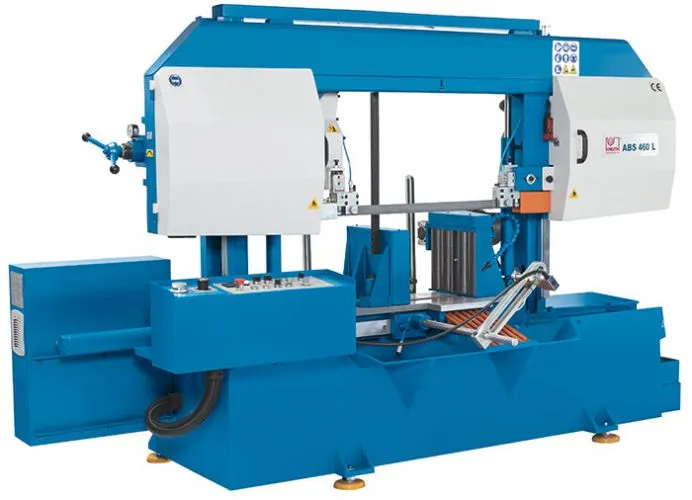

Torsionally rigid machine frame made of a robust steel construction with high-quality linear guides

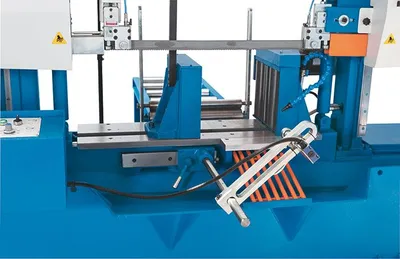

Proven material feed system with hardened workpiece guide rollers and hydraulic workpiece clamping

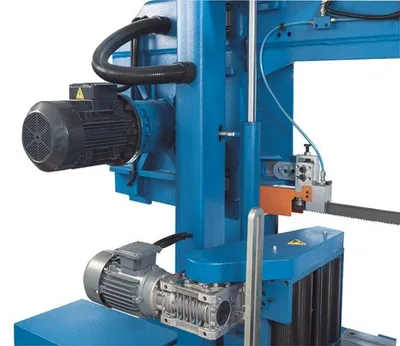

Shorter machining times are made possible by an advanced hydraulic saw frame feed design, including a new pressure control system to master any sawing tasks - infinitely variable setting of feed speed and cutting pressure
All required settings are accessible and clearly labeled at the second control valve for easy adjustments
Optical registration of the workpiece height allows empty runs in rapid feed mode for an optimum change-over to work feed and limiting of the vertical saw frame travel - everything is automated to reduce operator work load
saw-band
parts counter
band break control
coolant system
hydraulic clamping
mechanical saw blade tensioning with hydraulic pressure gauge
feed roller table 47"
linear stop
operator instructions
