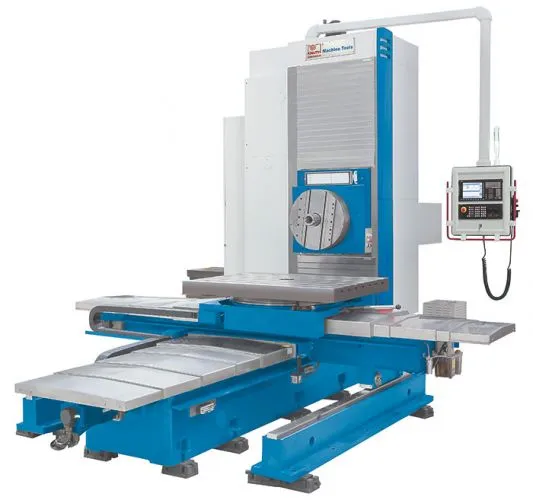

NEW KNUTH BO T 110

Equipped With

BO T 110 CNC
BO T 110 L CNC
Working Area
Drilling capacity
1.97 in
Counterbore diameter (max.)
9 in
Facing slide working diameter (max.)
31 in
Table set up area
52x40 in
Table load capacity
11,000 lbs
Spindle center-to-table distance
0 - 36 in
Number of T-slots
7 positions
T-slots, width
0.9 in
T-slots, spacing
4.9 in
Table rotation range
4 x 90¡
Travels
Travel X-axis
47.2 in
70.9 in
Travel Y-axis
35 in
47 in
Travel Z-axis
51 in
Travel W-axis
22 in
Facing slide travel
5 in
Headstock
Speed range
(2) 12 - 1,100 rpm
Spindle diameter
4 in
Spindle Torque (max.)
9,735 ft.lb.
Spindle mount
BT 50
Facing slide speed
4 - 125 rpm
Rapid Feed
Rapid Feed X-axis
393.7 in/min
Rapid Feed Y-axis
393.7 in/min
Rapid Feed Z-axis
393.7 in/min
Rapid feed W-axis
197 in/min
Rapid Feed U-axis
5 in/min
Feed
Feed X-axis
1 - 39 in/min
Feed Y-axis
1 - 39 in/min
Feed Z-axis
1 - 39 in/min
Feed W-axis
1 - 39 in/min
Facing slide feed
0 - 3 in/min
Accuracies
Positioning accuracy X-axis
0.00157 in
Positioning accuracy Y-axis
0.00157 in
Positioning accuracy W-axis
0.00157 in
Positioning accuracy Z-axis
0.00157 in
Repeatability X-axis
0.00079 in
Repeatability Y-axis
0.00079 in
Repeatability T-axis
0.00079 in
Repeatability W-axis
0.00079 in
Work table rotation accuracy
12 "
Drive Capacity
Motor rating main drive
20.1 Hp
Measures and Weights
Overall dimensions (length x width x height)
217x121x115 in
217x150x130 in
Weight
29,700 lbs
35,200 lbs
The state-of-the-art machine frame is constructed of premium cast-iron to ensure stability and rigidity even under very heavy machining loads
4-side machining is supported by a manually rotated setup table that can can be locked with high precision in 4 positions
The rotary table features a large table center support area that can handle workpiece weights up to 5.5 tons
Spindle and facing slide speeds can be quickly adjusted via an infinitely variable rpm control
Siemens 828D control and drives guarantee high productivity, wide functionality and maximum precision
Excellent functional interaction between hardware and software ensure high dynamics, while motors and drive technologies provide the necessary precision
Precision preloaded ball screws in all axes ensure high accuracy with low wear and maintenance
The powerful 20/ 25 HP motor ensures constant torque across the entire speed infinitely range
Telescoping steel cover protects the guides from chips and dirt
Easy maintenance due to standard central lubrication system
Rotary table with controlled positioning are available as an option
Siemens 828D control
electronic hand-wheel
manual rotary table with 4-position indexing
RS-232 interface
work lamp
central lubrication
operator manual
