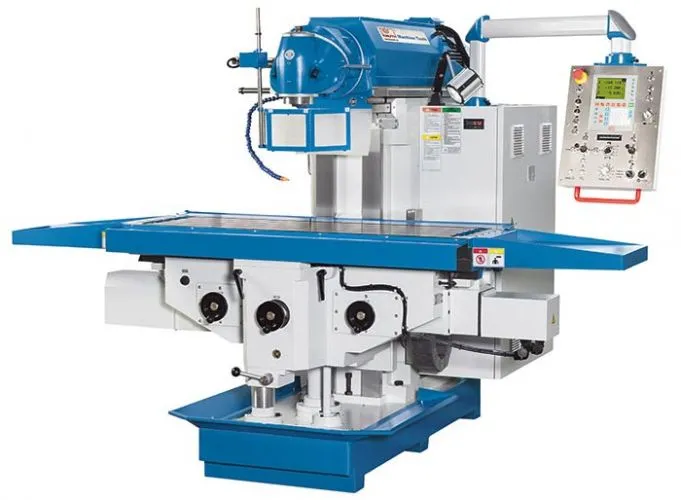

NEW KNUTH SERVOMILL UWF

Equipped With

Servomill¨ UWF 10
Servomill¨ UWF 12
Servomill¨ UWF 15
Working Area
Table dimensions
49x18 in
63x20 in
79x20 in
Table load capacity
1,760 lbs
2,200 lbs
2,200 lbs
Number of T-slots
5 positions
T-slots, width
0.7 in
T-slots, spacing
3.1 in
Travels
Travel X-axis
35.4 in
47.2 in
55.1 in
Travel Y-axis
26 in
28 in
28 in
Travel Z-axis
18 in
20 in
20 in
Milling Head
Speed range (2)
30-390 / 390-2050 rpm
Spindle mount
SK 40 / DIN 2080
SK 50 / DIN 2080
SK 50 / DIN 2080
Swivel angle
360¡
Spindle center-to-table distance
1 - 19 in
2 - 22 in
2 - 22 in
Rapid Feed
Rapid Feed X-axis
86.61 in/min
Rapid Feed Y-axis
86.61 in/min
Rapid Feed Z-axis
43.31 in/min
Feed
Feed speed X-axis
0 - 39 in/min
Feed speed Y-axis
0 - 39 in/min
Feed speed Z-axis
0 - 20 in/min
Drive Capacity
Motor rating main drive
10.1 Hp
14.8 Hp
14.8 Hp
Measures and Weights
Overall dimensions (length x width x height)
79x99x79 in
87x99x83 in
103x99x83 in
Weight
8,800 lbs
9,900 lbs
11,000 lbs
Conventional milling, now easier, more precise and more efficient due to integrated electronics
The Servomill represents a new generation of advanced milling machines that are operated like a conventional machine
This machine features a user-friendly design, significantly higher precision and increased machining capacity
Very high reliability and long service life of all components ensure drastically reduced maintenance and increased reliability

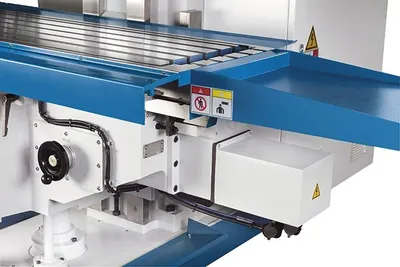

Rigid, torsion-proof construction with dovetail guide on X axis, and wide square guides on Y and Z
Large work table and long travels on all axes
All guides are hardened, ground, and supplied with oil by a central lubrication unit

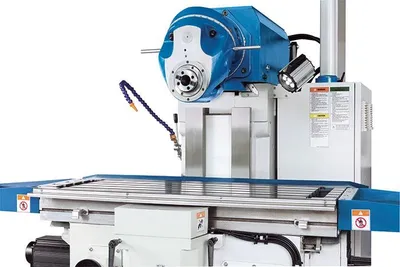

Universal swivel head swings easily to a horizontal position
Infinitely variable feed speeds and rapid feeds can be synchronized to spindle speed by the push of a button
Preloaded ball screw for easy and precise Feeds, and zero backlash
Robust transmission with hardened and ground gears
Servomill - Highlights
Control developed and built in Germany
Positioning control for traveling pre-selected paths on all axes
Zero-backlash preloaded ball screws
Servo motors on all axes, infinitely variable feed, rapid feed, and speed control
Electronic spindle load indicator
Electronic hand-wheels on all axes
X, Y and Z axes can be controlled via joystick
Integrated position indicator with glass scale
Your Advantages:
Easy to use: intuitive operation - practical layout of control elements and streamlined function
Automatic feed on all axes and infinitely variable rapid feed
Set limit stops on any axis with the push of a button - 3 stop positions per axis can be stored
More precise: operated via electronic hand-wheels - axes are powered by high-quality servo drives that translate your hand movements with the precision and dynamics of modern CNC machines
More reliable: drives, spindles, and measuring systems are totally enclosed or mounted in protective enclosures and virtually maintenance-free
Electronics - made in Germany
More capacity: this machine only uses premium drive components that are designed for continuous operation
Maintenance-free: no regular maintenance needed for the entire feed drive
Advanced Feed Technology:
Axes are powered by high-quality servo drives that translate your hand movements with the precision and dynamics of modern CNC machines
Reliable, maintenance-free mass production technology
High rapid feed rate for reduced machine down-times
Ball screw drive on all axes:
Considerably less errors due to loseness (backlash), resulting in significantly higher precision
Significantly reduced friction, no stick-slip effect, reduced heat buildup, minimal wear
Electronic hand-wheels:
Micro-control via electronic hand-wheels offering the same handling and postioning as with a conventional machine, just smoother and more precise
Joystick control:
Maximum operator comfort for axis movements
Easy handling during sequential processing
Electronically controlled fixed stops:
Set 2 limit stops at 3 positions on each axis by the push of a button - these buttons are grouped around the feed switch for intuitive control
This ensures high repeatability during coordinate drilling or pocket cutting, and siginificantly more positions can be set up than on conventional machines
Electronic spindle load indicator:
Assists the operator in the most efficient utilization of machine and tool capacities
Reliable indicator helps avoid damages caused by overloads
X.pos Plus - You will gain productivity,
quality and comfort
Default coordinates
Hole circle pattern calculation
Vibration filter feature
Mm/inch conversion
8 display languages
Calculator function
high-resolution display with excellent legibility
state-of-the art electronics and a very robust, completely sealed enclosure ensure maximum safety and optimum production conditions
a major focus during the development and selection of electronic components was the achievement of maximum resistance against external interferences and maintaining low temperature levels
background colors of the display can be changed as required or desired
the keyboard membrane is highly resistant and yet very comfortable to touch
the display also provides a key to toggle between radius and diameter
the axis position is maintained when the display is turned off
graphical support with residual path display and sketch drawing
linear and non-linear length correction is possible
easy mounting, easy electric connection, and maintenance-free operation
3-axis position indicator
collet chuck with collets (0.16",0.2",0.24",0.31",0.39",0.47",0.55",0.63" diam.)
electronic hand-wheels
LED work lamp
central lubrication
coolant system
operating tools
operator manual
