Equipped With
HPK 100
HPK 40
HPK 70
HPK 150
Working Area
Pressure force
220,000 lbs
88,000 lbs
154,000 lbs
330,000 lbs
Table dimensions
31x24 in
28x20 in
28x20 in
35x24 in
Stroke
19.7 in
Ram-plate size
28x14 in
28x14 in
28x14 in
31x16 in
Stroke speed
0.08 in/s
0.16 in/s
0.08 in/s
0.12 in/s
Rapid Feed
Rapid feed
52 in/min
69 in/min
47 in/min
47 in/min
Measures and Weights
Overall dimensions (length x width x height)
48x75x103 in
40x60x99 in
48x60x99 in
60x87x119 in
Weight
7,480 lbs
3,300 lbs
4,620 lbs
12,100 lbs
Large ram plates and work tables for large workpieces or multiple clamping

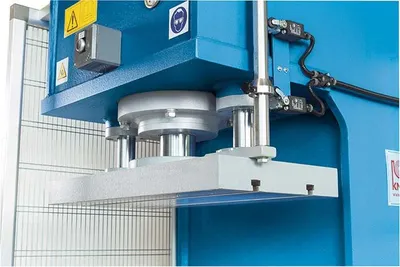

Strong hydraulic cylinder and two circular guides ensure uniform and precise feeding during press operation
Ideal for die pressing, blanking, bending and much more
Stroke length with quick adaption to next tool
Ram plate and work table with T-slots for tool clamping
Firmly bolted work table
Advance and reverse jog operation for easy machine set-up
Stroke limit adjustable by micro-switch
Optimum table height
2-stage hydraulic pump
ram plate and work table with T-slots
adjustable ram stroke
pressure gauge
manual control lever
operator manual
