Equipped With
Mark Super S
Mark Super SV
Working Area
Table dimensions
31x9 in
Drilling capacity in steel
1 in
Guide width
7 in
5 in
Shaft milling
1.26 in
0.98 in
Head elevation
14 in
15 in
Number of table T-slots
3 positions
T-slot table (width x spacing)
0.55x3.15 in
Travels
Travel X-axis manual / autom.
19 / 22 in
Travel Y-axis
7 in
Vertical Milling Head
Spindle mount
MT 4
Quill stroke
5 in
Quill diameter
3 in
Spindle nose-to-table distance
18 in
Throat
10 in
Head swivel range
± 45¡
Speed
(12) 75-3200 rpm
(2) 75-438 / 438-2500 rpm
Drive Capacity
Main motor rating
2 / 1.5 Hp
2 Hp
Measures and Weights
Overall dimensions (length x width x height)
50x38x56 in
49x37x83 in
Weight
836 lbs
1,056 lbs

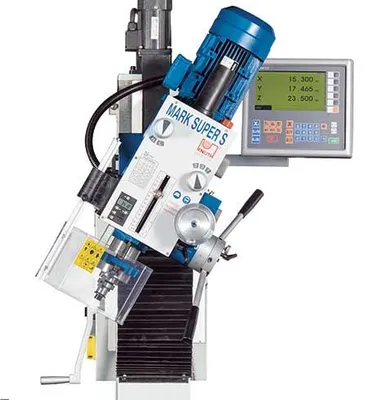

Mark Super S¥ SV
Motorized cutter head movement and hand-wheel for exact positioning of head

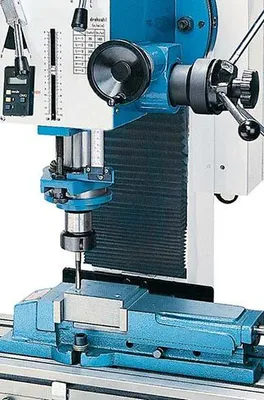

Hand-wheel for quill micro-feed
Digital depth indicator for quill travel
Tapping unit with adjustable rotation reversal for thread cutting
Hardened gear racks and shafts for quiet operation and long life
Rigid base with storage room is included
Infinitely variable feed on X-axis is included
Mark Super SV - more power and variable speed control for a wider range of applications
Two gear steps and premium frequency control technology ensure high torque across the entire speed range for powerful machining
The selected spindle speed is displayed directly on the control panel
3-axis position indicator
automatic quill feed
base
table feed TV 1000
drill chuck 1/2"
tool-holder bits
operator manual
