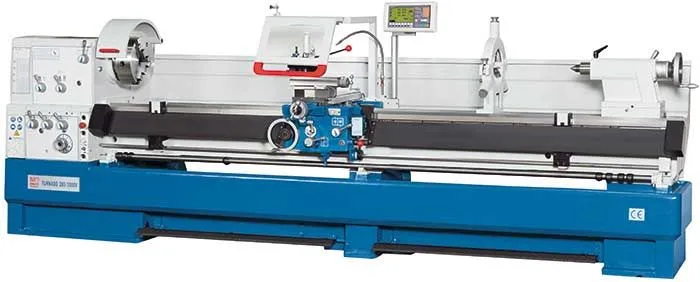

Equipped With
Turnado 230/1000
Turnado 230/1500
Turnado 280/1500
Turnado 230/2000
Turnado 280/2000
Working Area
Workpiece length (max.)
39 in
59 in
56 in
79 in
76 in
Turning diameter over bed
18 in
18 in
22 in
18 in
22 in
Turning-¯ over support
9 in
9 in
14 in
9 in
14 in
Turning diameter over gap bridge
27 in
27 in
31 in
27 in
31 in
Gap bridge length
6 in
6 in
7 in
6 in
7 in
Bed width
12 in
12 in
14 in
12 in
14 in
Details
Equipment
with position indicator
Travels
Travel X-axis
11.2 in
11.2 in
12.4 in
11.2 in
12.4 in
Travel Z1-axis
5 in
Swing range of top slide
± 52¡
Headstock
Spindle speed
(12) 25 - 2,000 rpm
(12) 25 - 2,000 rpm
(12) 25 - 1,600 rpm
(12) 25 - 2,000 rpm
(12) 25 - 1,600 rpm
Spindle bore
2 in
2 in
3 in
2 in
3 in
Spindle mount
Camlock D1-6
Camlock D1-6
Camlock D1-8
Camlock D1-6
Camlock D1-8
Spindle taper
MT 6
MT 6
MT 7
MT 6
MT 7
Feed
Feed X-axis
0.00055 - 0.03087 in/R
0.00055 - 0.03087 in/R
0.00079 - 0.02256 in/R
0.00055 - 0.03087 in/R
0.00079 - 0.02256 in/R
Feed Z-axis
0.00122 - 0.06693 in/R
0.00122 - 0.06693 in/R
0.00232 - 0.0648 in/R
0.00122 - 0.06693 in/R
0.00232 - 0.0648 in/R
Tapping
Tapping, metric
(47) 0 - 0.55 in
(47) 0 - 0.55 in
(47) 0.01 - 0.55 in
--
(47) 0.01 - 0.55 in
Tapping, diametric
(50) 4-112 DP
Tapping, module
(39) 0 - 0.28 in
Tapping, withworth
(60) 2-112 TPI
Tailstock
Tailstock quill diameter
2 in
2 in
3 in
2 in
3 in
Tailstock taper
MT 4
MT 4
MT 5
MT 4
MT 5
Tailstock quill stroke
5 in
5 in
7 in
5 in
7 in
Tailstock traverse adjustment
± 13 in
± 13 in
± 12 in
± 13 in
± 12 in
Drive Capacity
Motor rating main drive
7.4 Hp
Measures and Weights
Overall dimensions (length x width x height)
87x43x53 in
109x43x53 in
112x46x53 in
128x43x53 in
132x46x58 in
Weight
3,784 lbs
4,334 lbs
5,214 lbs
4,620 lbs
5,984 lbs
Cost-effective, lasting value

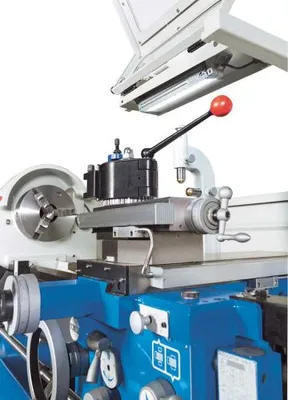

Practically arranged control panel with ergonomic layout of selection levers
Wide bed, ground and hardened
Offset tailstock for taper turning
Large number of thread leads

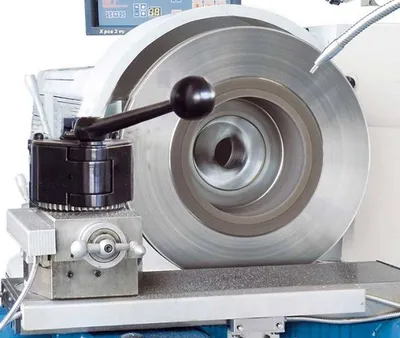

Removable gap bridge for machining of large diameter
Stop spindle with adjustable travel stops
3-axis position indicator
Resulting in valuable time savings
For increased productivity
Easy to read display
Operator-specific features
Convenient keyboard layout
Resolution: 0.0004 / 0.0002"
Default coordinates
Axis position is maintained when display is turned off
Hole circle pattern calculation
Calculator function
Storage for 10 tools
Radius / diameter toggle
Mm/inch conversion
Easy expansion and maintenance-free operation
Display for top (Z0) and box way slide (Z1) both separate and in differential / cumulative mode for lathes
3-axis position indicator
3-jaw chuck ¯ 12 inch
4-jaw face chuck ¯ 14 inch
face plate ¯ 17.7"
Quick tool changer head WC
Quick change tool holder WCD 32150
coolant system
steady and follow rest
stop spindle
includes fixed splash guard (wall)
chuck guard
foot brake pedal
LED work lamp
reducing sleeve
dead center
thread gauge
operating tools
operator manual
