Equipped With
Plasma-Jet Compact 1530 H
Plasma-Jet Compact 2040 H
Plasma-Jet Compact 3060 H
Working Area
Cutting Width
59 in
79 in
118 in
Cutting length
118 in
157 in
236 in
Table height
24 in
Table load capacity
84 lbs/ft?
Rapid feed
709 in/min
Weight (without plasma source)
4,950 lbs
7,810 lbs
17,600 lbs

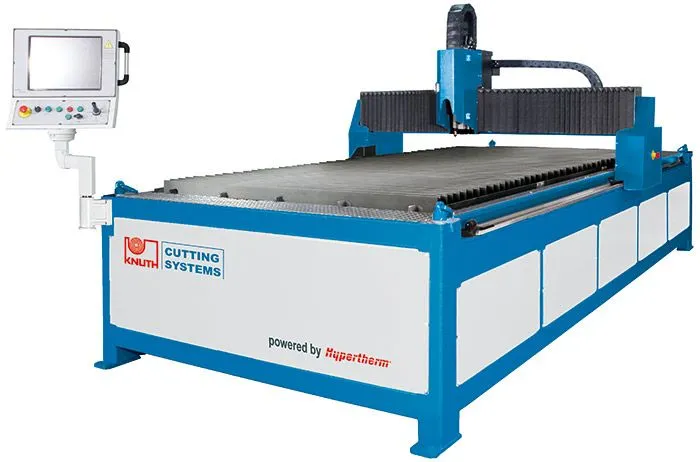

The Plasma-Jet TrueCut series set themselves apart from the Plasma-Jet Compact series by a fully integrated machine frame that is connected to the table via a bottom plate, so the machine can be transported in one piece and requires minimum space
If small plasma sources (e.g. Powermax) are used, they also are stored on a shelf inside the frame
The standard equipment includes the same high-quality components as the larger series: dual-drive bridge, high-quality linear guides, dynamic AC servo-drives, helical gears, automatic torch height control, magnetic cutter head holder serving as collision guard, optimum cutting data preset in the control.
These machines provide the same excellent cutting performance as the Plasma-Jet TrueCut series
Table is prepared for filter system (automatic closure control)
Panasonic servo-motors and drives
Automatic torch height control with Hypertherm THC sensor
Cutter torch with magnetic coupling and crash sensor
Hypertherm Edge Connect CNC Unit
19 ÓTouchscreen von ELO
Ethercat-E
Laser pointer

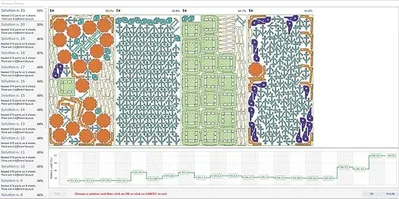

Libellula Wizard PRO
Libellula.CAD 2D
