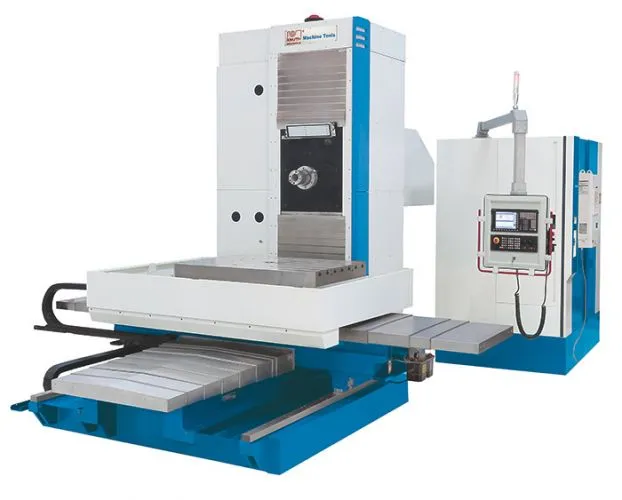

NEW KNUTH BO T 130

Equipped With

BO T 130 CNC
BO T 130 L CNC
Working Area
Drilling capacity
1.97 in
Counterbore diameter (max.)
10 in
Table set up area
53x39 in
Table load capacity
11,000 lbs
Spindle center-to-table distance
0 - 47 in
Number of T-slots
7 positions
T-slots, width
0.9 in
T-slots, spacing
4.9 in
Table indexing
5 deg
Travels
Travel X-axis
51.2 in
63 in
Travel Y-axis
47 in
Travel Z-axis
47 in
Travel W-axis
22 in
Headstock
Speed range
(2) 12 - 1,200 rpm
Spindle diameter
5 in
Spindle Torque (max.)
13,275 ft.lb.
Spindle mount
BT 50
Facing slide speed
4 - 125 rpm
Rapid Feed
Rapid Feed X-axis
393.7 in/min
Rapid Feed Y-axis
393.7 in/min
Rapid Feed Z-axis
393.7 in/min
Rapid feed W-axis
197 in/min
Rapid feed B-axis
0.22 in/min
Feed
Feed X-axis
0 - 79 in/min
Feed Y-axis
0 - 79 in/min
Feed Z-axis
0 - 79 in/min
Feed W-axis
0 - 79 in/min
Accuracies
Positioning accuracy X-axis
0.00157 in
Positioning accuracy Y-axis
0.00157 in
Positioning accuracy W-axis
0.00157 in
Positioning accuracy Z-axis
0.00157 in
Repeatability X-axis
0.00079 in
Repeatability Y-axis
0.00079 in
Repeatability T-axis
0.00079 in
Repeatability W-axis
0.00079 in
Work table rotation accuracy
10 "
Work table repeatability
4 "
Drive Capacity
Main motor rating
23 / 27 Hp
Measures and Weights
Overall dimensions (length x width x height)
280x260x142 in
280x276x142 in
Weight
38,500 lbs
40,700 lbs
The large, heavily ribbed box-column base is made of premium cast-iron to ensure stability and rigidity even under very heavy machining loads
The massive machine frame features wide guideways is design for table loads up to 5.5 tons
The rotating setup table allows flexible 4-sided machining of workpieces without changing the setup
The rotary table can be locked in 4 positions with high positionally precision and features manual clamping fixtures
The powerful 25/29 HP motor ensures constant torque across the entire speed infinitely range
The Siemens 828D CNC-ensures high productivity and precision during production
Excellent functional interaction between hardware and software ensure high dynamics, while motors and drive technologies provide the necessary precision
Telescoping stainless steel covers protect the guides from chips and dirt
Precision preloaded ball screws in all axes ensure high accuracy with low wear and maintenance
Easy maintenance due to standard central lubrication system
Optionally, the machine can be equipped with a tool changer and a controlled indexing rotary table
Siemens 828D control
electronic hand-wheel
manual rotary table with 4-position indexing
RS-232 interface
work lamp
central lubrication
operator manual
