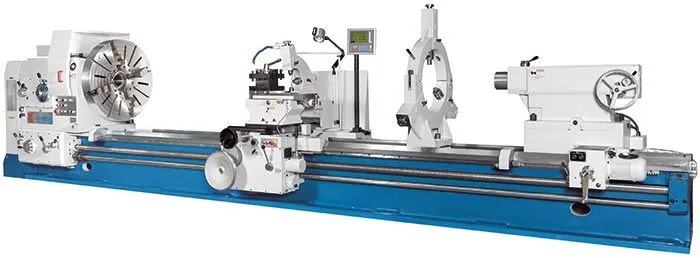

NEW KNUTH DL E HEAVY

Equipped With

DL E Heavy 500/3000
DL E Heavy 500/5000
DL E Heavy 500/8000
DL E Heavy 620/3000
DL E Heavy 620/5000
DL E Heavy 800/3000
DL E Heavy 800/5000
DL E Heavy 800/8000
DL E Heavy 1000/2000
DL E Heavy 1000/5000
DL E Heavy 1000/8000
DL E Heavy 500/1500
DL E Heavy 620/1500
DL E Heavy 1000/3000
DL E Heavy 620/8000
Working Area
Workpiece length (max.)
118 in
197 in
315 in
118 in
197 in
118 in
197 in
315 in
79 in
197 in
315 in
59 in
59 in
118 in
315 in
Turning diameter over bed
39 in
39 in
39 in
49 in
49 in
63 in
63 in
63 in
79 in
79 in
79 in
39 in
49 in
79 in
49 in
Turning-¯ over support
26 in
26 in
26 in
35 in
35 in
50 in
50 in
50 in
63 in
63 in
63 in
26 in
35 in
63 in
35 in
Work piece weight (max.)
13,200 lbs
13,200 lbs
13,200 lbs
13,200 lbs
13,200 lbs
13,200 lbs
13,200 lbs
13,200 lbs
22,000 lbs
22,000 lbs
22,000 lbs
13,200 lbs
13,200 lbs
22,000 lbs
13,200 lbs
Bed width
30 in
30 in
30 in
30 in
30 in
38 in
38 in
38 in
43 in
43 in
43 in
30 in
30 in
43 in
30 in
Travels
Travel X-axis
20.1 in
20.1 in
20.1 in
24.8 in
24.8 in
32.3 in
32.3 in
32.3 in
40.2 in
40.2 in
40.2 in
20.1 in
24.8 in
40.2 in
24.8 in
Travel Z-axis
110 in
189 in
307 in
110 in
189 in
110 in
189 in
307 in
71 in
189 in
307 in
51 in
51 in
110 in
307 in
Travel Z1-axis
12 in
12 in
12 in
12 in
12 in
8 in
8 in
8 in
8 in
8 in
8 in
12 in
12 in
8 in
12 in
Swing range of top slide
± 180¡
Headstock
Spindle speeds (right)
(21) 3.15 - 315 rpm
(21) 3.15 - 315 rpm
(21) 3.15 - 315 rpm
(21) 3.15 - 315 rpm
(21) 3.15 - 315 rpm
(21) 2.5 - 250 rpm
(21) 2.5 - 250 rpm
(21) 2.5 - 250 rpm
(21) 2 - 200 rpm
(21) 2 - 200 rpm
(21) 2 - 200 rpm
(21) 3.15 - 315 rpm
(21) 3.15 - 315 rpm
(21) 2 - 200 rpm
(21) 3.15 - 315 rpm
Spindle speeds (left)
(12) 3.15 - 315 rpm
(12) 3.15 - 315 rpm
(12) 3.15 - 315 rpm
(12) 3.15 - 315 rpm
(12) 3.15 - 315 rpm
(12) 3.15 - 250 rpm
(12) 3.15 - 250 rpm
(12) 3.15 - 250 rpm
(12) 2.5 - 200 rpm
(12) 2.5 - 200 rpm
(12) 2.5 - 200 rpm
(12) 3.15 - 315 rpm
(12) 3.15 - 315 rpm
(12) 2.5 - 200 rpm
(12) 3.15 - 315 rpm
Spindle bore
5 in
Spindle mount
A2-15
Rapid Feed
Rapid Feed X-axis
73.62 in/min
Rapid Feed Z-axis
147.24 in/min
Feed
Feed X-axis
0.00252 - 0.47244 in/R
Feed Z-axis
0.00126 - 0.23622 in/R
Feed Z1-axis
0 - 0.12 in/R
Tapping
Tapping, metric
(45) 0.04 - 4.72 in
Tapping, diametric
(42) 30 - 1/4 DP
(42) 30 - 1/4 DP
(42) 30 - 1/4 DP
(42) 30 - 1/4 DP
(42) 30 - 1/4 DP
(42) 30 - 1/4 DP
(42) 30 - 1/4 DP
(42) 30 - 1/4 DP
(42) 30 - 1/4 DP
(42) 30 - 1/4 DP
(42) 30 - 1/4 DP
(42) 30-1/4 DP
(42) 30 - 1/4 DP
(42) 30 - 1/4 DP
(42) 30 - 1/4 DP
Tapping, module
(46) 0.02 - 2.36 in
Tapping, withworth
(48) 0,5 - 60 TPI
(48) 0,5 - 60 TPI
(48) 0,5 - 60 TPI
(48) 0,5 - 60 TPI
(48) 0,5 - 60 TPI
0.5 - 60 (48) TPI
(48) 0.5 - 60 TPI
(48) 0,5 - 60 TPI
(48) 0,5 - 60 TPI
(48) 0,5 - 60 TPI
(48) 0,5 - 60 TPI
(48) 0,5-60 TPI
(48) 0,5 - 60 TPI
(48) 0,5 - 60 TPI
(48) 0,5 - 60 TPI
Tailstock
Tailstock quill diameter
6 in
6 in
6 in
6 in
6 in
6 in
6 in
6 in
8 in
8 in
8 in
6 in
6 in
8 in
6 in
Tailstock quill taper
metric 80
metric 80
metric 80
metric 80
metric 80
metric 80
metric 80
metric 80
MT 6
metric 80
metric 80
metric 80
metric 80
metric 80
metric 80
Tailstock quill stroke
12 in
Tailstock traverse adjustment
± 0.1 in
Drive Capacity
Motor rating main drive
29.5 Hp
29.5 Hp
29.5 Hp
29.5 Hp
29.5 Hp
29.5 Hp
29.5 Hp
29.5 Hp
40.2 Hp
40.2 Hp
40.2 Hp
29.5 Hp
29.5 Hp
40.2 Hp
29.5 Hp
Measures and Weights
Overall dimensions (length x width x height)
241x72x71 in
319x72x71 in
438x72x71 in
241x75x76 in
319x75x76 in
238x82x88 in
317x82x88 in
435x82x88 in
205x87x95 in
319x87x95 in
509x94x99 in
182x73x71 in
182x72x71 in
241x87x95 in
438x75x76 in
Weight
23,870 lbs
27,830 lbs
35,420 lbs
25,410 lbs
29,260 lbs
28,380 lbs
35,640 lbs
46,244 lbs
28,600 lbs
51,040 lbs
66,176 lbs
20,570 lbs
21,450 lbs
40,700 lbs
36,960 lbs
Powerful 29-HP motor ensures very high chip removal capacity
Heavy, large cast-iron body and machine bed with strong ribbing to reduce vibrations to a minimum
Induction hardened and ground guideways
Sturdy multi-disk clutch for headstock drive
Separate rapid feed motor for feed in X and Z-axis
Joystick control for X and Z feeds is mounted directly to support
Motorized positioning of tailstock (all models with a minimum center width of 118 inch)
Large spindle bearings
Includes completely assembled 3-axis position indicator
Overload clutch enclosed in apron
3-axis position indicator
More accuracy
Lower error rate
Increased productivity
Resulting in valuable time savings
For increased productivity
Easy to read display
Operator-specific features
Convenient keyboard layout
Resolution: 0.0004 / 0.0002"
Default coordinates
Axis position is maintained when display is turned off
Hole circle pattern calculation
Calculator function
Storage for 10 tools
Radius / diameter toggle
Mm/inch conversion
Easy expansion and maintenance-free operation
Display for top (Z0) and box way slide (Z1) both separate and in differential / cumulative mode for lathes
3-axis position indicator
4-jaw face plate chuck ¯ 40"
coolant system
follow rest 2" - 9"
steady rest 2" - 23"
motorized tailstock
LED work lamp
center points
reducing sleeves
foundation bolts
central lubrication
operating tools
operator instructions
