Equipped With

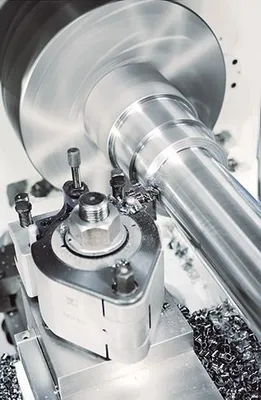

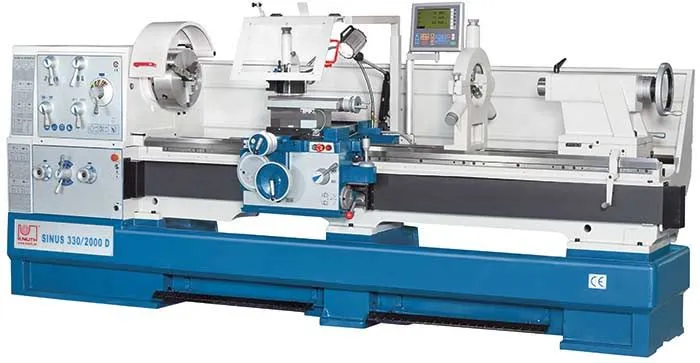

Sinus 330/1500 D
Sinus 330/2000 D
Sinus 330/3000 D
Sinus 400/2000 D
Sinus 400/1500 D
Sinus 400/3000 D
Working Area
Workpiece length (max.)
59 in
79 in
118 in
79 in
59 in
118 in
Turning diameter over bed
26 in
26 in
26 in
31 in
31 in
31 in
Turning-¯ over support
17 in
17 in
17 in
22 in
22 in
22 in
Turning diameter without gap bridge
35 in
35 in
35 in
41 in
41 in
41 in
Gap bridge length
13 in
Bed width
16 in
Travels
Travel X-axis
14.5 in
14.5 in
14.5 in
16.5 in
16.5 in
16.5 in
Travel Z1-axis
9 in
Swing range of top slide
45¡
45¡
45¡
70¡
70¡
70¡
Headstock
Spindle speed
(16) 25 - 1,600 rpm
Spindle bore
4 in
Spindle mount
D1-8
Spindle taper
MT 5
Rapid Feed
Rapid Feed X-axis
78.74 in/min
Rapid Feed Z-axis
157.48 in/min
Feed
Feed X-axis
(25) 0.00087 - 0.02913 in/R
Feed Z-axis
(25) 0.00173 - 0.05827 in/R
Tapping
Tapping, metric
(54) 0,45 - 120 mm
(54) 0,45 - 120 mm
(54) 0.02 - 5 in mm
(54) 0.018 - 4.72 in mm
(54) 0,45 - 120 mm
(54) 0.45 - 120 mm
Tapping, diametric
(42) 0,88 - 160 DP
Tapping, module
(46) 0.01 - 2.36 in
Tapping, withworth
(54) 7/16 - 80 TPI
Tailstock
Tailstock quill diameter
4 in
Tailstock taper
MT 5
Tailstock quill stroke
9 in
Tailstock traverse adjustment
±0,5 in in
± 0,5 in in
± 12,5 in
± 0,4 in in
± 11 in
± 11 in
Drive Capacity
Motor rating main drive
10.1 Hp
Measures and Weights
Overall dimensions (length x width x height)
127x49x63 in
147x49x63 in
186x49x63 in
148x45x76 in
128x45x45 in
187x45x76 in
Weight
6,160 lbs
6,380 lbs
7,260 lbs
7,700 lbs
7,084 lbs
8,514 lbs
Removable bridge for machining of large parts
High accuracy and low-noise operation even at high cutting power
Heavy and large bed
Hardened guide ways (>HB 400)
4 in spindle capacity for machining of large parts
Manual central lubrication
clutch for soft startup with heavy parts
Automatic lubrication of headstock and main drive
Protected lead screw
Overload protection for feed shaft and lead screw
Support moves in linear and cross direction via rapid feed
3-axis position indicator
More accuracy
Lower error rate
Increased productivity
Resulting in valuable time savings
For increased productivity
Easy to read display
Operator-specific features
Convenient keyboard layout
Resolution: 0.0004 / 0.0002"
Default coordinates
Axis position is maintained when display is turned off
Hole circle pattern calculation
Calculator function
Storage for 10 tools
Radius / diameter toggle
Mm/inch conversion
Easy expansion and maintenance-free operation
Display for top (Z0) and box way slide (Z1) both separate and in differential / cumulative mode for lathes
3-axis position indicator
3-jaw chuck ¯ 13"
4-jaw chuck (15" diam.) face plate ¯ 23"
face plate ¯ 20"
dog plate
quick tool changer head WD
quick change tool holder WD1D 40180
fixed splash guard (wall)
coolant system
steady and follow rests
taper turning unit
chuck guard
LED work lamp
reducing sleeves
dead center
operating tools
operator instructions
