Equipped With

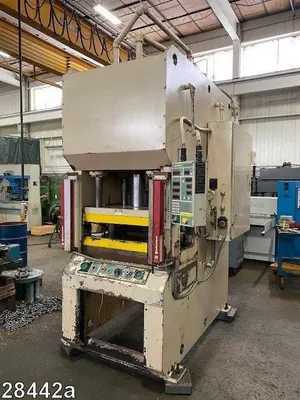

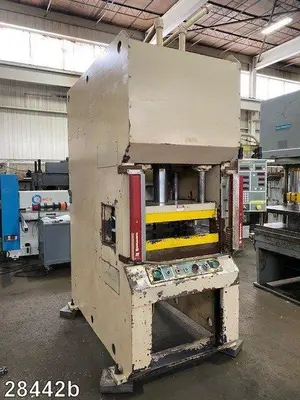

65 TON GREENERD HCT-65 HYDRAULIC PRESS

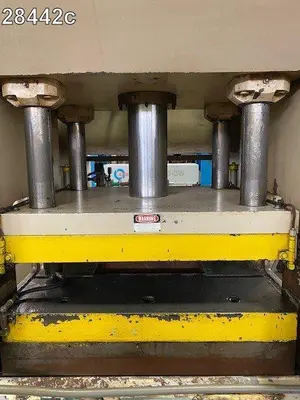

With 4-post guided slide
Straight side; downstroke type; floor standing
Distance between side housings: 34" L-R
Area of bed (nominal): 32" L-R x 28" F-B (T-slotted)
Area of slide (nominal): 32" L-R x 27" F-B (T-slotted)
Windows: 14" L-R
Stroke of 4 post guided slide: 0-10" maximum
Daylight opening (total) approx.: 14.5" maximum
Main ram diameter: 8"/5.5" @ 2588 PSI - 65 tons
Floor to top of bed: 43"

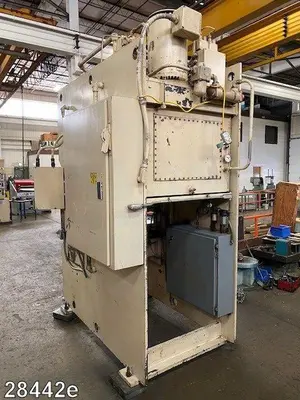

Power unit (top of press): Submerged hydraulic pump, driven by
30 HP 1760 RPM 230/460/3/60 motor

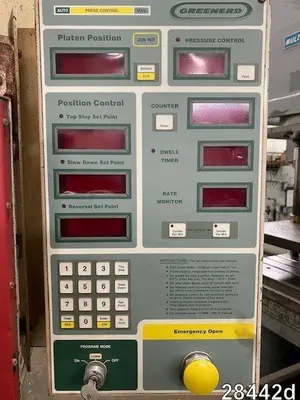

Controls: Pushbutton operation with stroke &
pressure control
Dual palm buttons
Selector switch for manual or
semi-automatic operation
Dwell timer
Pressure gauge
Press controlled via PLC
Weight approx. 17,000 lbs.
Overall dimensions approx. 60" L-R x 88" F-B x 124" H
