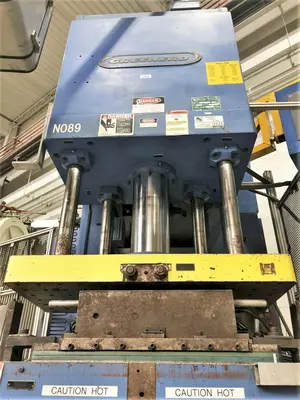

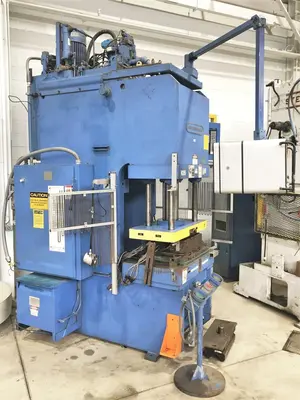

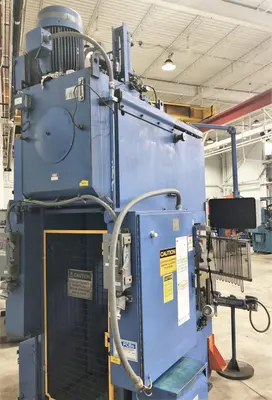

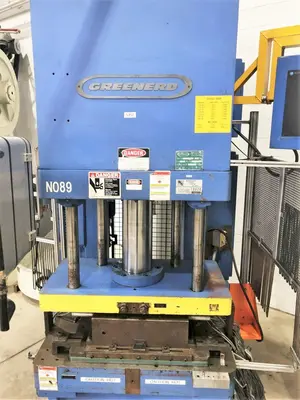

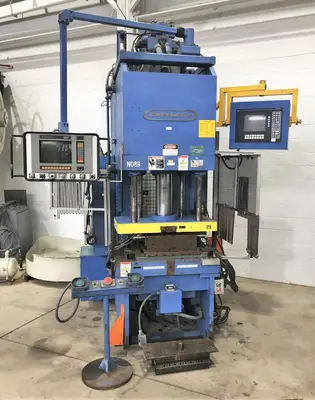

100 TON GREENERD MODEL HCA-100-60L12 JOGGLE C-FRAME HYDRAULIC PRESS

Equipped With
100 TON GREENERD MODEL HCA-100-60L12 JOGGLE C-FRAME HYDRAULIC PRESS
NEW 1990
CAPACITY
100 TONS
MAX. STROKE
APPROX. 20″
MAX. DAYLIGHT TO BED
APPROX. 30″
BED AREA
42″ X 27″ (RL X FB)
RAM AREA
40″ X 20″ (RL X FB)

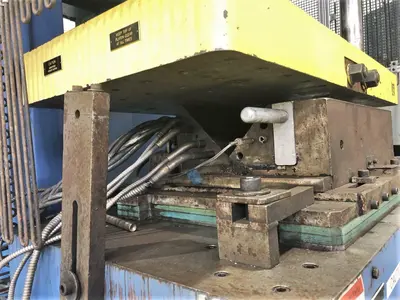

BOLSTER PLATE
42″ X 27″ (RL X FB) X 6″ THICK SOLID BOLSTER PLATE
CYLINDER SIZE
—
RAM SIZE
6.5″ DIA. BORE

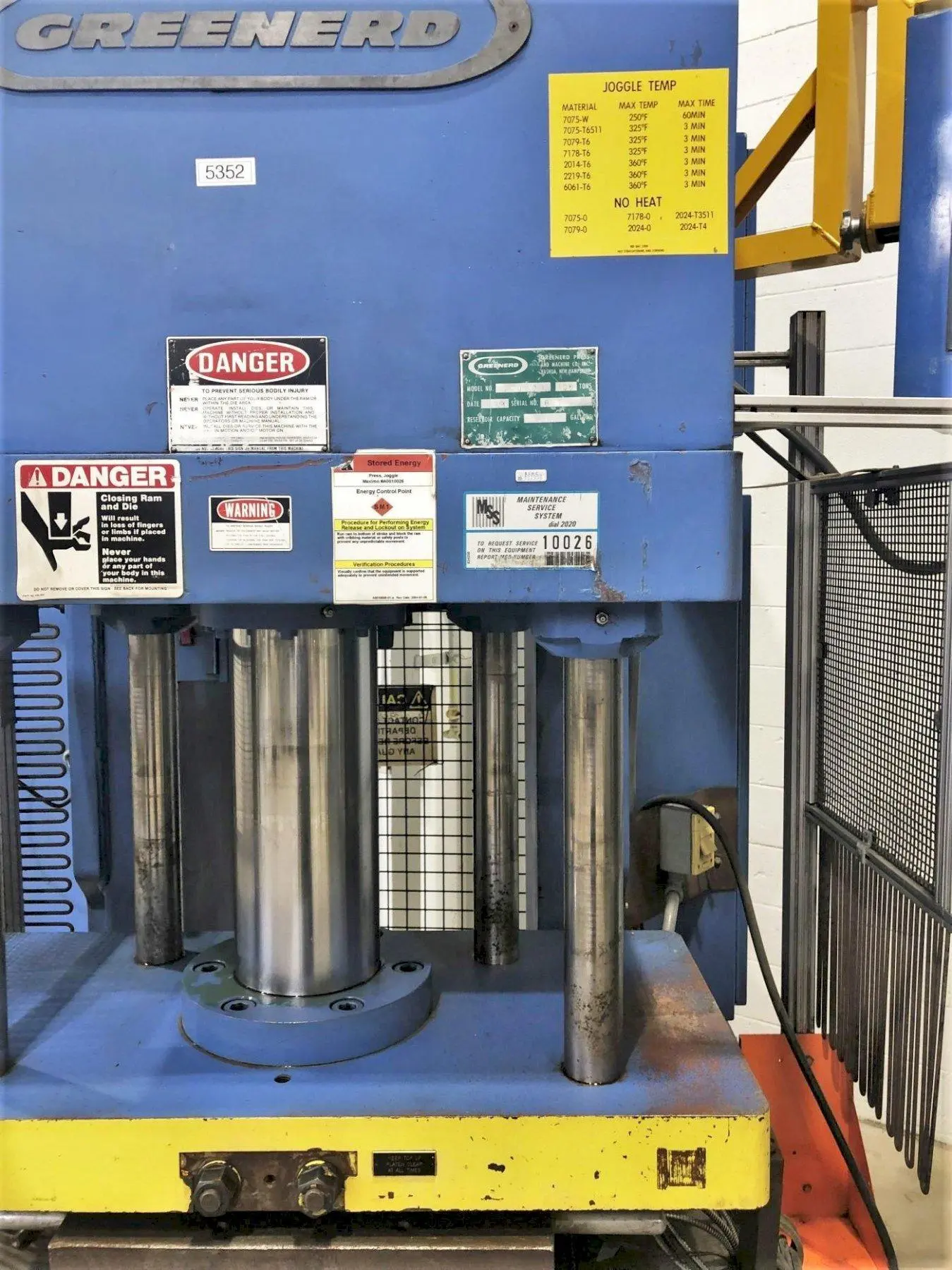

GUIDE POSTS
FOUR 2.5″ DIA. GUIDES
THROAT DEPTH
16″
FLOOR TO BED
32″
DISTANCE BETWEEN UPRIGHTS
24″
SPEED
—

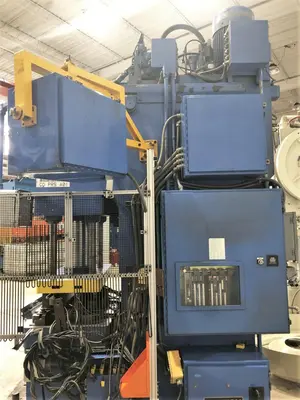

HYDRAULICS
200 GALLON RESERVOIR CAPACITY

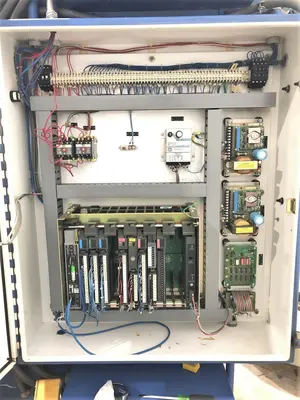

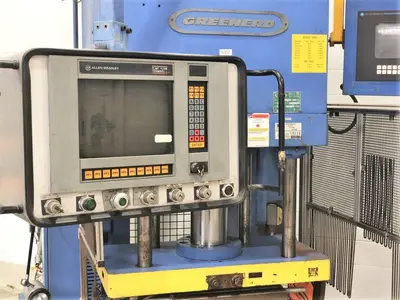

PRESS CONTROLS

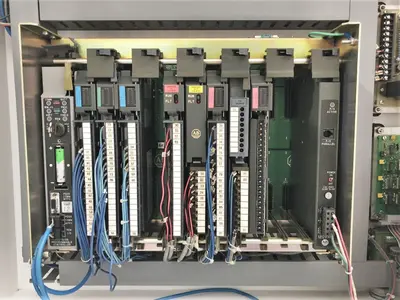

ALLEN-BRADLEY PLC-5/25 PROGRAMMABLE CONTROLLER

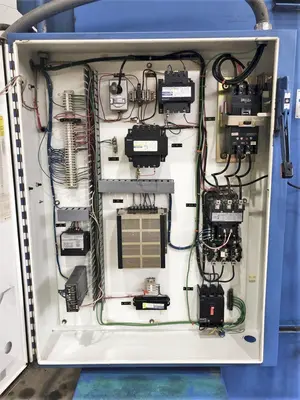

ELECTRICS
—
JOGGLE TEMPERATURE
325 DEG. F
APPROX. DIMENSIONS
78″ X 93″ (RL X FB) X 148″ HIGH
