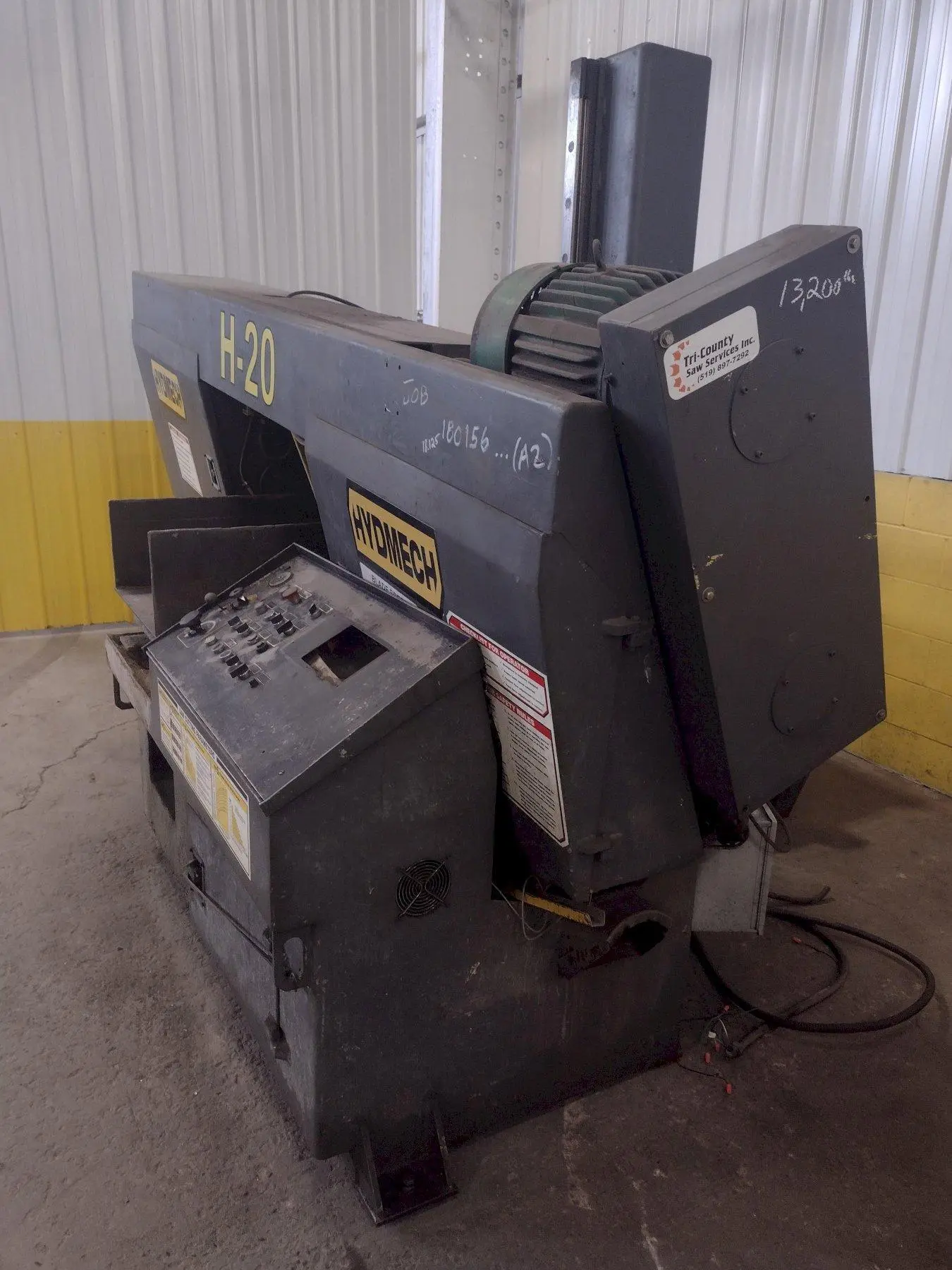

USED 1995 HYD-MECH H-20AC

Equipped With
20" X 20" HYD-MECH MODEL H-20AC AUTOMATIC HORIZONTAL BAND SAW
NEW 1995
EQUIPPED WITH:
HYD-MECH PLC PROGRAMMABLE CONTROL W/INDEPENDENT AND
VARIABLE CONTROL OF HEAD FEED RATE AND FEED FORCE
AUTOMATIC MULTI-INDEXING UP TO 35" IN A SINGLE STROKE
10-HP DIRECT BLADE DRIVE
AUTOMATIC CHIP REMOVAL AUGER
HYDRAULIC BLADE TENSION - HYDRAULIC VISE CONTROL
SPECIFICATIONS:
ROUND STOCK CAPACITY, MAXIMUM 20"
SQUARE STOCK CAPACITY, MAXIMUM 20" X 20"
WORKLOAD, MAXIMUM 10000 LBS
TABLE HEIGHT 36"
BAND LENGTH 22'2"
BAND WIDTH 2"
BAND THICKNESS .050"
BAND CARRIER WHEELS, DIAMETER 27"
BAND SPEEDS, VARIABLE 45 TO 265 SFPM
SHUTTLE STROKE, RANGE 0 TO 35"
BLADE MOTOR, HORSEPOWER 10 HP
HYDRAULIC MOTOR, HORSEPOWER 3 HP
