Equipped With

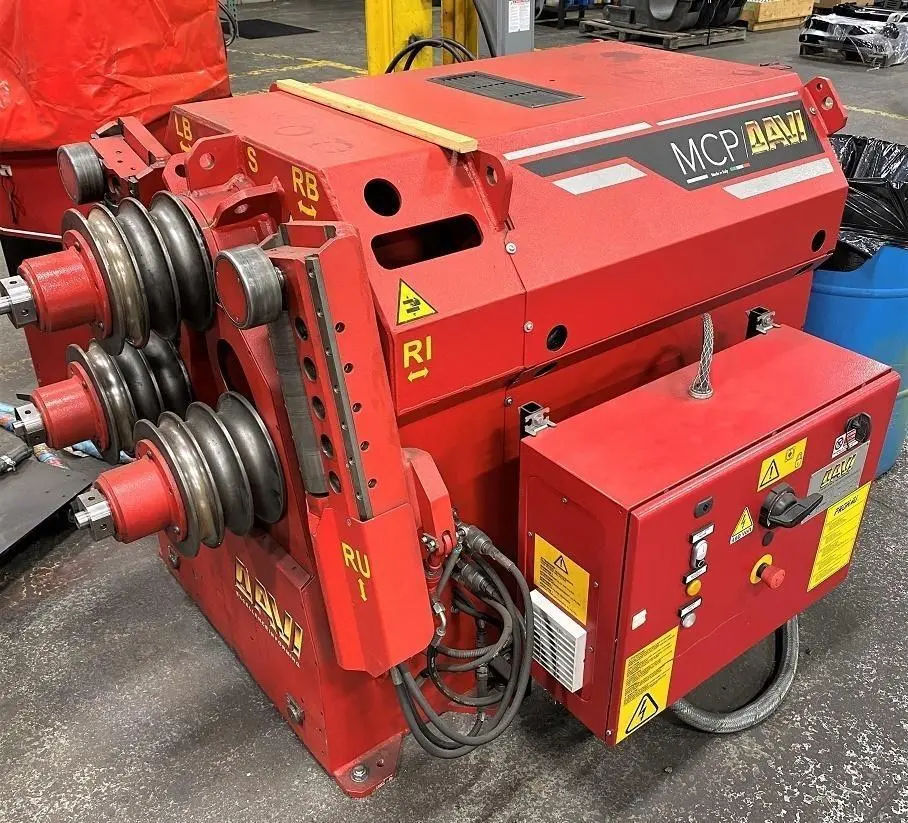

3" X 3" X 3/8" DAVI MODEL MCP9 ANGLE BENDING ROLL
New 2018
Motor Driven with 10 HP, 3-Phase, 60 Cycle, AC Motor and Controls
SPECIFICATIONS:
External Roll Diameter 9-27/32"
Shafts 3-11/32" * 3-11/32"
Section Modulus 1.9 - 1.9
Flat on Edge 3-1/2" x 3/4" x 30"
Flat on Flat 7"x 3/4" 20"
Square Bar 2" x 2" x 22"
Round Bar 2-1/2" 30"
Angle Leg Out 3" x 3" x3/8" #33
Angle Leg In 3" x 3" x 3/8" #40
T Section Leg Out WT 3" x 12.5" #30
T Section Leg In WT 3" x 12.5" #60
T Section on One Side WT 3" x 12.5" #28
Rectangular Hollow Section 3-1/2" x 1-3/4" 3/16"
Square Hollow Section 2-1/2" x 2-1/2" x 1/4"
Channel Leg Out C 6" x 13 #24
Channel Leg In C 6" x 13 #33
S Beam Easy Way S 6" x 17.25 #25
WF Beam Easy Way W 4" x 13 #50
Tube 4" SCH10# 55"
Tube 3" SCNN.40"
Rolling Speed 23 FPM
Rolls 250 mm
Shafts 85 mm
