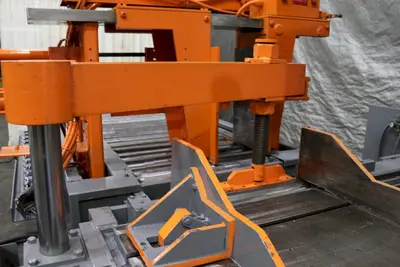

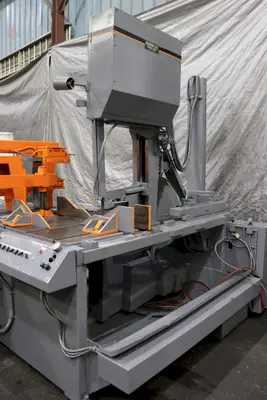

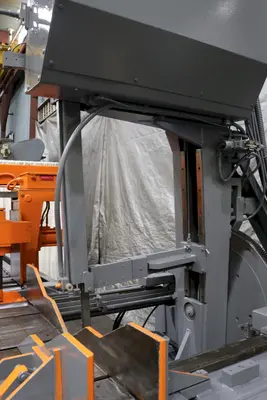

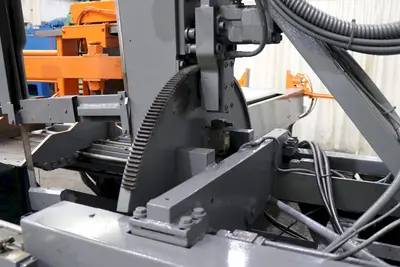

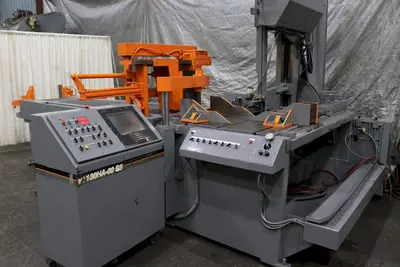

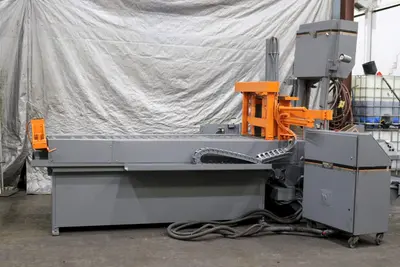

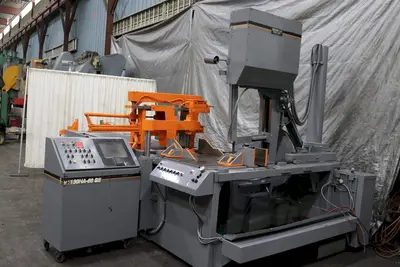

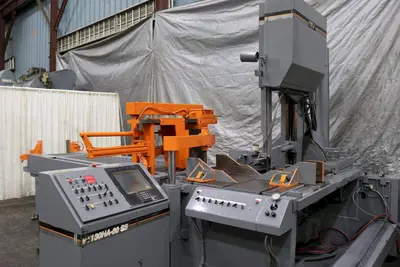

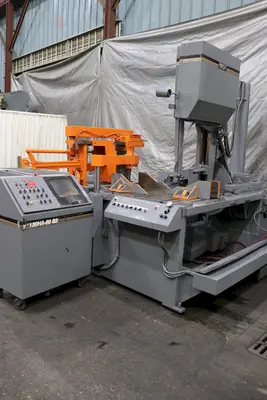

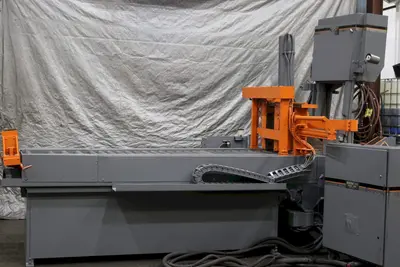

20" X 24" HEM MODEL VT130HA-60SS VERTICAL SAW

Equipped With
20" X 24" HEM MODEL VT130HA-60SS VERTICAL SAW
SERIAL NO. 955906  NEW 2006
SPECIFICATIONS:
BLADE LENGTH ........... 1.5 X 19.0 X .050
CAPACITY, 90 DEGREES ... 20" H x 24" V
CAPACITY, 45 DEGREES ... 20" H x 16" V
CAPACITY, 60 DEGREES ... 20" H x 10" V
GUIDE ARM .............. POWERED
BLADE TENSION .......... POWERED
BLADE SPEED ............ 75 TO 400 SFPM, WITH LED READOUT

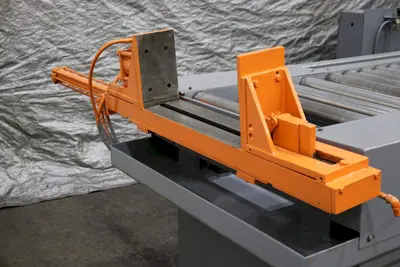

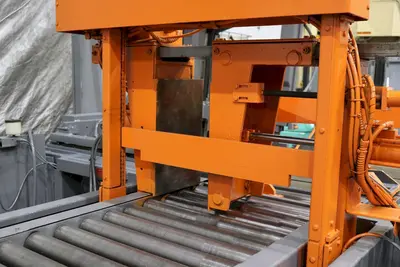

POWER FEED VICES ....... 0" TO 48" STROKE BAR FEED WITH MULTI STROKE

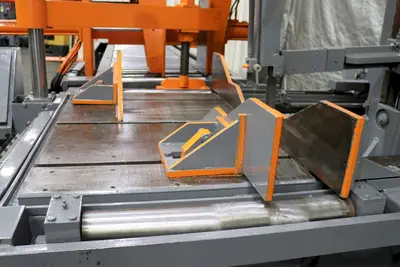

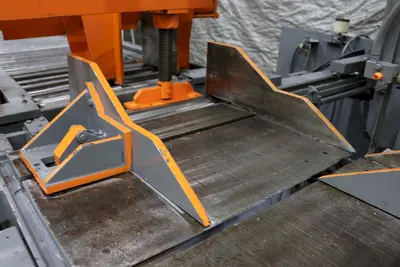

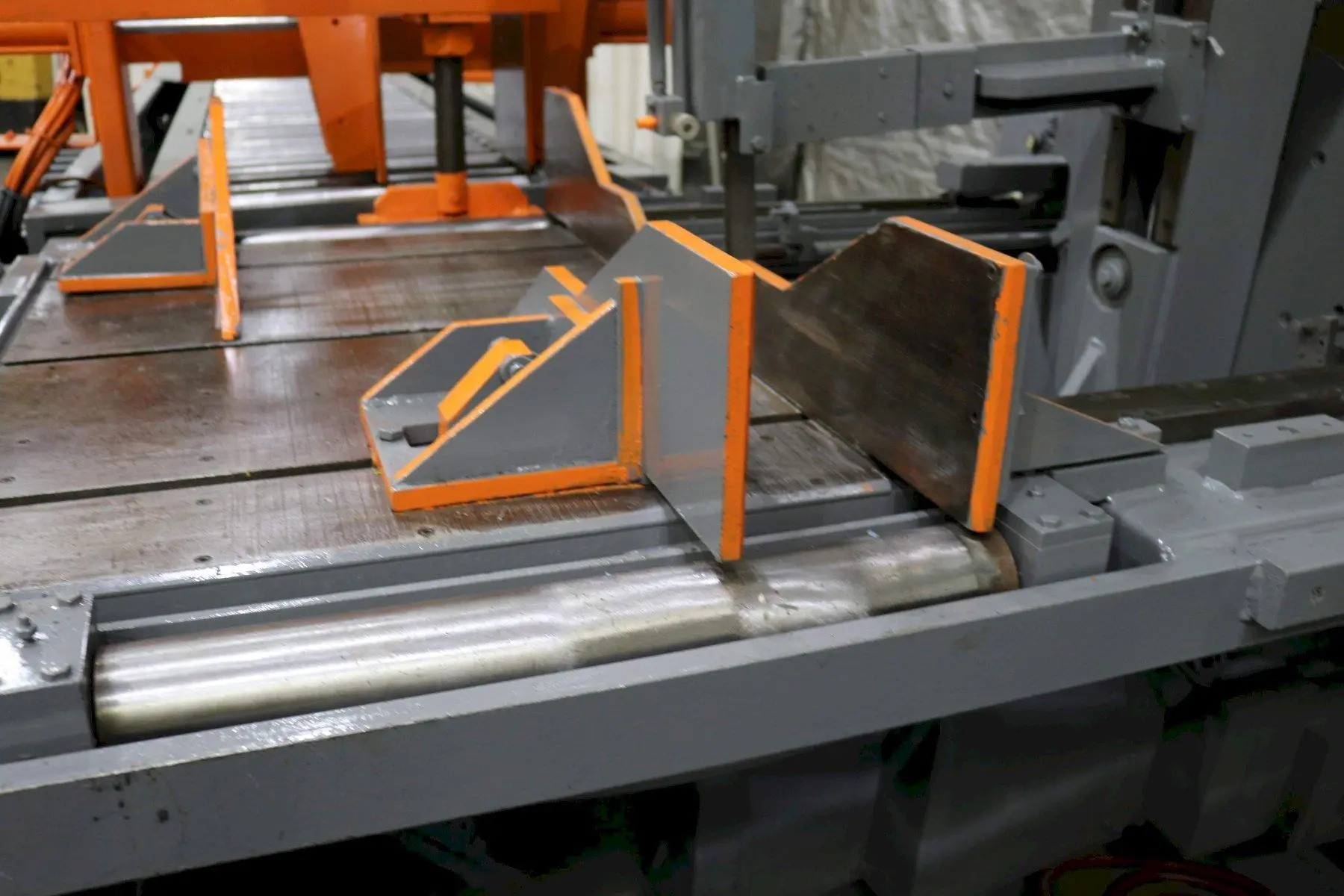

NESTING CLAMPS ......... YES
TABLE LIFT ............. IN AUTOMATIC MODE
PROGRAMMABLE TILT ...... 60 DEGREE MAXIMUM, LEFT OR RIGHT
MATERIAL JOG ........... YES
CHIP CONVEYOR .......... POWERED
COOLANT SYSTEM ......... FLOOD STYLE
CONTROL ................ ALL FUNCTION, SWING AWAY BOX
ARM CANT ............... 4 DEGREE
HYDRAULIC MOTOR ........ 5 HP
