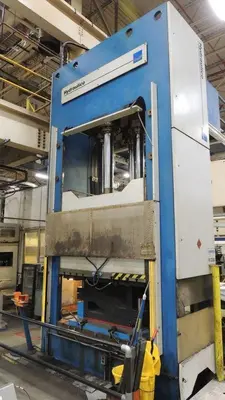

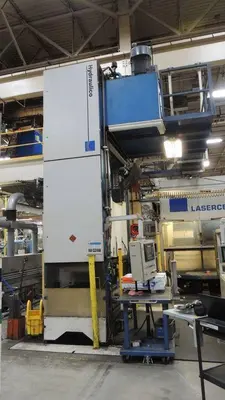

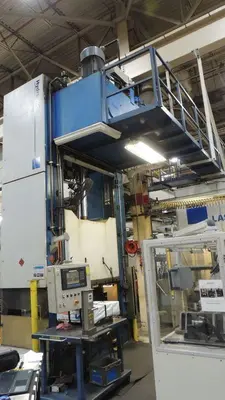

HYDRAULICO 330 TON 300/100/15/1830-1220 HYDRAULIC PRESS

Equipped With
HYDRAULICO 330 TON 300/100/15/1830-1220 HYDRAULIC PRESS
New 1997
SPECIFICATONS:
45" Stroke.
65" Daylight.
72.90" x 48.61" Bed.
72.90 x 48.61" Ram.
3000 KN Max Pressing force.
T Slots Ram and Bolster.

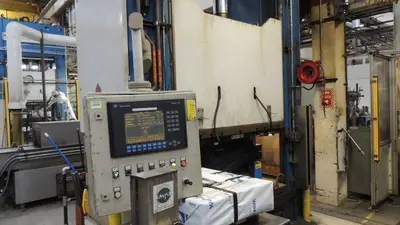

Allen Bradley Panel View 1000 Controls.
Palm buttons.

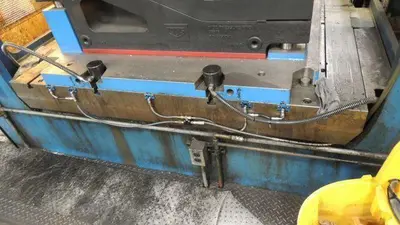

Hydraulic Die clamping.
New 1997.
Windows.
Descriptions:
Max Main Ram Force 330 US Ton
Speed of Approach 800"/min
Speed of Return 800"/min
Speed of Press 0-151"/min

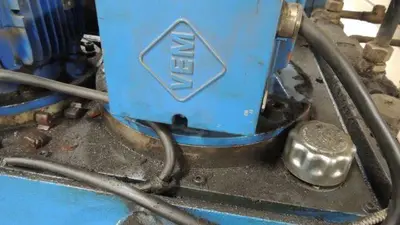

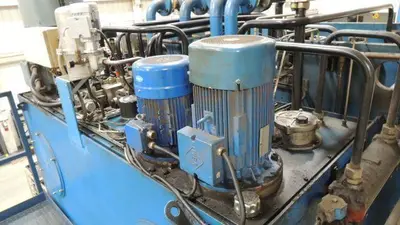

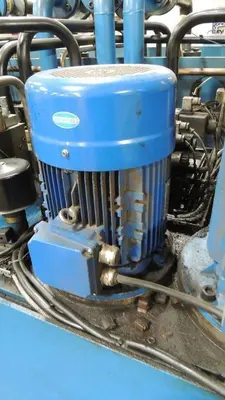

Motors:
              55 kW, 1700 RPM
              3x480V, 60Hz
              11 kW, 1700 RPM
              3x480 V, 60Hz
              5,5 kW, 1700 RPM
              3x480 V, 60 Hz
Description of Cushion:
              Max Cushion Force 110 US Ton
              Stroke fo Cushion 24"
              Cushion Area 55x33"
              Upstroke Speed 364"/min
Description of Knockout:
              Max Force Knockout 16.5 US Ton
Miscellaneous:
              Total Height 287.4"
              Total Width x Depth 111x105"
              Height of Bed Area 23"
              Weight 39.9 US Ton
