Equipped With

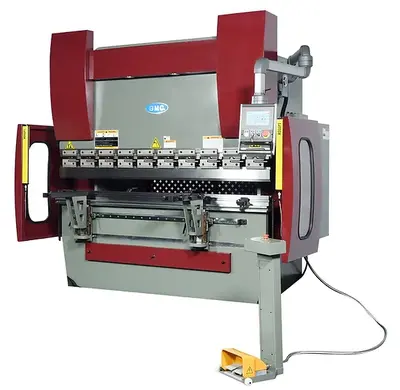

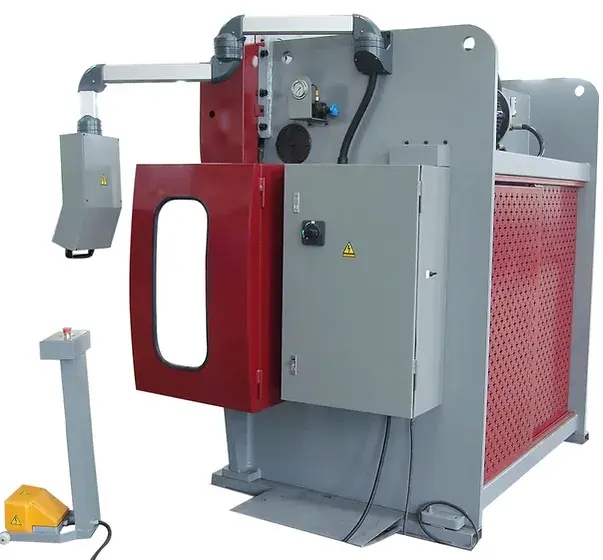

NEW 70 TON X 6' GMC MODEL HPB-7006 HYDRAULIC PRESS BRAKE
ISO 9001 certified
Meet OSHA and CE safety standard
ESA (Italy) Model 625, 2 Axis CNC Controller
Die library, offline programming, stores thousands of programs
Programmable Angle/ Angle Correct
Germany Rexroth hydraulic system
Yaskawa Servo motor and Drives
Schneider electrical components
Hydraulic crowning
All steel construction for maximum rigidity
Hydraulic logic system centrally located and quiet
Safety type foot pedal with handle and E-stop switch
Safety 24V low voltage & overload protection
One year industrial warranty for parts
STANDARD EQUIPMENT
ESA (Italy) Model 625, 2 Axis CNC Controller
(2) 24” front support arms, Quick Release for easy positioning
Quick release segmented (American Style Tooling) punch holder

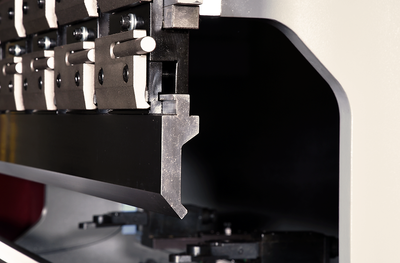

Full Length Gooseneck Punch HRC 50 ( Punch is rated for 10 gauge and lighter .062” radius punch) Additional Tooling may be required for thicker materials and purchaser’s specific products/parts - Ask your dealer for custom tooling quotes)
Full Length Vee Die with 6 assorted sizes HRC 50
Lntech Light Curtain System
Side and Back Safety Fence
Movable Foot Pedal with Estop meet OSHA safety standard
OPTIONAL EQUIPMENT
For ¼” tooling: Need single V die holder $1,595.00
4’ of punch and 2.5” single V Die , Flame hardened with safety tang $2,550.00
On-site training, one day…………………………….. $4995.00
Maximum Pressure
70 Tons
Bending Lenght Capacity
80" (6'8")
Distance Between Uprights (housing)
63"
Ram Stroke Travel
Cylinder Travel Adjustment (max)
6"
3 1/8"
Table Width
6"
Distance Between Table and Ram
Max Stacked Tooling Height
15 1/4"
8-1/2"
Throat Depth
10"
Back Gauge Distance
24"
Back Gauge Repeatability
.0039"
Y-Axis Repeatability
.0039"
Approach speed, inch / second
Working speed, inch / second
Return speed, inch / second
3.14”
0.35”
2.36”
Main motor:
Servo motor for back gauge:
Servo motor for bending angle
setting
7-1/2 HP, 3 Phase 30 AMP
Prewired: 220VAC (+/- 10%)
1 HP, 3 Phase
220VAC (+/- 10%)
1/2HP, 3 Phase
220VAC (+/- 10%)
Hydraulic oil tank capacity:
Recommended Oil:
52 Gal.
Hydraulic Oil Shell #68HD
Machine weight:
Machine size, L x W x H:
Shipping Dimensions:
8,650 LBS
103" x 63" x 87”
109"x66"x98"
Warranty for Rotary Phase Convertor Users : Electrical Parts Warranty is not available if A Rotary Phase Convertor is used. Mechanical parts warranty only
Note: the following models do not work with rotary phase converters:
All EPS models, HS-0825E,HS-0425E, HS-0625E,HS-1010E, HS-1025E, HBB-1010NC, GML-(ALL LATHES)
HPB-4504CNC, HPB-7006CNC, HPB-7006CNC-3R, and HPB-3305CNC
These models listed above cannot run on any phase converters, Warranty will be voided.
GMC will pre-wire the Phase converter to our machine and it is ready to use.
